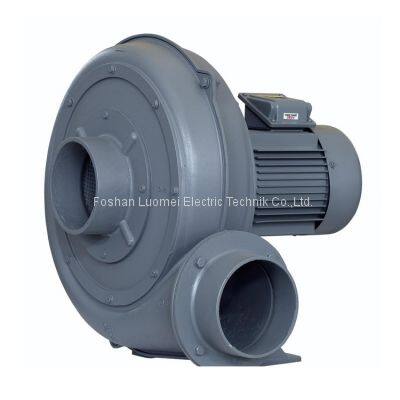

PF aluminum alloy low pressure centrifugal blower fan

Product Details

Product Description

Product Description
Features:
1. Light weight, medium pressure, big volume, low noise.
2. Aluminum alloy material, greatly reduce weight, achieve the goal of light weight.
3. Design ( 1 HP motor for I . E. C above ) , full close outer fan type aluminum frame, motor axis of special design, can be suitable for long time use, high temperature resistance 120°C, if you have special request, we can customize temperature resistance 200°C
4. Special blade design, unilateral opening without blocking.
5. Special air damper, can adjust the airflow, easy to operate (CX) TB) HYB applicable.
6. The air inlet and outlet of the fan are designed independently,optional reducing pipe,docking use,the air outlet can choose four directions,the motor can be left or right.
Other main model (50/60Hz)
PF75-02, 1/3 phase, 0.2KW, 220V or 380V, max airflow 5m3/min@50Hz / 6m3/min@60Hz, max pressure 0.5kpa@50Hz/0.7kpa@60Hz, inlet 100mm outlet 100mm, 10KG
PF100-05, 1/3 phase, 0.4KW, 220V or 380V, max airflow 8m3/min@50Hz / 10m3/min@60Hz, max pressure 1.0kpa@50Hz/1.2kpa@60Hz, inlet 100mm outlet 100mm, 13KG
PF125-1, 1/3 phase, 0.75KW, 220V or 380V, max airflow 14m3/min@50Hz / 17m3/min@60Hz, max pressure 1.1kpa@50Hz/1.4kpa@60Hz, inlet 125mm outlet 125mm, 17KG
PF150-2, 1/3 phase, 1.5KW, 220V or 380V, max airflow 28m3/min@50Hz / 33m3/min@60Hz, max pressure 1.3kpa@50Hz/1.9kpa@60Hz, inlet 150mm outlet 150mm, 30KG
PF150-3, 3 phase, 2.2KW, 220V or 380V, max airflow 33m3/min@50Hz / 37m3/min@60Hz, max pressure 1.6kpa@50Hz/2.5kpa@60Hz, inlet 150mm outlet 150mm, 33KG
PF200-5, 3 phase, 3.7KW, 220V or 380V, max airflow 63m3/min@50Hz / 71m3/min@60Hz, max pressure 2.6kpa@50Hz/3.8kpa@60Hz, inlet 200mm outlet 200mm, 49KG
