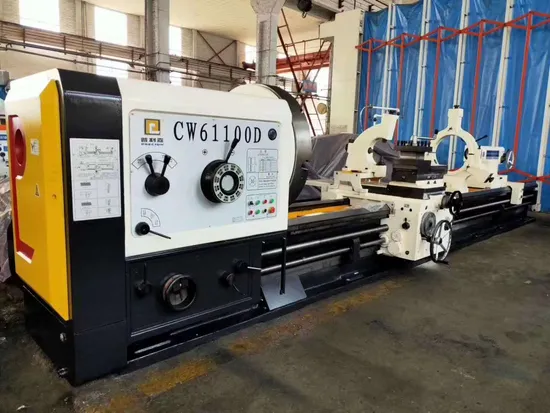

Cw61100d-9m Conventional Big Lathe Heavy Duty Lathe 6tons Loads

Product Description

CW61100D
These lathes can perform to turn end-faces, cylindricl surfaces and
internal holes of various parts as well as metric,inch,module and pitch threads.The top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed of the carriage with the top slide feed,moreover,the machines may be used for drilling,boring and trepanning.
They are characteristics of power,high spindle speed,high rigidity.The various ferrous and non-ferrous metals parts may be turned through the heavy cutting by carbon alloy tools.
Main Specifications and Features
Main Specifications and Features

SPECIFICATION		Model
		CW611OOD
Max.swing diameter over bed		1040mm
Max.swing diameter over carriage		650mm
Max.swing diameter on gap		1500mm
Width of bed		755mm
Max.length of workpiece		9000mm
Loading weight between centers		6t
Spindle nose		A15(1:30)
Sindle bore diameter		130mm
Taper of spindle bore		Metric No.140#
Range of spindle speed		clockwise rotation 3.15-315r/min, 21kinds, counter-clockwise rotation 3.5-290r/min, 12kinds
Spindle front bearing inner diameter		200mm
Longitudinal feeds range		0.1-12r/min 56 kinds
Transversal feeds range		0.05-6mm/r 56kinds
Rapid speed	Z-axis	3740mm/min
	X-axis	1870mm/min
	upper toolpost	935mm/min
Metrec threads range		1-120mm 44kinds
Inch threads range		3/8-28 TPI 31kinds
Module threads range		0.5-60mm 45kinds
Pitch threads range		1-56TPI 25kinds
Taper of tailstock sleeve		Morse NO.80
Diameter of tailstock sleeve		160mm
Travel of tailstock sleeve		300mm
Main motor power		22kW
Rapid motor power		1.5kW
Coolant pump power		0.125kW

Stand Accessories
1. four-jaw chuck F 1000mm 1set 2. steady rest F70--480mm(for more than 2m) 1set 3. follow rest (for more than 2m) 1set 4. Morse 6# centers 1set 5. center sleeve 1set 6. tools 1set 7. foundation screws 1set
Special Accessories
1. steady restF 400--700mm 2. four-jaw chuck F 1250mm 3. Taper-turning device 4. Chasing dial device 5. Inch lead screw, 6. levelers 7. roller support (opened steady rest)
