130ton Injection Molding Plastic Injection Plastic Plastic Production Plastic Molding Small Plastic Injection Small Injection Molding Machine

Product Description

Products Description

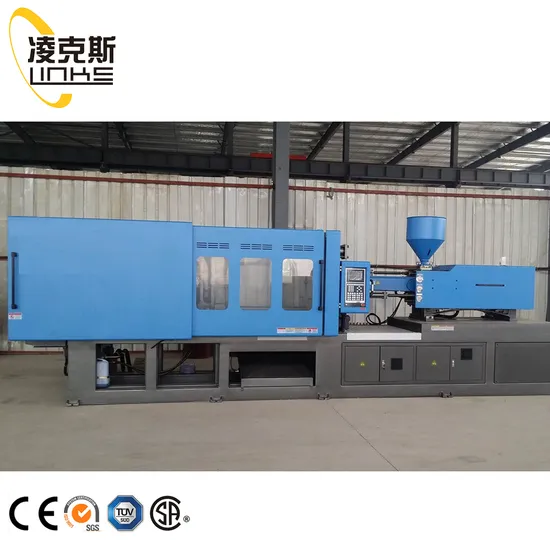

Horizontal Hydraulic Type Injection Moulding Machine For Plastic Products *We supplied clamping force ranges from 98ton to 3400ton injection molding machine. besides, we also have special machine for PVC,PET, Variable Pump, clear double color, servo-motor machine,high speed injection machine.

Technical Parameter :Injection Molding Machine
Model	Clamping Force	Shot weight A/B		Heat power	Pump power	Oil tank capacity	Dimensional	Weight
BST-1000A	1000KN	12	16	7.6KW	11KW	180L	4.3*1.5*1.6M	3.4t
BST-1320	1320KN	18	20	8.2KW	13KW	200L	4.5*1.6*1.7M	3.9t
BST-1400	1400KN	23	25	8.2KW	13KW	220L	4.8*1.6*1.7M	4.2t
BST-1650	1650KN	28	32	8.2KW	15KW	250L	5.0*1.6*1.7M	5t
BST-1800	1800KN	33	37	11KW	15KW	250L	5.3*1.6*1.8M	5.5t
BST-2050	2050KN	41	47	11.6KW	17KW	270L	5.4*1.6*1.8M	6t
BST-2300	2300KN	54	59	11.6KW	18.5KW	300L	5.7*1.8*2.0	6.5t
BST-2600	2600KN	65	69	15.5KW	25KW	350L	6.1*1.7*1.8	8t
BST-3000	3000KN	70	76	15.5KW	25KW	370L	6.5*1.8*1.8	9t
BST-3400	3400KN	77	82	17.5KW	30KW	400L	6.7*2.0*1.9	10.8t
BST-3850	3850KN	10	10	17.5KW	30KW	400L	7.0*2.2*2.0	11.8t
BST-4500	4500KN	14	15	20.5KW	37KW	450L	7.3*2.3*2.4	13.8t
BST-4800	4800KN	15	16	23.4KW	40KW	600L	8.3*2.2*2.2	16.2t
BST-5200	5200KN	19	21	28.1KW	43.5KW	750L	8.6*2.2*2.3	20t
BST-5800	5800KN	22	24	28.1KW	48.5KW	850L	8.75*2.2*2.3	21.8t
BST-6500	6500KN	27	28	37.1KW	55KW	1000L	9.2*2.2*2.4	26t
BST-7500	7500KN	38	39	40.9KW	67KW	1200L	10.7*2.3*2.7	38t
BST-8500	8500KN	42	43	42.5KW	74KW	1300L	11*2.4*2.8	45t

Details Images
Clamping Unit
5-point twin toggle clamping system by modular optimization software designing.Strong clamping with rapid and stable, tomeet the strict clamping condition.
Mould height adjustment by hydraulic driven gear system with rapid and stable.
Automatic mould height adjustment as per the setting clamping force(optional).
Injection Unit
BaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection,
Five_star Hydraulic motor with big torque,
Ensure the excellent plastic molding condition.
Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
Control Unit
Imported computer special for Injection Molding Machine with multiple functions and precise control processing.
World famous electrical components and high quality circuit hardware with stable and reliable running.
application:
Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close
texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture,
Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection
molding machine no matter in quantity or variety occupies an important position.
FAQ 1) Can your factory provide the whole plant from A to Z?
A: Yes, we can provide the complete plant, from bottling making plant, water purification plant, to filling packing plant.
2) Are all machinery your factory made?
A: Our factory make the water purification and filling packing plants. We do not make the bottle making machinery,
we have good quality bottle making machinery partner, and we provide to customer same long warranty time and good after service.

3) How can I know the machinery quality before I order?
A: Frist, we will invite you visiting our factory to check the machines quality, and show the machines running for you in our factory.
4)What certificates you can provide?
A: Our factory provide the CE, SGS, ISO, and accroding to some countries, we also can provide the Pvoc, Coc, Soncap...ect
5)Can your factory make the bottle drawing, workshop layout, and labels for us?
A: We can help customers design their own bottle shape, workshop layout and label drawings, these jobs are free charge.
(Workshop need customer to provide the size of factory)
6)Installation and Training Time
A: We have professional engineer for oversea installaion and training, they can speak English, and have much experience oversea work.
