Electric Mill Roll Stand Machine for Corrugated Board Production Line
| US$3,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
YK-1800
Condition
New
Certification
RoHS, ISO 9001:2000, ISO 9001:2008, CE
Automation
Semi-Automatic
Suitable for
Recycled Material, Paper, Corrugated Cardboard
Paper Thickness
Cardboard
Item
Corrugated Cardboard Electrical Mill Roll Stand
Size
1600mm
Type
Packaging Line
Name
Carton Box Making Machine
Function
Corrugated Box Machine
Usage
Making Corrugated Cardboard
OEM
Accept
Speed
60m/Min
Machinery Test
Provided
Application
Food, Beverage, Commodity, Medical, Chemical
Voltage
380V/415V/440V
Delivery Time
30days
Use for
2 Layers Single Facer Line
Transport Package
Standard Packaging
Specification
YK-1800
Trademark
YIKE GROUP
Origin
China
HS Code
84413090
Production Capacity
50sets/Month
Product Description
Product Description Specification:| Working Width | YK-1400SFL 1400mm | YK-1600SFL 1600mm | YK-1800SFL 1800mm | |
| Heating method | Steam heating | |||
| Design speed | 100-120m/min | |||
| Economical speed | 80-100 m/min | |||
| Compress-air pressure | 0.4-0.9MPa | |||
| Flute type | Standard flute | UV Flute | ||
| single facer line | Standard spec. | A,B,C,E,F | ||
| For other types and models, we can produce as customers' requirements. | ||||

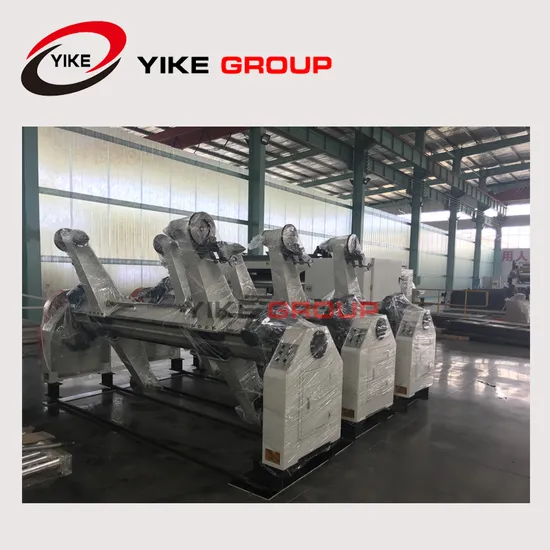

Electric mill roll stand
Structural features:
1, Symmetrical structure can also install two bundles of paper at the same time, Paper can be used for non-stop for a job; Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.
2, each shaftless mill roll stand is equipped with two pieces of paper guide, two sets of the paper car; paper guide the use of channel 14 and the guide post-weld, paper car adopt 10mmwelded stell, the length of the track is 4500mm.
3, manual disc brake, add screw following
4, electric elements centralized control the electric elements, expand chuck.
Technical parameters:
1, Back stands action mode: mechanical electric operation
2,the range of paper jams:maximum:1600mm minimum:600mm
3, the diameter of paper jams:maximum:¢1400mm minimum:¢400mm
4, Unilateral maximum load:maximum2000Kg
5, Powered motor parameters:
Paper jams motor550W×4set 380V 50HZ short(S2)working standard
lift motor 1.5Kw 380V 50HZ short(S2)working standard
