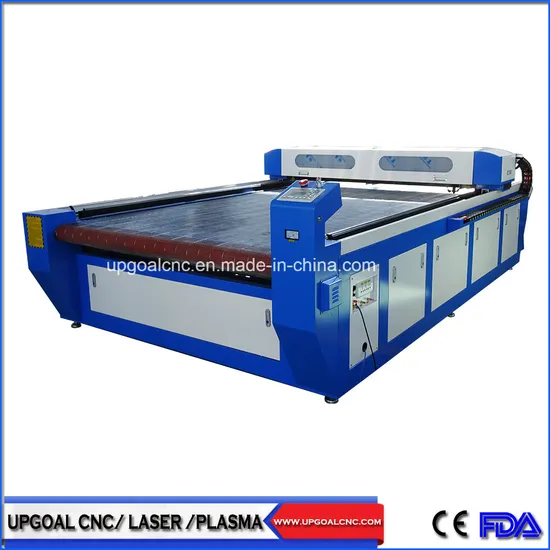

Automatic Feeding Fabric / Sponge CO2 Laser Cutting Machine 1600*2600mm

Automatic Feeding Fabric / Sponge CO2 Laser Cutting Machine 1600*2600mm

US$2,400.00-3,310.00 1 Piece (MOQ)

Basic Info.

Model NO.
UG-1626L
Technical Class
Continuous Wave Laser
Applicable Material
Nonmetal
Structure Type
Lathe Bed
Laser Classification
Gaseous Laser
Laser Technology
Laser Control Fault Cutting
Working Area
1600*2600mm
Rated Laser Power
Reci W6 130W
Working Table
SUS304 Stainless Steel Strip Auto Feeding Working
Driver and Motor Type
Yako Three Phases Stepper Motor and Driver
Guide Rail
Linear Square Guide Rail
Transmission Type
Belt Transmission
Cutting Speed
0-10000mm/Min
Control System
Ruida 6442
Software
Rdworks V8
Cooling
Cw-5000 Industrial Chiller
Transport Package
Plywood Case
Specification
3850*2250*1450mm, 900kgs
Trademark
UPGOAL
Origin
China
HS Code
8456110090
Production Capacity
250set Per Month

Product Description


Automatic Feeding Fabric / Sponge Co2 Laser Cutting Machine 1600*2600mm UG-1626L

Applications
Automatic feeding laser cutting machine is suitable for engraving and cutting of fabric and leather in garment, embroidery, toy, handbag, glove precision cutting of decoration board and non-mental board, like acrylic and MDF board in ads, upholstery, electrical appliance and plastic industry, cardboard box industry, rubber printing plate engraving. Ultra-thick material surface carving.
Features
Auto material-feeding platform
Caterpillar band type auto material-feeding platform with new type flat flex belts with strong absorption for wool fabric, realizing continous feeding and cutting with with less labor and material.

Auot edge cutting without rough edge, burr.
With Oneline control system, Work can be loaded from the Cloud.
Fabric Presser
Fabric is adsorbed onto the working table ensured material is fed steadily without creases curled edges

Laser Head
Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.
Working Table
SUS304 stainless steel Strips: With oxidation treatment and low reflection ratio Ensured cutting quality.
Laser Tube
Adopted famous Reci W6 Co2 laser tube, rated power: 130W, peak power: 150W, long time time and stable.

Beam Path System
Adopting imported focus lens with high lusciousness and mirror with high reflective ensure stable power transference.
Motion System
Imported High precision,low friction force and stand wear and tear linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System
Advanced USB port RuiDa 6442 special auto feeding control system with large inner memory device and Fast rectilinear cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.
Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the desgins directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.
Rationalized placement of the electronic parts Optimized heat dissipation effect.

Cooling system
Industrial chiller CW-5000
Technical Parameters

Effective working area
1600*2600mm
Laser Type
Co2 sealed-off laser tube
Laser tube power
W6 series, Reci, Beijing
(Rated power: 130W, max. Power: 150W)
Working table
SUS304 stainless steel strip auto feeding working table
Driver mode
3 phases stepper motor and Driver, Yako brand
Guide rail
Linear square guide rail ( Hiwin,Taiwan)
Transmission
Belt transmission
Control panel
English
Laser output control
1-100% software setting
Engraving speed
0-60000mm/min
Cutting speed
0-10000mm/min
Control system
RuiDa 6442
Control software
RDWorks V8
Design software when delivery
CorelDraw
Control panel
DSP offline
Resolution accuracy
< 0.01mm
Location precision
< 0.01mm
Highest scanning accuracy
2500DPI
Type of cooling
Industrial chiller CW-5000
Water protection system
Yes
Blow-off system
Air pump for the laser head
Air blower for the machine
Biggest scanning accuracy
2500DPI
Working temperature
0-45 °C
Operating humidity
5-95% (without condensed water)
Voltage
AC 220V /110V, 50/60Hz, single phase
Supporting picture format
PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Certificate
CE/FDA


Reference Working Videos
https://upgoalcnc.en.made-in-china.com
Reference Sample Photos

For more information, just feel free to contact us!
Jinan Upgoal Mechanical Equipment Co.,Ltd
upgoalcnc.en.made-in-china.com, Mob: +86-13869132173
