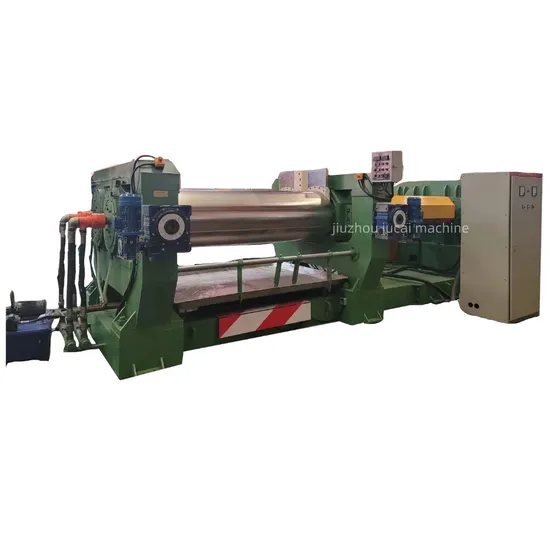

Versatile Rubber Sheet Mixing Mill for Industrial Applications

Product Description

Versatile Rubber Sheet Mixing Mill for Industrial Applications Product Description
Machine Configuration 1. Driving Mode: Left driving and right driving
2. Speed Ratio of Rollers: 1:1.08, 1:1.17, 1:1.27
3. Roller Type: Hollow smooth roller, drilled smooth roll, hollow grooved roll
4. Gap Adjustment Device: Manual type, motorized type, hydraulic type
5. Stock Guide: Fixed type, manually moving type, turn over and hydraulic moving type
6. Safety Device: Mechanical safety protection device, IR sensor type device
7. Emergency Stop Device: Emergency stop button, trip bar rope, foot switch, grating, and riding blanket
8. Gearbox: Hardened teeth single shaft gearbox, hardened teeth double shaft gearbox
9. Motor: DC motor or AC motor Product Application This machine is composed of rollers, ZQ bull gearbox (except XK-160), electrical cabinet, nylon bush transmission device, main motor, etc. It is extensively utilized for mixing, warming, and sheeting rubber, ensuring high efficiency in industrial processes. Main Features 1. The roller is made from alloy chilled cast iron, featuring a hard and wear-resistant surface with a hardness rating of HRC68-75.
2. The roller ends are supported by roller ball bearing bushes, providing smooth operation, energy efficiency, low noise levels, and extended equipment longevity.
3. The roll gap adjustment is manually controlled, ensuring simple and hassle-free operation.
4. An overloading protection device is equipped to safeguard the main components from potential damage.
5. The machine employs a single drive type transmission structure with nylon pin coupling to prevent damage due to transmission overload.
6. The base is an integral type with a closed transmission mode, ensuring safe and user-friendly operation.
7. Safety is prioritized with the installation of an emergency button and pulling rope.
8. Four sets of lubrication devices are installed, suitable for grease lubrication.
9. The machine features a PLC control cabinet, compatible with local industrial voltage and frequency requirements. Product Parameters

Parameter/model		XK-160	XK-250	XK-300	XK-360	XK-400
Roll diameter(mm)		160	250	300	360	400
Roll working length (mm)		320	620	750	900	1000
Capacity (kg/batch)		4	15	20	30	40
Front roll speed (m/min)		10	16.96	15.73	16.22	18.78
Roll speed ratio		1:1.21	1:1.08	1:1.17	1:1.22	1:1.17
Motor power (KW)		7.5	18.5	22	37	45
Size (mm)	Length	1104	3230	4000	4140	4578
	Width	678	1166	1600	1574	1755
	Height	1258	1590	1800	1800	1805
Weight (KG)		1000	3150	5000	6892	8000

Parameter/model		XK-450	XK-560	XK-610	XK-660	XK-710
Roll diameter(mm)		450	560/510	610	660	710
Roll working length (mm)		1200	1530	2000	2130	2200
Capacity (kg/batch)		55	90	120-150	165	150-200
Front roll speed (m/min)		21.1	25.8	28.4	29.8	31.9
Roll speed ratio		1:1.17	1:1.17	1:1.18	1:1.09	1:1.15
Motor power (KW)		55	90/110	160	250	285
Size (mm)	Length	5035	7100	7240	7300	8246
	Width	1808	2438	3872	3900	3556
	Height	1835	1600	1840	1840	2270
Weight (KG)		12000	20000	44000	47000	51000

FAQ
1.Are your company a trading one or a factory? Factory + trade (integration), 30 years focusing on rubber machine design and production . OEM is also acceptable for us. 2.How to choose the most suitable products? Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification. 3.Do you accept customization service? Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs. 4.How about your warranty? Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service. 5.How about the packing for machine, is it safely protected during transportation? Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage. 6.What is the order process? Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
