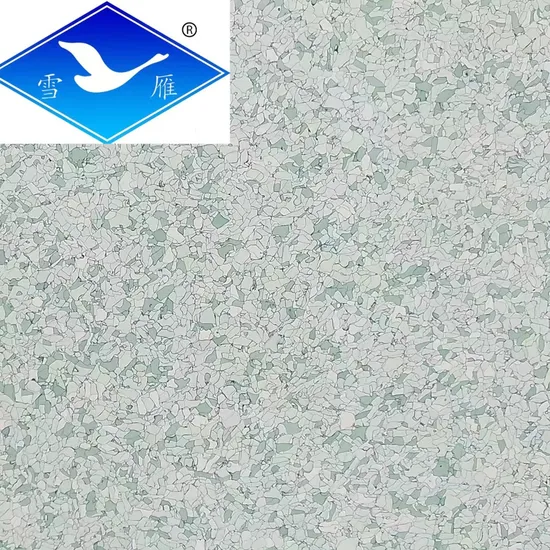

Anti-Static Conductive Vinyl Flooring Size 914.4mmx914.4mmx3.0mm

Product Description

Product Description
Anti-Static Floor Product Description
The advantages of ESD flooring tiles can be summarized as follows:
1,Electrostatic Dissipation: ESD flooring tiles utilize an electrostatically conductive network, which ensures permanent conductive properties. This feature allows the tiles to effectively dissipate static electricity, preventing electrostatic discharge (ESD) that could potentially damage sensitive electronic components or equipment.
2,Material Composition: ESD flooring tiles are typically made from polyvinyl chloride (PVC) resin, conductive materials, stabilizers, plasticizers, pigments, and other auxiliary materials. This combination of materials provides a durable and reliable flooring solution that can withstand heavy foot traffic and other types of wear and tear.
3,Decorative Effect: ESD flooring tiles are designed with a network pattern, offering an aesthetically pleasing and decorative effect. This makes them suitable for various environments, including offices, laboratories, cleanrooms, and other areas where both functionality and appearance are important.
4,Safety and Protection: ESD flooring tiles help create a safe working environment by preventing the accumulation of static electricity. This is particularly important in industries such as electronics manufacturing, data centers, and healthcare facilities, where static discharge can cause equipment failure or harm to personnel.
5,Easy Installation and Maintenance: ESD flooring tiles are typically easy to install, allowing for quick and efficient flooring upgrades or replacements. They are also relatively easy to clean and maintain, contributing to their long-term cost-effectiveness and suitability for various industries.
Product Parameters

Thickness	SJ/T11236-2020 SO 24346(EN428)	2.0,2.5,3.0mm
Electrical Resistance	SJ/T11236-2020 EN 1081	1*10-1*10Ω 10-10Ω	1*10-1*100 10-100
Statiing Voltage	AATCC-134	50V	100V
	SJ/T 10694-2006 EN1815	<100V <2 KV
Body Voltage	ANSI ESD STM97.2	<100V
StatIc Decay	GJB3007A-2009 Federal Test Method 1018 Method 4046	≤2(Sec) 0.01(Sec)
Resistance To Wear	SJ/T11236-2020 EN660-2	≤0.02 g/cm² P
Fire Resistance	SJ/T11236-2020 GB8624-2012 ASTM E648:2009a EN13501-1	FV-0 B(B-51,t0) Class Bt-S1
Dimensiona	ASTM F2199 ISO 23999-2018(EN434	≤0.05 % ≤0.05 %
Slip Resistance Wet	DIN 51130	R9
Residual Indentation	GB/T4085-2015 ISO 24343-1(EN433)	0.15mm≤lg≤0.40mm 0.01mm
Color Fastness	SO 105-B02	≥6
Chemical Products Resistance	EN IS026987(EN423)	OK
Toxic Testing	GB18586-2001 EN 71-3	OK
TVOC After 28 Days	SO 16000-6	<10μg/m³

Company Profile
Our Advantage
In China, Jinhai is the only ESD flooring tile manufacturer who use new generation of plasticizer DOTP. This plasticizer is suitable for contact of kids and food, does not contain benzene ring structure (such as phthalate).
We are using "RHPP" technology in production, It is a physical method of rolling raw material mixture in a high-pressure environment, this increases the density of the floor, and produce a wear-resistant and stain-resistant film that closes the pores of floor, so floor does not absorb dirt. After clean or maintenance, carbon fiber won't loss, it ensures the permanent conductive properties. Installation Instructions
Certifications
Certificate
FAQ
FAQ
1.Where are your factory Location?
Wujin Distric , Changzhou city , Jiangsu province , China
2.How many size and thickness for conductive tiles ?
size :600mmx600mm , 610mmx610mm,914.4mmx914.4mm,305mmx305mm
thickness:2.0mm ,3.0mm,2.5mm
3.How many packing quantity and weight? Size:600mmx600mmx2.0mm
25pcs/box, 40boxes/pallet, 13 pallets in total for 20'GP container
39kgs/box, 1560kgs/pallet, Gross weight: 20500 kgs/20'Gp container
9 sqm/box, 360sqm/pallet, 4680sqm for 20'GP
4.What kinds of payment methods do you accept?
T/T, Letter of credit , DDP ,DA, EXW
5.And how do you guarantee that I will get your conductive tiles
above 2 years after selling
6.How many electronic resistance for your tiles?
Conductive tile electronic resistance 10^4~10^6
Anti-static tile electronic resistance 10^6~10^9
