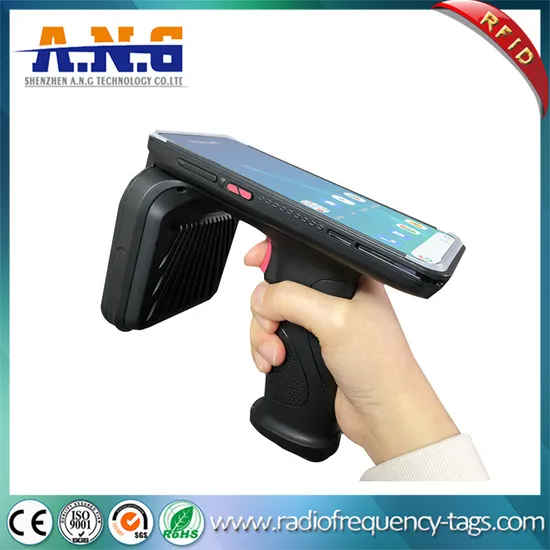

Mobile Computer Android Scanner with NFC/UHF Function for Library Warehouse

Product Description

mobile computer android scanner with NFC/UHF function for Library Warehouse
ANGC80 mobile computer android scanner is with trendy, powerful, original, and professional design. It includesstandard version, medical version and UHF versions, which can be extended up to 13 different versions. It not onlyhas one 4600mAh removable battery, but also supports hot swap battery and pistol battery meanwhile, which allows 24 hours uninterrupted work. ANG insists on original design of high integration and small size, such asbuilt-in UHF module, PSAM etc. With elegaInnovative technology smooth and more efficient operation
ANGC80 is equipped with Octa core 2.0GHz CPU and Android 11 OS with GMS certified, which is smooth, more secure and super experience
With 4GB RAM+64GB ROM large memory, it works smoother multitasking
Highly integrated scanning, UHF RFID, NFC, PSAM in such small impact size
A variety of scanning engine options to deal with all kinds of impossibilitie
Rebuilt classic 360°
super protection
strong and durable
IP67, 1.5 m drop resistant, special designed for harsh environments
It is easy to deal with during bad weather such as rain, snow and fog
Innovative batteries 24 hours full day working freely
4600mAh large-capacity battery which can last for more than 12 hours
Removable battery, supporting hot swap battery and 24hours never power off
Light and large vision with easy and free hand contro
5.72 inch full-view HD touch screen for smooth vision and easy reading
It can be used smoothly in wet hands, gloves and complex environments
Light device body can be operated by one hand comfortable and convenient
Highly integrated design for widely industry applicationsBarcode/RFID/PSAM/NFC/CameraComprehensive management software Customized ultimate experience
ANG self-owned iVYAi management system, successful to achieve all the global devices management
Independently customized loT OS development service kit to offer u the super user experience
ecoding performance and fast reading ability make sure quickly and accurately read on screens, papers and wristbands
Intimate design super user-experience
Only One - click, easily access to required applications
Double MIC design, call quality better
Innovative industry product, highly-integrated temperature measurement and pupil lamp, more focused and professional
High Performance 2D Scanner
ApplicationsC80 series mobile computers are widely deployed in logistics, transport, healthcare, retail, manufacturing, warehouse management, attendance management etc.
Basic Parameters

Size	162X76.8 X 13.9mm
Weight	252g(including battery)
Display	5.72inch 18:9 HD+(1440*720)
Touch panel	Gorillaglass, plated with anti-fingerprint film, supports wet hand operation
Backlight	LED Backlit
POWER	4600mAh , 3.8V removable lithium battery; spare battery(optional): 150mAh More than 8hours working time, and standby time 300hours
SIM	SIM+TF: nanosim+nanosim/TFCard
USB port	Type-c, Support OTG
Network connections	4G/3G/2GsWi-FisGPRS
Notification	CueTone; multi-color led; Vibration
Keyboard	3 virtual buttons: Backs Home,Menu
Audio frequency	A microphone, speaker, receiver

Working environment

Operating temperature	-20ºC to 55ºC
Humidity	5% to 95% (Non-condensation)
Drop specification	Within the working temperature range, it can withstand repeated falls from a height of 1.5 meters to the concrete floor
Roll Specification	Can Withstand 200 times 1.6 ft/0.5 m rolling impact; meets or exceeds IEC
Vibration	Random(10 Hz-30KHz);60 minutes per shaft
Electrostatic protection	+/- 10kv air discharge +/-6kv contact discharge
Protection level	IP67

Wireless Communication

WWAN	Asia + Europeband: GSM:Band2/3/5/8 WCDMA:Band 1/2/5/8 TD-SCDMA: Band 34/39 CDMA:Band BCO TDD-LTE:Band 34/38/39/40/41 FDD-LTE: Band 1/3/5/7/8/20 American band: GSM:Band2/3/5/8 WCDMA:Band 1/2/4/5 CDMA:Band BCO TDD-LTE:Band 40/41 FDD-LTE:Band B1/2/4/5/7/28A/28B
WIFI	Wifi Frequency:2.4GHz&5GHz Protocol:802.11 a/b/g/n/ac/r/e/i Fast Roaming
navigation	Beidoux Glonass,GPS,GalileOxQZSS
Version	Bluetooth 5.0

FAQ

1.No reaction when putting the NFC card close to the device.	Step 1: Please make sure that the card-reading function is opened; Step 2: Check whether the frequency of the card matches well with the protocol; ( Currently, it only supports high-frequency card including MF0,MF1,15693,CPU).
2.The requirement of RFID products with UHF to environment.	Metal and liquid (water) material have a strong interference to the UHF signals ( the closer to the tag antenna, the stronger interference of the signal); It is able to adopt anti-metal tag in the metal environment, however, it still remains hard to solve problems in liquid environment.
3.There is light emitting from the scanning head but fail to scan.	If it fails to scan suddenly in use, the same setting of the scanning head and the barcode to be scanned may possibly result in it. If you change the setting of the scanning head unintentionally, you are supposed to scan other types of barcodes and send the result feedback to Cilico.
4.The left and right scanning button fail to work or only one side button could work	Step 1: Please make sure that the left and right scanning options are opened; Step 2: Close the scanning type APP; Step 3: Try to scan with system scanning option; if it works, then the device is working properly.
5.What am I supposed to do when the reflash process is interrupted?	Step 1: Disconnect USB; Step 2: Take out the battery and install the battery agian; Step 3: Repeat reflash process.
6.The device fails to charge.	Step 1: Change the battery or charge with the USB cable and try to start up; Step2: If it still fails to charge to start up after changing the battery, it is possible that the battery is over discharged. Please keep the charging connection with USB cable, then take out the battery and instsall again, activating the battery by repeating 3-4 times. Try to start up after charging for 30 minutes.
7.Why does the device enter factory mode when it is turned on.	The possible cause is that the volume - key is pressed when the phone is started up. You can press the Volume - key or select Restart and press the power button to restart the phone.
8.What is the best distance for bar code scanning	The optimal scanning distance depends on the size of the bar code. The optimal scanning distance of the large bar code will become longer, while the optimal scanning distance of the small bar code will become smaller. Generally, the optimal scanning distance is between 10-15cm.
9.How do I access the Developer options	In Settings/About Phone, click on the Build number 5 times to exit About Phone and Click on system-Advanced in order to see the developer options.
10.The kind of protocol used by UHF	International standard 18000-6C protocol used
11.How do I view the device version	Enter from device, click Settings - About Phone - Build number
12.How do I restore the device to factory Settings	Device interface click Settings - System - Reset Options - Erase all data(factory reset)
13.Why can't the device recognize the phone card and access the Internet by phone	Step 1:Ensure that the mobile phone card is installed in the SIM card slot Step 2:Ensure that the data traffic switch Settings - Traffic Usage - Carrier-data switch are enabled

Performance Parameter

CPU	Octa-core 2.0GHz
OS	Android 11
Memory	Standard 4GB+64GB (LPDDR4X+EMMC), Option 3GB+32GB/6G+128G
