US$1,200.00-9,600.00
|
1 Set
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
After-sales Service
24 Hours Online Service
Pellet Diameter (mm)
6-10mm
Raw Material Processed
Grass, Rice Husk, Wood Sawdust, Biomass, Straw...
Applicable Industries
Timber/Furniture/Power Plants/Boiler Factories
Usage
Biomass Energy Industry
Name
Wood Pellet Making Machine
After Warranty Service
Provide on-Site Installation
Machinery Test Report
Provided
Video Outgoing-Inspection
Provided
Application
Make Biomass Pellets
Output (Kg/H)
300-500kg/H
Marketing Type
New Product 2023
Transport Package
Wooden Box, Iron Box
Production Capacity
200sets/Month
Packaging & Delivery
Package Size
300.00cm * 610.00cm * 180.00cm
Package Gross Weight
470.000kg
Product Description
Any more info you need for the equipment,please feel free to contact us!
Send me an inquiry and I provide you with professional services!
Product Description

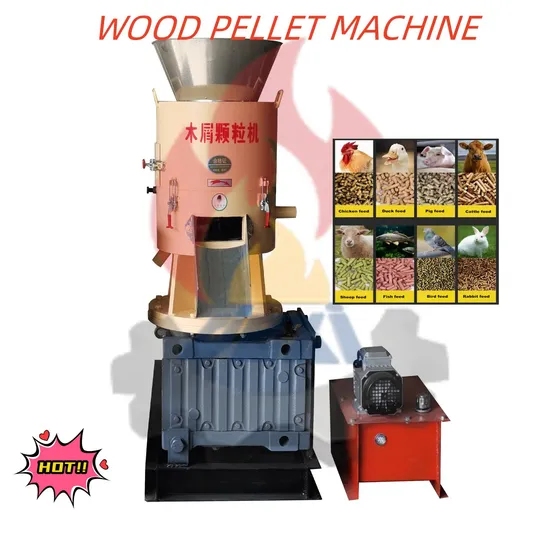

SKJ2-450B Wood Pellet Making Machine Grinding Machine
The flat die Wood Pellet Making Line is good ideal machine for small capacity wood pellet making. It is good at press different kind of biomass material, such as wood sawdust, straw, ground nuts shell, corn straw and other agriculture waste into biomass fuel pellets, this pellet mill also can make fertilizer pellets by press the animal waste.
SKJ series flat die Wood Pellet Making Line using the high efficiency motor to provide the power, motor directly connected with the gearbox, big gearbox inside gears bigand strong good for press hard molding materials and with big pressure for the machine,working more stable and with long life time.
Main superiorities1. Vertical ring die structurc, feeding vertically, easy heating dissipation, long time running continually.
2. Ring die fixed, the roller rotates in the ring die, so no deflection, no shaking, machine running more stably.
3. Double layer stainless steel ring die, up and do wn side. One ring die can be using 2 times by turn it over. Cut
down operating costs.
4. With gear box lubricating system and the roller bearing auto lubr icating system, the machine can operating
continuity. (Can 24 hours no stop working )
5. Whole base d as gear box, inside gears size big, and gear modulus increased , make the gearbox strong and
working stable. We give 3 years guarantee for this type of gearbox.Features1. The flat-die pellet machine can make pellets without belts driven by the shaft. Using high-tech technology, it is much more advanced than the original beltdrive. This machine does not need to add any water to make pellets. It belongs to the one that is dry in and dry out. kind. When manufacturing, we use it for those small-scale farming, and the granules made at the same time can be stored for a long time, and it is not a problem for more than half a year;
2. The flat die pellet machine also plays a sterilizing role in the process of operation. The maximum temperature is 75 degrees, which can kill your microorganisms without affecting the quality of the material;
3. The template and pressure wheel of the flat-die feed pellet machine are made of high-alloy wear-resistant materials, which have the characteristics of long service life, reasonable structurc, firmness and durability.
Product Parameters
Below are the parameters of the machine:
Model
| Power (kw)
| Capacity(kgs/h)
| Weight(kgs)
| Dimension(mm)
|
SKJ2-200B
| 11
| 50-100
| 350
| 1300×500×850
|
SKJ2-250B
| 15
| 100-300
| 500
| 1200×600×1100
|
SKJ2-300B
| 22
| 300-500
| 750
| 1360×600×1150
|
SKJ2-350B
| 30
| 400-600
| 900
| 1600×650×1550
|
SKJ2-400B
| 37
| 500-700
| 1050
| 1800×670×1600
|
SKJ2-450B
| 55
| 600-800
| 1100
| 1900×850×1750
|
SKJ2-550B
| 55
| 800-1000
| 1580
| 2300×1100×1900
|
Related Hot Products
Product picture | Product Line |
| https://deximachine.en.made-in-china.com/product/ZEJUbdgYORpH/China-Flat-Die-Small-Scale-Wood-Pellet-Mill-Feed-Processing-Machine.html |
| https://deximachine.en.made-in-china.com/product/dQfUYRhxRTpj/China-Biomass-Sawdust-Wood-Pellet-Machine-Mill-for-Agricultural.html |
| https://deximachine.en.made-in-china.com/product/imqpwGFJYarj/China-Small-Animal-Poultry-Cattle-Feed-Pellet-Production-Feed-Pellet-Mill.html |
Production photos
Type B has a reducer, which means it has greater pressure, is more safer and more stable, and has a longe service life. The models of these wood pellet machines are all SKJ2-450B, their colors can be customized according to customers' preferences, and they are relatively small, suitable for home use and personal use.
Detailed Photos
The products shown in the figure are B-mold and pressure roller. The intermediate shaft drives the pressure roller to rotate through the pressure roller and press the wood particles.
The picture shows b type flat die and press roll. Its working principle is that the intermediate shaft of the machine passes the press roller, drives the press roller to rotate and compacts the wood chips.
Raw material for making pellet
Flat die wood pellet machine is good at press different kind of biomass material, such as wood sawdust, straw, ground nuts shell, corn straw and other agriculture waste into biomass fuel pellets.
Sucessful Case
We are professional supplier in this industry,with more than 20 years history,all of our products got CE certificate.
We have many sales agent and customer in Asia and Europe market,such as in Poland,Turkey,India,Indonesia,France, Portugal,Bulgaria,Romania...
Packaging & Shipping
For the biomass pellet making machines / complete pellet production line loading, we have rich experence, we know which is the best way to loading them into container and also keep them safty when transfer.
Want more Information
Shandong Dexi Machine Co., Ltd Located at Licheng, Jinan, Shandong Province China. We are professional supplier for the biomass pellet machines and complete pellet production line.
Our products involve, wood chipper, wood sawdust making machine, hammer mill, drum rotary dryer, pellet making machine, pellet cooling machine, pellet packing machine and other equipment, such as animal feed pellet line, organic fertilizer pellet making line.
We also provide design, technology supports, machine inspection service, etc. Cooperating with different manufacturers and
research centers, we provide the pellet making machines with outstanding quality. We have a group of experienced experts and outstanding engineers who do provide the professional service delivery and installation. Based on the client's specific
requirement, we also accept customize design and machine producing order. Through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.
Whatever pellet making machine you need from China, contact: Shandong Dexi Machine Co., Ltd. A one stop shop in the middle of China
FAQQ. What is your payment term?
A: T/T 30% down payment, balance to be paid before shipment.
Q: What is your main market?
A: Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q: What is your delivery time?
A: Producing time depends on which machines you ordered. Roughly all machines we have instock, some new produce produts takes 10 - 30 days.
Q: What documents you can offer?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.
Q: If equipments have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. Change all the parts for free.
