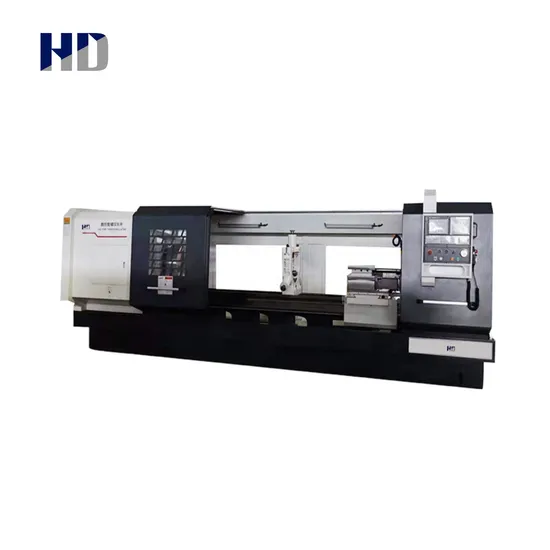

Qk1335 Automatic Oil Country Pipe Cutting Pipe Threading CNC Lathe
Basic Info.
Model NO.
QK1335
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
CNC Pipe Threading Lathe
Max. Swing Over Bed Dia.
1000mm
Max. Swing Over Cross Slide Dia.
610mm
Max. Length of Workpiece
1500/3000mm
Width of Bed
755mm
Spindle Bore
360mm
Power of Spindle Motor
22kw
Mode of Spindle Speed
Two Gears, Stepless in Gears
Spindle Speed Range
L: 30-130 H: 65-260r/Min
X/Z Axis Travel
X:550 Z:1250mm
X/Z Rapid Traverse Speed
1400mm/Min
Turret
Vertical Four Station
Chuck
780 4 Jaw Chuck
CNC Control System
GSK, Fanuc, Siemens
Net Weight
12t
Transport Package
Wooden Cases
Specification
5000*2200*2100mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Product Description
Product PictureSpecification Parameter
| Specification | Unit | QK1335 | QK1343 | QK1353 | QK1363 | |
| Max. swing over bed dia. | mm | 1000 | 1000 | 1250 | 1400 | |
| Max. swing over cross slide dia. | mm | 610 | 610 | 860 | 960 | |
| Max. length of workpiece | mm | 1500/3000 | ||||
| Width of bed | mm | 755 | 755 | 755/1100 | ||
| Spindle bore | mm | 360 | 440 | 540 | 640 | |
| Power of spindle motor | kw | 22 | 22 | 37 | ||
| Mode of spindle speed | / | Two gears, stepless in gears | ||||
| Spindle speed range | r/min | L: 30-130 H: 65-260 | L: 23-120 H: 65-258 | L: 23-120 H: 65-258 | L: 2-90 H: 65-120 | |
| X/Z axis travel | mm | X:550 Z:1250 | X:570 Z:1250 | |||
| X/Z rapid traverse speed | mm/min | 1400 | 2000 | |||
| X axis motor | Speed | r/min | 1500 | 2000 | ||
| Torque | N.m | 18 | 22 | |||
| Power | kw | 2.8 | 2.8 | |||
| Z axis motor | Speed | r/min | 1500 | 2000 | ||
| Torque | N.m | 22 | 30 | |||
| Power | kw | 3.5 | 3.5 | |||
| Tailstock quill | Diameter | mm | 140 | 160 | ||
| Travel | mm | 300 | 300 | |||
| Taper | / | Morse 6 | Morse 6 | |||
| Turret | Type | Vertical four station | Vertical four station | |||
| Chuck | 780 4 jaw chuck | 1000 4 jaw chuck | 4 jaw chuck | |||
| CNC control system | GSK, FANUC, SIEMENS | |||||
| Positioning accuracy | mm | 0.02 | 0.04 | |||
| Repeatability | mm | 0.01 | 0.02 | |||
| Overall dimension | mm | 5000*2200*2100 | 5000*2200*2100 | 5000*2800*2200 | 5300*2800*2800 | |
| Net weight | T | 12 | 14 | 18 | 19 | |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
FAQ
