Copper Vodka Alcohol Distillation Equipment Pot Still Gin Distillery Equipment Alcohol Still

Product Description

Product Parameters

Product Name:	alcohol distiller
Capacity(L):	200 - 500L
Weight(KGS):	150 - 500Kgs
Heating Method:	electric, gas, steam
Voltage(V):	110V/220V/240V/380V
Material:	SS304/SS316/red copper
Application:	produce Vodka,Whiskey, Brandy
Certificate:	CE, Atex

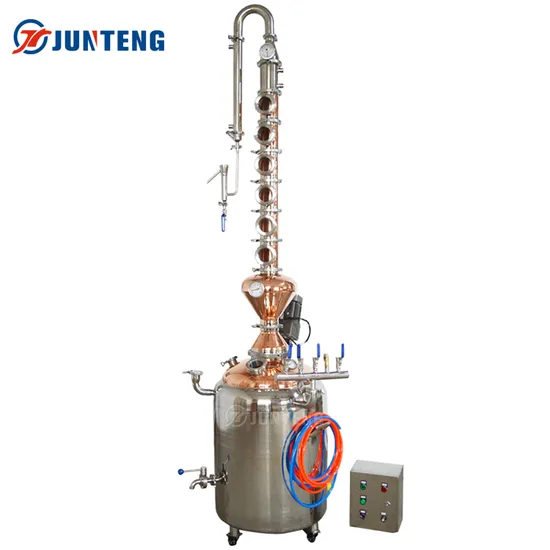

Product Display




Key Components
01.STILL POT
lt is used for heating mash.This boiler can be built in single wall or jacketedwall. The pot can be heated by electric, steam, gas or even wood per need.

02.HELMET/GOOSE NECK
This is an expansion chamber sitting on the top of the still pot. lt helps holdback higher boiling compounds while allowing desirable aromatics and flavorsto continue up the column. This is very important for making alcohol with excellent taste.
03.REFLUX COLUMN
Bubble plates are used to create more reflux in the column, ultimately to create multiple distillation cycles during one run. The number of plates means the time of distilation you have for one run.
04.DEPHLEGMATOR
A dephlegmator is sometimes incorporated into the top of a column still. It uses "active cooling" to force the condensation of alcohol vapor and induce reflux action.
05.GIN BASKET
The Botanical Basket can be used to infuse your spirit with botanical flavours from the Gin Botanicals range or your own ingredients.
06.PRODUCT CONDENSER
In the context of a still, the condenser is a device that cools down whatever hot vapors that flow through it to the point where the vapors condense into a liquid.
07.PARROT
A parrot is a device that allows for measurement of the proof of alcohol comes out of the still.

Production Process
Company Profile
Q: Are you a manufacturer or trading company? A: Junteng is leading manufacturer based in Wenzhou, China. Q: Which kind of product can you make? A: We are producing and supplying distillery equipment,equipment, crafts beer equipment, tanks and sanitary components.
Q: Can you make the products per our requirement? A: Yes, Junteng has strong R&D team that can provide you customized solution and products.
Q: Will you charge us for drafting drawing and designing? A: No, we provide free engineering and designing services for our customer if that is necessary.
Q: What is the warranty of your products? A: The standard warranty is 1 year for our products.
Q: Can you provide service and instruction for installation after delivery? A: Yes, we can provide you free instruction and support online. We can also send engineer to your factory for onsite instruction. But you need to pay the travel expense.
Q: Can we become your local distributor? A: Yes, we are working with many distributors all over the world. We'll be glad to discuss with you for the details if you have interest.
Q: What is your required MOQ? A: The MOQ is 1pc for the stock products. The MOQ of custom made product should be per discussion.
