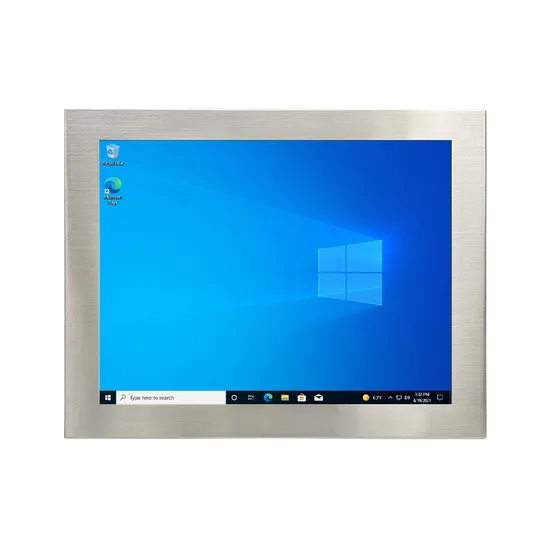

Reliable 19-Inch Full IP67 Embedded Industrial PC for Extreme Temperatures
| US$330.00-900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SC19W
Certification
FCC, ROHS, CE
Stylus Support
Yes
Battery life
None
Voice Assistant
No
Special Features
Waterproof
CPU Core
Dual-Core
CPU Type
Intel Core I5-8250u
Drive interface
Usb 3.0
Charging Interface
DC
Battery Capacity
No battery
Hard Disk Capacity
≥128G
Memory
8g
Network Mode
WiFi
Operating System
Windows
Card Reader
Without Card Reader
Built-in Bluetooth
Built-in Bluetooth
Built-in Microphone
Without Microphone
Fingerprint
Without Fingerprint
Display Resolution
1280*1024
Screen Size
19"
Screen Type
Capacitive Screen
Rear Camera Pixel
None
Front Camera Pixel
None
Webcam
Without Webcam
Storage
128GB
IP Grade
Full IP67 Waterproof
Temperature Range
-20 to 70 Celsius
Warranty
1 Years Warranty
Certificate
CE, FCC, RoHS
Installation
Wall-Mounted
Power Supply Type
Adapter
Rack Unit
All in One
Transport Package
Carton
Specification
66x47x18cm
Trademark
Sihovision
Origin
China
HS Code
8471414000
Production Capacity
5000piece/Month
Product Description
Introducing our High-Performance 19-Inch Stainless Steel Touchscreen PC, meticulously crafted for even the most challenging environments, ensuring unparalleled reliability.Main Products
Feedback
Product Description
Features:
1. Constructed with premium stainless steel SS304, this device is fully IP67 waterproof and equipped with a waterproof connector to withstand harsh conditions.
2. Features an industrial-grade 19'' LCD panel with a wide viewing angle and 1000 nits brightness, ensuring sunlight readability for optimal performance.
3. Utilizes a 5-wire resistive touch screen that offers high precision, durability, and anti-interference capabilities, supporting touch operation with gloves and water.
4. Built to resist acids, alkalis, and corrosion, complete with an anti-glare surface for enhanced visibility.
5. Employs optical bonding technology between the LCD and touch screen for superior clarity.
6. The front frame and rear shell are expertly sealed with waterproof rubber strips, allowing for disassembly during inspection and maintenance without compromising waterproof integrity.
7. Equipped with a high-performance motherboard that ensures reliable 24/7 continuous operation.
Technical Specifications
| PC | |
| CPU | Intel® Core, i3-1115G4, Dual Core , Quad Threads, Base 1.7 GHz, Turbo 4.1 GHz, Fanless Other CPU Optional |
| Chipset | SOC |
| Memory | 1*SO-DIMM DDR4 3200MHz Max32GB |
| Hard Drive Capacity | 1 * M.2 (NGFF) Key-M Slot (PCIe x4 NVMe SSD, 2242/2280), 1 * Mini PCI-E Slot (mSATA, SATA3.0), 1 * SATA3.0 7P Connector (with 1 * SATA Power Header) |
| Graphics | Intel® Iris® Xe Graphics |
| Audio | Audio Codec 1 * Front Audio Header (Line-Out + MIC) 1 * Line-Out + MIC 2in1 3.5mm Jack (default CTIA, OMTP Standard SEL by res) 2 * Amplifier, 5-W (per channel) into an 8-Ω Loads |
| Network | Realtek GBE LAN Chip (RJ45, 10/100/1000 Mbps) |
| Wireless Network | WIFI, Bluetooth, 4G, GPS Optional |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| External I/O Ports | |
| USB | 2x IP67 USB2.0 |
| LAN | 1x IP67 RJ45 |
| COM | 1x IP67 RS232 |
| Power input | 1x IP67 9-36V DC |
| Other | 1x IP67 Power on/off button, 1x IP67 Breather valve , |
| LCD panel | |
| Panel size | 19" |
| Display active area | 376.32(W)x301.056(H) mm / 14.816x11.853 in |
| Resolution | 1280*1024 |
| Aspect ratio | 5:4 |
| Brightness (cd/m²) | 1000 nits sunlight readable |
| Brightness control | PWM software to adjust brightness |
| Contrast ratio | 900:1 |
| View angle | 85°/80°/80°/85° (R/L/U/D) |
| Support color | 16.7M |
| Backlight | WLED, 50K hours |
| Touch panel | |
| Touchscreen Type | 5 wire resistive touch |
| Surface Hardness | 3H |
| Surface treatment | Anti glare |
| Luminousness | ≥90% |
| Touch controller IC | EETI ETR400 |
| Available touch drivers | Windows, Linux, Android, Mac |
| Touch bonding | Optical bonding (Air bonding Optional) |
| Touch optional | 10 Points capacitive touch, IR touch, Non touch optional |
| Power Supply | |
| Working voltage | 12V DC (9-36V DC Optional) |
| Power consumption | 65W |
| Power adapter | AC 100 ~ 240V input and DC +12V@7.5A MAX output, 90W |
| Enclosure | |
| Material | Stainless Steel 304 |
| Finish | Wire drawing |
| Color | Silver |
| Mounting | VESA mount 75x75/100x100mm |
| IP rating | Full panel IP67 waterproof |
| Cooling system | Passive - Fanless |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage :-30 to 80°C |
| Relative humidity | Up to 100% at all relevant temperatures, non-condensing |
| Vibration | GB/T 2423.10-2019 |
| Shock | GB2423.5 |
| EMC | Class B |
| Packing Details | |
| Product weight | Net weight 8.49kg |
| Product dimension | 453×378×65mm |
| Packing info | 1pc/ctn 66×47×18cm 12kg 2pcs/ctn 67×48×34cm 25kg |
| Accessories | Power adapter, Power plug, Waterproof LAN cable, Waterproof USB cable*2 |
| Other | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
