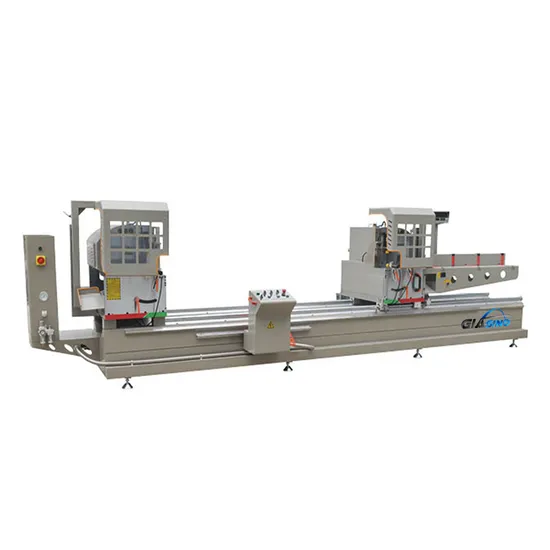

Aluminium Windows Production Line Double Head PVC Aluminium Profile Cutting Machine
Basic Info.
Model NO.
LJZ2-450x43700
CNC or Not
CNC
Voltage
380V
Product Name
UPVC Profiles Double Dead Cutting Machine for UPVC
Transport Package
Plywood Case
Origin
Shandong, China
HS Code
84778000
Production Capacity
60sets/Month
Product Description
Aluminium windows production line double head pvc aluminium profile cutting machineEquipment Features for Aluminium windows production line double head pvc aluminium profile cutting machine:
Glasino CNC Double Head Cutting Saw is used for not only aluminum and PVC profile cutting, but also aluminum corner connector cutting.
1. Feeding system adopts imported linear guide pair, with high accuracy and long service life.
2. Adopted high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
3. Adopted DELTA/ MITSUBISHI CNC technique, can achieve various profile auto cutting off.
4. 45°and 90° cutting is available.
5. GERMANY Imported carbide saw blade give accurate processing and high endurance.
6. Imported linear bearing motion pair ensured steady processing accuracy.
7. Saw blade rotate smoothly due to high accuracy main spindle.
8. Uniform sped feeding and smooth motion
8. Auto-opening guard shield ensured safety operation.
10. The two-way location-and-clamping feature high precision and steadiness.
Details of Aluminium windows production line double head pvc aluminium profile cutting machine:CNC type:
Manual type:
Working samples of Aluminium windows production line double head pvc aluminium profile cutting machine:
Technical Parameter
| Power Supply | 380V 50Hz | Cutting Angle | 45 degree 90 degree |
| Power Rate | 3Kw | Cutting Length | 400-4200mm |
| Motor Speed | 3200rpm | Max. Cutting Width | 150mm |
| Saw Blade Specification | Φ500×4.4×Φ30×Z120 | Max. Cutting Height | 300mm |
| Air Pressure | 0.5-0.8Mpa | Overall Dimension | 5800*1500*1700 |
| Air Consumption | 200L/min | Weight | 1600 |
Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning and training.Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receive the deposit.
