220V off-Grid Industrial Frequency Solar Inverter 5kw Solar Power Inverter 1kw 4kw 8kw 10kw Built-in WiFi

Product Description

Off Grid Hybrid Solar Inverter
ISP 1KVA-12.5KVA
KEY FEATURES Low frequency off grid hybrid solar Inverter 1KVA 0.8KW to 12.5KVA 10KW 3 in 1 , Power Inverter +Grid Charger+PWM or MPPT controller Toroidal transformer, static consumption 50% less than high frequency design Selectable Utility,Solar or Battery priority, power Saver Modes Adjustable Charge Current & Voltage, selectable Lead acid / Lithium battery Support inverter and Lifepo4 BMS communication (2-12.5KVA) RS232, BMS/RS485,Dry Connector Communication (2-12.5K) WiFi Plug Option for Mobile App, Automatic generator startion option Communication Function option for 1-1.5KVA Unattended function,Auto restart by grid resume or Bat Disdisplay and setup paramter by LCD UPS design, Auto transfer time 10 Ms Comprehensive protection for overload,short-circuit,Battery Low and else 10KVA 12.5KVA parallel function optional TECHNICAL SPECIFICATIONS

Model Name		ISP1K-12A(M)	ISP1.25K-12A(M)	ISP1.5K-12A(M)	ISP2K-24A(M)	ISP3K-24A	ISP5K-48A	ISP6.3K-48A	ISP10K-48A(P)	ISP12.5K-48A(P)
INPUT	Rateed Power(VA/W)	1KVA	1.3KVA	1.5KVA	2KVA	3KVA	5KVA	6.3KVA	10KVA	12.5KVA
		0.8KW	1KW	1.2KW	1.6KW	2.4KW	4KW	5KW	8KW	10KW
	Rated Voltage(VAC)	110 or 220V
	Voltage Range	77-132VAC or 154-275VAC±5V
	Frequency	50/60Hz±5%
OUTPUT	Voltage Range	110VAC, 220VAC or 110V+220V Two hot line,Three type for Choice ; ±10%( UPS mode)
	Frequency	50/60Hz±5%
	Output Wave	Pure Sine Wave
	Transfer Time	<8ms
	Output Voltage Regulation	10% ms
	Other Output Mode	statis Bypass Mode/ power Saver Mode
	Efficiency	>98%
	Load Peak Ratio	(MAX)3:1
	Protection Function	Under inverter: overload protection,short circuit protection,low voltage protection, (with battery anti-reverse connection, board)
BATTERY & AC CHARGER	Rated Voltage(VDC)	12VDC			24VDC		48VDC
	Charging Voltage	13.75VDC			27.4VDC		54.8VDC
	AC Charge Current	20A	25A	30A	20A	30A	24A	29A	48A	60A
	DC High Voltage Alarm and Fault	16V			32V		64V
	DC High Voltage Recovery	15V			30V		60V
SOLAR CONTROLLER	Type	PWM (MPPT optional)				MPPT only
	Working Range	12V PWM 15V-50VDC 12V MPPT 15V-150VDC			24V PWM 30V-105VDC 24V MPPT 30V-150VDC		48V MPPT 60V-150VDC
	Rated Current	60A					120A
	Efficiency	≥99%
	Max PV Power	800W			1600W		6400W
	Max PV VOC	PWM 50VDC; MPPT 150VDC, 200V option				MPPT 150VDC, 200V option
	PV Work Voltage Range	12V PWM 15-30VDC 12V MPPT 15-105VDC			24V PWM 30-60VDC 24V MPPT 30-105VDC		48V MPPT 60-105VDC
WORKING MODE	Utility Priority	UTI, UTILITY power priority, BATTERY and SOALR power as supplement (U on,U to Loads , U Off , B+S to loads )
	Solar Priority	SOL,SOLAR power priority, UTILITY and BATTERY as supplement (S enough, S to Loads; S Not Enough, U+B to loads; No S, U to Loads too; No B , then U to loads )
	Battery Priority	SBU, Battery Priority,(S Enough, S to Loads, S not enough,S+B to loads, B out of Power, U to loads)
KEY SETUP	Power Saver	Load > 5% continous output, < 5% no output and detect load per 10MS
	Charge Mode	CUT, UTILITY priority,U+S charge Bat ;CSO, SOLAR priority, U Charge Bat when Bat Low Voltage only; OSO, SOLAR charge only .
	Charge Current	Solar and Mains Charge Current is adjustable
	Charge Voltage	setable Boost/Float and LVD Voltage,UTILITY charge bat VDC point , BAT Low Restart VDC,
	Battery Type	SEL GEL, FLD USER,TER.LIF ( different lead-acid battery or lithium battery )
LED DISPLAY		AC/INV, Charge and Fault
LCD DISPLAY		Working Mode, input and output VAC, HZ, BAT %, Load %, setup working mode, battery type ,PV Amp , PV VDC PV Watt, Buzzing icon, Fault
ALARM	Low Battery Protection	buzzer long beep
	Low Battery	buzzer beeps every second
	Machine Fault	buzzer long beeps
	Overload	< 130%, beeps once / second,turned off after 30s; >150%,turn off after 300ms.
Communication		RS232, BMS/RS485, Dry Connector for 2-12.5KVA, wired Communication to PC or wireless Mobile App by WiFi or GPRS plug
Operating Ambient Temperature		0-40ºC
Storage Ambient Temperature		-15 - +50ºC
Operating / Storage Environment		0-90% No Condensation
Product Size :W * D * H (mm)		345*254*105				465*310*135		545*400*200
Packing size: W * D * H (mm)		430*333*173				530*385*200	565*385*200	660*460*270
Net Weight (KG)		8.46	8.46	8.41	13.53	10.79	15.69	27.46	39.18	51.03
Gross Weight (KG)		9.21	9.21	9.15	14.88	12.42	16.59	30.91	42.63	54.68
Remark		ISP---Integrated Solar Power ; M---MPPT; (P)-Parallel type

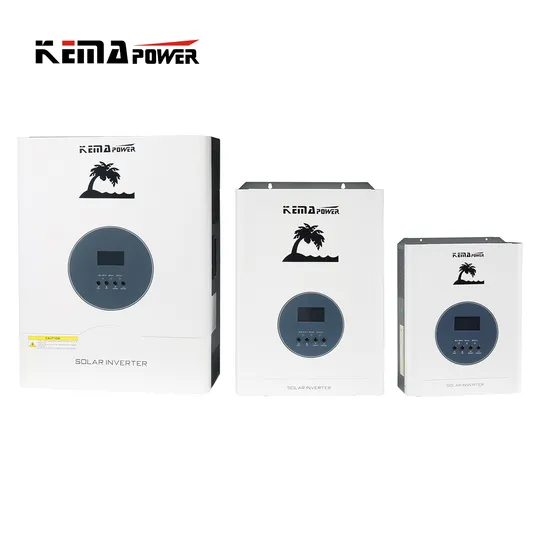

PRODUCT DISPLAY
