ISO Standard Oil Immersed Transformer Distribution System 33kv 100kVA 300kVA 500kVA 800kVA 1000kVA 2000kVA

Product Description

Product Description

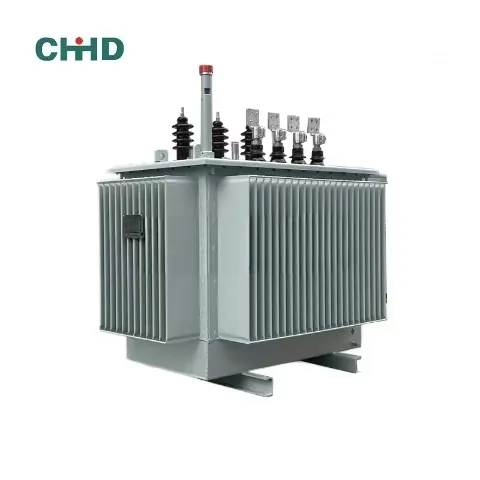

Introducing our high-efficiency oil-immersed transformer, a groundbreaking advancement in the realm of energy-saving technologies designed with an unwavering commitment to environmental sustainability. This remarkable transformer utilizes oil as both an insulating and cooling agent to provide unmatched power conversion and exceptional heat dissipation capabilities. With a focus on excellence, these transformers are pivotal components in power transmission and distribution systems, expertly engineered to significantly reduce energy consumption, enhance grid efficiency, and minimize environmental impact. Key Features 1. Energy Efficient: This transformer features an advanced optimized design that significantly reduces core and coil losses, greatly amplifying energy conversion efficiency and substantially decreasing operational energy use, resulting in unparalleled cost savings. 2. Low Loss: Made from high-quality silicon steel sheets using state-of-the-art manufacturing techniques, it effectively diminishes no-load and load losses, dramatically decreasing the total operating expenses within the power system. 3. Excellent Heat Dissipation: Utilizing oil as a cooling medium, it achieves extraordinary heat dissipation through either natural convection or forced oil circulation, ensuring stable performance even under heavy load conditions, thereby extending the equipment's longevity. 4. Environmentally Friendly Design: Compliant with both domestic and international energy conservation and environmental protection standards, this innovative design substantially reduces carbon emissions and mitigates environmental pollution, making it the perfect choice for green energy projects and modern eco-friendly power grids. 5. Safe and Reliable: The integration of high-strength insulation materials with precision engineering ensures safe and steady operation even in the most challenging grid environments.
Product Parameters

Product Model	Rated Capacity(kVA)	Connection Group	No-Load Loss	Load loss(W)(120°)
S11-M-50/35	50	Yyn0 Dyn11	160	1200/1140
S11-M-100/35	100		230	2010/1910
S11-M-125/35	125		270	2370/2260
S11-M-160/35	160		280	2820/2680
S11-M-200/35	200		340	3320/3160
S11-M-250/35	250		400	3950/3760
S11-M-315/35	315		480	4750/4530
S11-M-400/35	400		580	5740/5470
S11-M-500/35	500		680	6910/6580
S11-M-630/35	630		830	7860
S11-M-800/35	800		980	9400
S11-M-1000/35	1000		1150	11500
S11-M-1250/35	1250		1400	13900
S11-M-1600/35	1600		1690	16600
S11-M-2000/35	2000		1990	19700
S11-M-2500/35	2500		2360	23200

Products advantages: Oil-immersed transformer
Providing customized solutions to meet a wide array of client requirements
Outstanding insulation and heat dissipation performance
Characterized by minimal no-load losses, exceptionally low noise, and a prolonged service life. Certifications
Company Profile
FAQ 1. What about the lead time?
Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, we arrange the production.
2. Can you do OEM?
Yes, we are 61 years factory,we can provide OEM (Original Equipment Manufacturer) services. We can customize the transformers according to your specifications, including branding, design, and packaging to meet your specific needs. Let us know your requirements, and we'll work with you to deliver a product that aligns with your request. 3. What is your payment terms?
T/T, L/C,Visa Paypal for different circumstances. 4. Do you have inspection procedure before shipping?
Yes,we do 100% QC inspection. 5. Do you offer guarantee for the products?
Yes. We offer at least two years warranty for all of our transformer.
