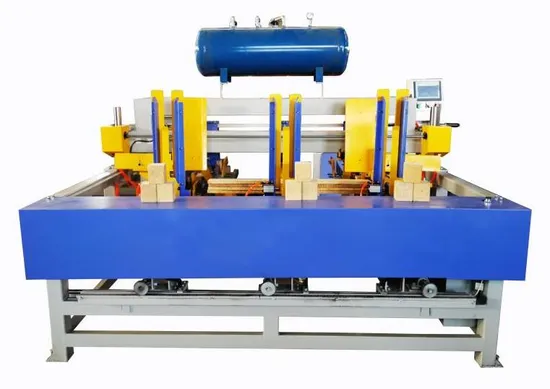

Automatic Block Feeder Wood Pallet Leg Coil Nail Making Machine

Product Description

Automatic Block Feeder Wood Pallet Leg Coil Nail Making Machine
Product Description
Introduction

Auto Wooden Block Feeder mainly used to nail the wood board and wood block together. Worker just need put wood board and wood block on the right position. It can automatic nailing it.

Product Parameters

Model	BY-1400
Power	1.2kw Servo motor
Capacity	600-700pcs/h
Wood board length	800-1400mm (also can customized)
Wood bloack size	≤ 140*140 (≥ 140*140 need customized)
Block Quantity	3/4/5 pcs
Nail Gun Quantity	3/4/5 pcs
Nail Gun Brand	US BOSTITCH
Control System	Simens
Dimension	2300*2100*1500mm
Weight	800kg

Product Details
* Preparations
* Touch screen operation
* working process
* Automatic input program
* Final product

Related Equipments
1.Auto pallet nailing machine
2.Turning machine
3.Label stamp machine
4.Pallet turnover machine
5.Pallets stacker machine

Our Services
1)We can provide you the one year warranty but without the spare parts.

2) The professional and timely 24 hours after-sale service.

3)The relative video of the machine installation and instruction will be provided for you.

4) We can provide you the different mould to meet your different requirements.

5)We can also meet the special voltage demand.

6) The engineer is available to service machinery oversea
