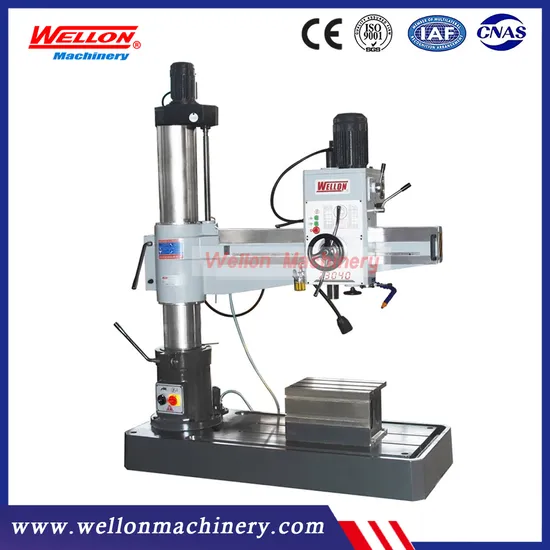

Hydraulic Rocker Drilling Machine Z3040X13 Radial Drilling Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
The large weight and stiff construction of the drill ensures stability and vibration free operation.The cube table ensures easy adjustment and filling of the workpiece.Height adjustment of the arm by motor.Control panel located on the front of the drill for better performance and ergonomics.The polished surface of the column ensures easy, free and precise travel of the arm.Drill equipped with manual blocking of the head and arm of the column.The large speed range ensures precise and fast processing.
Technical parameters:

Model	Z3040x13
Max. drilling capacity	40 mm
Distance from spindle to column	360 - 1300 mm
Distance from spindle to table	260 - 1300 mm
Spindle travel	200 mm
Spindle taper	MT4
Spindle speed	75-1200 rpm
Spindle speed steps	6 steps
Spindle feed	0.1 0.16 0.25 mm/r
Rocker rotary angle	360 degree
Motor power	2.2 kw
Lifting motor power	0.75 kw
Dimensions	1535x600x1780 mm
Weight	1300 kg

Standard accessories: Box type worktableDrill chuckTaper sleeveWrench Optional accessories: Spindle guardMachine vise
Company information

Packaging & Shipping

FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
