Low Investment Waste Paper Pulp Automatic Small Scale Chicken Egg Tray Production Line Making Carton Moulding Forming Machine

Product Description

Product Parameters

Model	YG-1*3	YG-1*4	YG-3*4	YG-4*4	YG-4*8	YG-5*8	YG-6*8
Capacity (pcs/h)	1000	1500	2500	3500	4500	5500	7000
Forming Mould Quantity	3	4	12	16	32	40	48
Total Power (kw)	40	40	50	60	130	140	186
Electricity Consumption (kw/h)	28	29	35	42	91	98	130
Worker	3-5	4-6	4-6	4-6	4-6	5-7	6-8

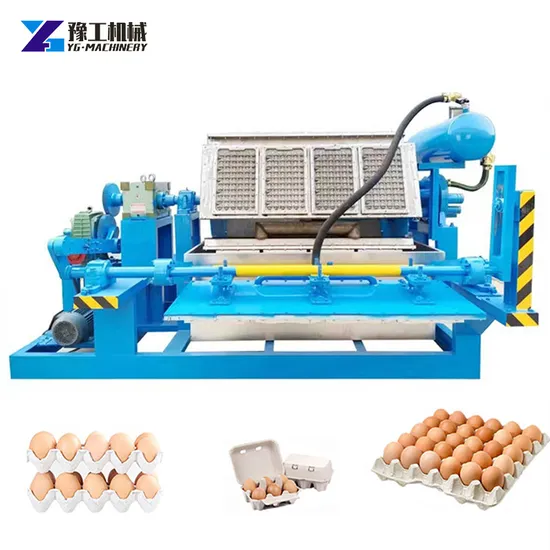

Product Description Automatic Egg Tray Making Carton Moulding Machine
An egg tray-making machine is used to produce all kinds of egg tray.
Egg trays are visible in our lives with many forms and functions.
It cannot only produce egg trays but also produce wine trays, fruit trays, electrical packing trays, etc.
Advantage of Egg Tray Production Line
1.Pulp molding automatic egg tray production line mainly uses waste paper as raw material, which is rich in source and low in price, which belongs to the comprehensive development and utilization of waste.
2.Water recycling system, No pollution, Labor cost-saving, Cheap raw material, Broad sales market.
3.The principle of the egg tray molding machine is simple and easy to understand, which can be operated according to video. At the same time, convenient maintenance, low cost.
The egg tray machine system can use all kinds of waste paper to produce high quality molded fiber tray products. Such as egg trays, egg boxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, can trays, seed pots, egg tray, fresh fruit tray, electric inner tray, a fragile product tray, farm tray, food and medical packing, medical product, special industry tray packaging, etc

Pulp system Feed the waste paper and water into the pulping machine, and after about 20 minutes of high-concentration stirring, the pulp is automatically transported to the pulp storage tank for storage and stirring. Then the slurry is transported to the slurry tank by the slurry supply pump and stirred to the required consistency, and then transported to the forming machine.

Molding system 1. The molding machine adsorbs the pulp pumped into the hopper of the molding machine to the molding machine mold, and adsorbs the pulp to the molding machine mold through the suction of the vacuum system, and sucks the excess water into the gas-water separation tank. The water pump is pumped into the pool for storage. 2. After the mould of the forming machine absorbs the pulp and forms it, the manipulator of the forming machine takes out the finished product and sends it to the drying conveyor belt.

Metal drying system Multi-layer drying system, the internal temperature can reach 120 degrees. Fast drying paper tray, fast delivery. High temperature resistant material, long servi

Packaging & Shipping
Company Profile
FAQ 1.Q:Are you trading company or manufacturer?A:We are original equipment manufacturer.2.Q:How long is your delivery time?A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you wantto customize the product.3.Q:Do you provide samples? ls it free or extra?A:Yes,we could offer you the sample.But it's not free. You need to pay for the sample and the cost of freight.4.Q:What is your terms of payment?A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
