Automatic Parttern Computerized Long Arm Lockstitch Quilting Machine

Product Description

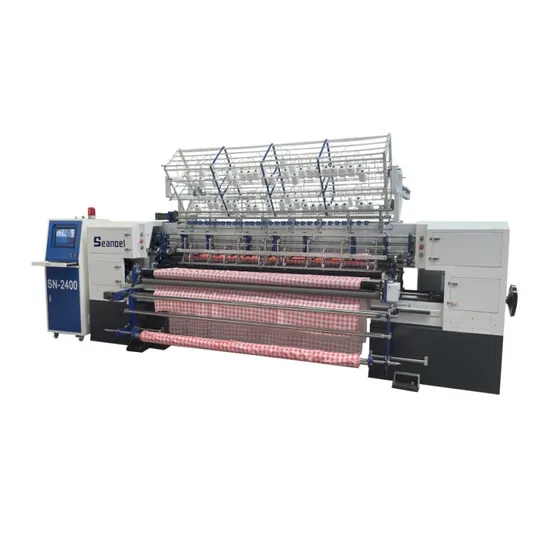

Computer Shuttle Quilting Machine
SN-64-Y2 SN-96-Y2 SN-128-3B
1. It is widely used for quilting high-quality garments, quilt covers,hand bags,gloves,sleeping bags,pajamas,bedspreads,seat covers,plus material and household ornaments.
2. Needle bar and press plate are connected by cam-free double-swinging device, which is with high precision and durable. This structure can avoid lubrication and dirty material effectively.
3. High rigidity machine body and structure can make the machine running faster and more stable.
4. Adopting the new structure of press plate's adjusting makes the machine much simple.
5. Advanced and practical up thread-break detection unit.
6. Computerized automatic needle-lifting speed adjustment.
7. New generation of CNC system, advanced machine structure, high precision quilting, dispense with too much parameter adjustment or pattern modification during quilting.
8. Easy preparation of CAD drawing extremely precise.
9. Able to quilt simple embroidery patterns.
10. Fault detection and indication enabling fast fault correction and return operation.

Model	SN-64-Y	SN-96-Y	SN-128-3B
Dimension(L×W×H)	3600*1550*2300	4700×1550×2300	5560×1550×2300
Quantity of needle bar	2 OR 3	2 OR 3	3
Quilting width	1650mm	2450mm	3250mm
Space between needle rows	3"+1" , 3"+1.51" , 3"+2" , 3"+3"
Space between needles	25.4
X-axis movement displacement	203.2	305	305
Thickness of quilting	≤30mm	≤30mm	≤30mm
Stitch length	2~7
Speed of production	60-130M/H	80-150M/H	80-150M/H
Model of needle	14#-21#
Speed of main shaft	500~1000RPM	500-1000RPM	500-1000RPM
Total power required	4KW	4.5KW	5.5KW
Voltage	380V/50HZ 220V/60HZ
Gross weight	3000kg	4000kg	5000kg

Warranty
1. All parts are guaranteed one year for non-human-made damage2. After one year, all parts was provide without profit3. Before buying, our businessman online 12 hours every working day to answer your questions4. In production,production pictures and videos are available any time5. After buying,our engineer online 10 hours every working day to help you use machine correctly6. We provide details machine installation & user's guide and maintenance manual
Company Profile
FAQ
Q1: Warranty,Quality and ServiceA:We provide one year warranty,within one year,If machine damaged,we provide parts free;And we provide online guidance within 12 hours,lifetime serviceQ2: Experience,Professional and EngineerA:We are a home textile manufacturer with almost 20 years experience,Our engineer online eight hours every day,we will give bestguide before buying and after buyingQ3: Trust and SafetyA:We are a family business group,all of us working in this market and can only working in this field,we must do our best becausethere is no way of escape,no matter when you have troubles,you can find us alwaysQ4: Advantage and Why choose usA:We have are rich experience, professional team, never absent after-sales servicewe helped many many customers in the world,we are growing up together with all of our customers
