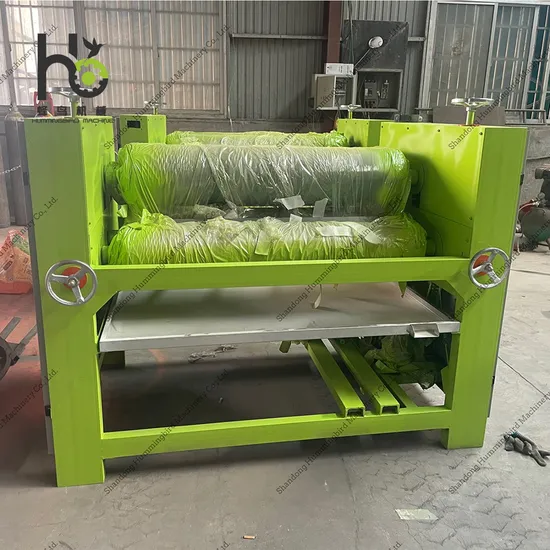

High Efficiency Plywood Gluing Machine, for The Production of Plywood

Product Description

The glue spreading machine can evenly apply glue on the surface of the plywood to ensure uniform glue distribution and avoid the situation of too much or too little glue in some parts, thereby ensuring the gluing quality of the plywood. It is very durable,excellent oil resistance , high wearresistance ,good heat resistance andstrong adhesion.
Automated operation: The glue spreading machine adopts an automated control system, which can achieve continuous and efficient glue coating operations, reduce the time and labor intensity of manual operations, and improve production efficiency. Used in conjunction with other equipment: The glue spreading machine can be used in conjunction with plywood production equipment such as rotary cutters and hot press machine to form an automated production line, further improving production efficiency and product quality.
Company Profile
Shandong hummingbird Machinery Co., LTD, located in Linyi city, Shandong province, has more than 20 years of experience in machinery production and improvement.The company established Hummingbird International Trading Company in order to expand the international market. After several years of efforts, the company's main products and equipment have been exported to Southeast Asia, the Middle East, South America, Africa and other markets.Looking forward to working with you to create, share the future!

Product Parameters

	4FT Glue Spreader				8FT Glue Spreader
	Single Side		Double Sides		Single Side		Double Sides
Max spreading width	1400mm	1400mm	1400mm	1400mm	2700mm	2700mm	2700mm	2700mm
Diameter of rubber	245mm	410mm	245mm	410mm	310mm	410mm	310mm	410mm
Diameter of steel roller	275mm	275mm	275mm	275mm	275mm	275mm	275mm	275mm
Number of roller	3pcs	3pcs	4pcs	4pcs	3pcs	3pcs	4pcs	4pcs
Max working thickness	60mm	60mm	60mm	60mm	60mm	60mm	60mm	60mm
Output Speed	25-35m/min	40-60m/min	25-35m/min	40-60m/min	30-40m/min	40-60m/min	30-40m/min	40-60m/min
Motor Power	4KW	4KW	4KW	4KW	5.5KW	5.5KW	5.5KW	5.5KW
Weight	1.5Ton	1.6Ton	2.1Ton	2.2Ton	4.1Ton	4.2Ton	5.1Ton	5.2Ton
Overall Dimensions	2200mm*1500mm*1600mm				3200mm*1500mm*1600mm

Features
1.The rubber roller is natural rubber .lt has high hardness,so it is very durable,excellent oil resistance , high wearresistance ,good heat resistance andstrong adhesion.
2.Using DELlXl brand trave!switch, longer service lifemore stable.
3.The steel roller can be adjusted back and forth to control the amount of glue. The rubberroller can be adjusted up and down to control the gap.

Detail Accessories
NO.1
Corrosion-resistant stainless steel roller
All roller was positioned by centerlization. spreading is even .The glue roller of this machine is made of corrosion resistant stainless steel roller and nitile rubber roller with grooving ,very safe and durable.
NO.2
The rubber roller is natural rubber .lt has high hardness ,so it isvery durable ,excellent oil resistance , high wear resistance ,goodheat resistance and strong adhesion.
NO.3
The steel roller can be adjusted back and forth to control the amount of glue.The rubber roller can be adjusted up and down to control the gap.
NO.4
DELIXI
Using DELlXl brand travel switch, longer service life, more stable.
NO.5
Line is to prevent workers from touching.
NO.6
Model 250 reduction motor.
Production Details
The plywood gluing machine is used to evenly apply glue to the veneer surface during the plywood production process. It plays a key role in the manufacture of plywood, ensuring the uniform distribution of glue, improving product quality and production efficiency.
Major component
Glue tank: Store and supply glue.
Glue roller: evenly spread the glue on the surface of the board.
Squeezer: Adjust the amount of glue on the roller to ensure uniformity.
Conveyor belt: The board is fed into the gluing area and sent out.
Control system: adjust the coating speed, glue water and other parameters.
Working principle
Veneer conveying: The veneer enters the gluing area through the conveyor belt.
Glue: The glue roller dips the glue from the glue tank and evenly spreads it on the surface of the board.
Squeezer: Squeezer removes excess glue and ensures uniformity.
Sending out: The coated veneer is sent out by the conveyor belt to enter the next process.
type
Manual gluing machine: simple operation, suitable for small-scale production.
Automatic gluing machine: high automation, suitable for mass production, high efficiency and uniform gluing.
advantage
High efficiency: Automation improves production efficiency.
Uniform: to ensure that the glue evenly spread, improve product quality.
Save glue: precisely control the amount of glue to reduce waste.
Apply
Widely used in plywood, particleboard, fiberboard and other production, suitable for furniture, construction, packaging and other industries.
Care and maintenance
Regular cleaning: prevent glue residue affecting performance.
Lubrication: Lubricate moving parts regularly to reduce wear.
Check: Check the key parts such as the rubber roller and the rubber scraper regularly, and replace the wear parts in time.
Matters needing attention
Operation safety: Operators must be trained and comply with safety procedures.
Glue selection: Select the right glue according to the production needs.
Environmental control: Maintain appropriate temperature and humidity to ensure stable glue performance.
Plywood gluing machine is the key equipment in plywood production, proper use and maintenance can effectively improve production efficiency and product quality.
