Heavy Duty 5000kg 20000kg Mrl Warehouse Elevator Freight Lift in Factory

Product Description

Product Name: Heavy Duty 5000kg 20000kg Mrl Warehouse Elevator Freight Lift in Factory

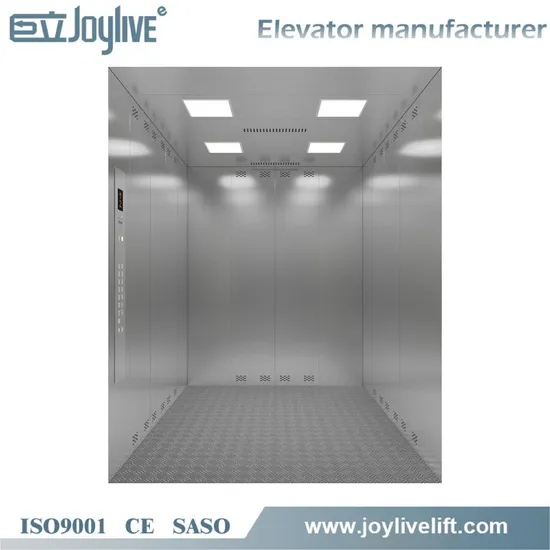

MODEL:Gargo Goods Freight Elevator LiftCeiling:Powder coated steel, LED Lighting
Cabin Wall: Hairline stainless steel, Powder coated steel
Floor: Chequered steel plate
Elevator Application:
Factory, Warehouse, Shopping mall, Freight center
Specification Range:
Load: 1000kg,1600kg,2000kg,3000kg,4000kg,5000kg
Heavy duty: 7000kg,10000kg,20000 kg
Speed: 0.5m/s,1m/ s,1.75m/s
Travel Height: 25m,50m,75m
Joylogi heavy-duty freight elevator provides auxiliary logistics planning for large vehicles transportation, equipment, warehousing and distribution with max. load 20 tons.
Automatic dispatching between elevator and AGV(Automated Guided Vehicle), efficiently and orderly transport across floors, improve the automation of workshop, and solve obstacles in vertical space transportation.Basic Series
F100(GF10) MR Freight Elevator

Load	Speed	Cabin size	Door Opening	Entrance	Door type	Shaft size	Pit depth	Top Floor Height
kg	m/s	CW×CD	EW×EH			HW×HD	PD(mm)	TH(mm)
1000	0.5	1400×1700	1200×2100	Single	SO	2250×2100	1500	4300
	1.0	1300×1800	1100×2100	Doulbe	SO	2100×2350	1500	4300
1600	0.5	1500×2300	1500×2100	Single	CO-4P	2650×2700	1500	4300
	1.0
	0.5	1500×2300	1500×2100	Double	CO-4P	2650×2850	1500	4300
	1.0
2000	0.5	1700×2400	1700×2100	Single	CO-4P	2900×2850	1500	4300
	1.0
	0.5	1700×2400	1700×2100	Double	CO-4P	2900×2950	1500	4300
	1.0
2500	0.5	2000×2500	1800×2100	Single	CO-4P	3350×2950	1500	4300
	1.0
	0.5	2000×2500	1800×2100	Double	CO-4P	3350×3050	1500	4300
	1.0
3000	0.5	2000×2800	1800×2100	Single	CO-4P	3350×3250	1500	4300
	1.0
	0.5	2000×2800	1800×2100	Double	CO-4P	3350×3350	1500	4300
	1.0
4000	0.25	2200×3300	2200×2300	Single	CO-4P	3800×3750	1500	4500
	0.5
	0.25	2200×3300	2200×2300	Double	CO-4P	3800×3850	1500	4500
	0.5
5000	0.25	2400×3600	2400×2300	Single	CO-4P	4050×4050	1600	4800
	0.5
	0.25	2400×3600	2400×2300	Double	CO-4P	4050×4150	1600	4800
	0.5
Note: 1. Standard car height CH=EH+100.

FN100/FN200(GFN20 GFN30) MRL Freight Elevator

Load	Speed	Cabin Size	Door Opening	Door type	Shaft size	Pit depth	Top Floor Height	Note
kg	m/s	CW×CD	EW×EH		HW×HD	PD(mm)	TH(mm)
1000	1.0	1400×1700	1400×2100	Single/CO-4P	2500×2200	1600	4300	FN100 FN200
	1.5					1600	4600
	1.0	1400×1700	1200×2100	Double/SO	2400×2250	1600	4300
	1.5					1600	4600
1600	0.5	1500×2300	1500×2100	Single/CO-4P	2850×2700	1600	4500	FN100 FN200
	1.0
	0.5	1500×2300	1500×2100	Double/CO-4P	2850×2850	1600	4500
	1.0
2000	0.5	1700×2400	1700×2100	Single/CO-4P	3050×2800	1600	4500	FN100 FN200
	1.0
	0.5	1700×2400	1700×2100	Double/CO-4P	3050×2950	1600	4500
	1.0
3000	0.5	2000×2800	1800×2100	Single/CO-4P	3350×3250	1600	4600
	1.0
	0.5	2000×2800	1800×2100	Double/CO-4P	3350×3350	1600	4600
	1.0
4000	0.5	2200×3300	2200×2300	Single/CO-4P	3900×3700	1700	4600	FN200
	1.0
	0.5	2200×3300	2200×2300	Double/CO-4P	3900×3850	1700	4600
	1.0
5000 Note	0.5	2400×3600	2400×2300	Single/CO-4P	4100×4000	1700	4600	FN200
	1.0
	0.5	2400×3600	2400×2300	Double/CO-4P	4100×4150	1700	4600
	1.0
Note : 1. Standard car height CH=EH+100. 2. Standard top floor height is 5100mm when traveling height ≥ 25m.

F200(GF10) MR Freight Elevator

Load	Speed	Cabin Size	Door Opening	Entrance	Door type	Shaft size	Pit depth	Top Floor Height
kg	m/s	CW×CD	EW×EH			HW×HD	PD(mm)	TH(mm)
1600	0.5	1500×2300	1500×2100	Single	CO-4P	2650×2700	1500	4300
	1.0
	0.5	1500×2300	1500×2100	Double	CO-4P	2650×2850	1500	4300
	1.0
2000	0.5	1700×2400	1700×2100	Single	CO-4P	2900×2850	1500	4300
	1.0
	0.5	1700×2400	1700×2100	Double	CO-4P	2900×2950	1500	4300
	1.0
2500	0.5	2000×2500	1800×2100	Single	CO-4P	3250×2950	1500	4300
	1.0
	0.5	2000×2500	1800×2100	Double	CO-4P	3250×3050	1500	4300
	1.0
3000	0.5	2000×2800	1800×2100	Single	CO-4P	3250×3250	1500	4300
	1.0
	0.5	2000×2800	1800×2100	Double	CO-4P	3250×3350	1500	4300
	1.0
4000	0.5	2200×3300	2200×2300	Single	CO-4P	3800×3750	1500	4500
	1.0
	0.5	2100×3500	2100×2300	Double	CO-4P	3650×4050	1500	4500
	1.0
5000	0.5	2400×3600	2400×2300	Single	CO-4P	4000×4050	1600	4800
	1.0
	0.5	2400×3600	2400×2300	Double	CO-4P	4000×4150	1600	4800
	1.0
F200 Heavy-duty type
7000	0.5	3000×4000	3000×3000	Single	CO-6P	4700×4600	1700	5200
				Double		4700×4700
10000	0.5	3400×4900	3000×3000	Single	CO-6P	5300×5200	2000	5750
				Double		5300×5400
20000 Note	0.5	4600×7000	4000×3500	Single	CO-6P	6400×7650	2500	5800
				Double		6400×7850
Note: 1. Standard car height CH=EH+100. 2. Door type can be CO-4P when door opening is 3000mm. 3. Elevator load can be customized according to project, please contact with Joylive sales engineers.

List of Functions:

Elevator Standard Function
1	VVVF Drive	19	Over-load Protection	37	Running Status Display	55	Attendant Reversal
2	VVVF Door Motor Drive	20	Anti-slip Protection	38	Car Position Auto-correction	56	Front/Rear Door Independent Control
3	Full Collective Selective Control	21	Up and Down Limit Protection	39	Lighting Fan Energy-saving Function	57	VIP Service
4	Attendant Control	22	Over-speed Protection	40	Car Arrival Chime	58	Forced Stop
5	Inspection Running	23	Leveling Fine Tunning	41	Independent Running	59	Exchange Stop
6	Best Curve Auto-generation	24	Fault Diagnosis	42	Full Load and Non-stop	60	Service Floor Set
7	Shaft Auto-tuning/Self-Learning	25	Inverted Running	43	False Call Cancellation	61	Mileage Recorder
8	Weight Signal Compensation	26	Motor Over-current Protection	44	Floor and Running Direction	62	Time Recorder
9	No Load Motor Parameter Identification	27	Power Over-voltage Protection	45	Emergency Light	63	Re-leveling
10	Automatic Open Door When Power On	28	Motor Overload Protection	46	Indicatio	64	UCMP
11	Automatic Close Door	29	Anti-nuisance Device	47	Inching Operation	65	Pre-Opening Door
12	Landing Calling by LOP	30	Encoder Failure Protection	48	Five-way Intercom
13	Closing Door Repetition	31	Door Lock Short Cut Protection	49	Alarm Bell
14	Opening Door Repetition	32	Motor Temperature Rise Protection	50	Fire Emergency Return
15	Door-open Time Set	33	Automatic Return to Ground Floor	51	Remote Shut-off
16	Advance Door Closing	34	Elevator Lock Device	52	User Inspection Set
17	Nudging Running	35	Electrical Brake Release (MRL standard)	53	Time-sharing Service
18	Light Curtain Protection	36	Parking Switch	54	Security Floor in Nighttime
Elevator Optional Function
1	ARD (Auto Rescue Device)	6	Wired Remote Monitoring	11	CCTV Cable with/without Camera	16	COP Micro-light Button
2	IC Card Access Control	7	Wireless Remote Monitoring	12	Rush Period Service	17	3D Light Curtain Protection
3	Voice Synthesizer	8	Group Control Operation	13	Streaming Media Screen
4	Air Conditioning	9	Duplex Control Operation	14	Fireman operation
5	Accessibility Facilities	10	Seismic Sensor	15	Brake Energy Regeneration

Joylive Elevator Series

Model/Type	Series	DESCRIPTION+ SEGMENT	MACHINE ROOM	MAX.SPEED	MAX.TRAVEL	MAX.LOAD/ PERSONS
GP30(SMR) Passenger Lift	3000 Residential Lift	Economic elevator with acompact machine room	Yes	2.5m/s	125m	1600 kg/up to 21 persons
	5000 Commercial Lift	High-speed elevator for high-rise buildings	Yes	4.0m/s	200m	2000 kg/up to 27 persons
	7000 High-speed Lift	Ultra-high-speed elevatorfor skyscraper buildings	Yes	8.0m/s	400m	1600 kg/up to 21 persons
GPN30(MRL) Passenger Lift	3000 Residential PassengerLift	Economical elevatorfor residential buildings	No	1.75m/s	90m	1050 kg/up to 14 persons
	5000 Commercial PassengerLift	High-speed elevator for high-rise buildings	No	2.5m/s	125m	2000 kg/up to 27 persons
HospitalLift	B5000S SMR Lift	Middle-speed elevator for hospital buildings	Yes	2.5m/s	125m	1600 kg/up to 21 persons
	B5000N MRL Lift	Middle-speed elevator for hospital buildings	No	2.0m/s	100m	1600 kg/up to 21 persons
Freight Lift	F100 MR Freight Lift Geared motor	Solid&reliable heavy-duty freight elevator	Yes	1.0m/s	50m	5000kg
	F200 MR Freight Lift Gearless motor	Energy-saving heavy-duty freight elevator	Yes	1.0m/s	50m	20000kg
	FN100 MRL Freight Lift Gearless motor	Energy and space saving heavy-duty freight elevator	No	1.5m/s	75m	3000kg
	GFH10 Hydraulic lift	Unique advantage and adaptability for limit space	No	0.5m/s	25m	5000kg
PanoramicLift	GO10 SMR	Wide view with strong safety glass for sighting seeing buildings	Yes	1.75m/s	90m	1600 kg/up to 21 persons
	GON30 MRL		No	1.75m/s	90m	1600 kg/up to 21 persons
GH30 HomeLift	6300 Backpack type	Highly customized elevatorfor house/villa	No	0.5m/s	15m	410 kg/up to 5 persons
	6600 Gantry beam type		No	0.5m/s	15m	410 kg/up to 5 persons
GE05 Escalator	E200/E300/ E500	Adaptable escalator solution forpublic transportation	/	0.75m/s	16m	30°/35°
GM10 Moving Walkway	M200	Adaptable moving walkway solution for public transportation	/	0.65m/s	43.47m	0°/10°/11° /12°
GW05 Dumbwaiter	W100	Small space, applicable to hotels,restaurants and other places	No	0.4m/s	15m	300 kg

Our Projects
Our Partners
Production Line
Certifications
Advantages
(Joycloud Platform:online monitoring system)
Joycloud™ Elevator IoT Platform
Through IoT Elevator platform, it brings full elevator manufacturing enterprise, government depart-ment, install maintenance companies, property management units, distribution agencies, and passengers closely linked into network, and provide 24-hour uninterrupted elevator operation and safety management service. According to different customer needs, we can customize cloud solutions to ensure that maintenance process is more open and transparent, riding elevator safer and more secure, management faster and more efficient.
Six Core Functions:
Dynamic Monitoring
Remote Monitoring
On-line Maintenance
Grid Rescue
On-line installation
Interactive Experience
