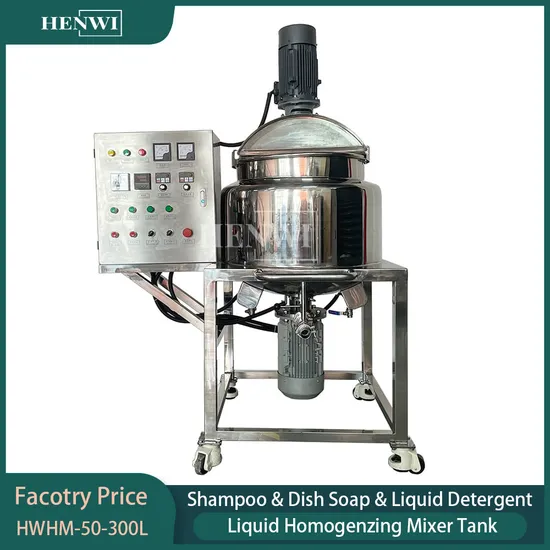

Dish Soap Liquid Production Machine with Homogenizing Mixing Tank for Cosmetic Heating and Liquid Detergent Manufacturing
| US$4,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HWHM-M-200L
Application
Liquid, Liquid with Suspended Solids, Viscous Fluid
Application Area
Chemical, Daily Chemical, Food, Pharmaceutical
Certification
CE, ISO
Condition
New
Control System
Button Control
Main Material
Stainless Steel
Mixing Capacity
30-300L
Mixing Drum Shape
Drum
Speed Control
Variable Speed
Speed Range
3000rpm
Stirring Type
Forced
Temperature Control
with Heating and Cooling
Type
High Shear Homogenizer
Warranty
1 year
Working
High Speed Mixer
Name
High Shear Homogenizer Emulsify Tank
Materials
Stainless Steel 316L/304
Mixing /Homogenizer Motor Brand
Siemens/ABB
Top Stirrer System
0-65rpm
Bottom Homogenizer System
0-3000rpm
Heating System
Jacket Heating System
Heating Method
Electric Heater
Control Panel
Press-Button Control Panel
Volume
30-300L
Lead Time
15-35 Days
Applications
1.Cosmetic and Daily Chemical Product: Cosmetic Cr
Mixer Type
Homogenizer
Layout Type
Verticle
Operating Type
Continuous Operating
Transport Package
Wooden Case
Specification
3cbm
Trademark
Henwi
Origin
China
HS Code
8474390000
Production Capacity
30-50 Set/Month
Product Description
HENWI TECHNOLOGY Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP StandardProduct Description
Homogenizing mixer machine has high-speed disperser, mixing and disperse viscously, solid and liquid, etc. various kind of raw material will be dissolved which is such as AES, AESA LSA, during liquid production which can save energy consumption and shorten production the and shorten production period. To produce liquid washing products, like shampoo, liquid soap, bath shower, dishwashing, hand washing, lubricating oil, etc.
| Features: 1.The Mixing system adopts single-direction or double-direction scraping Mixing so as to satisfy product of different technological requirements. 2. Siemens/ABB inverter speed regulation can meet the production of different process requirements. 3.Made of imported SUS304 or SUS306L stainless steel.The tank body and pipeline are polished with mirror surface, which fully meets the GMP standard. 4. The heating method mainly include electric or steam heating for customer's choice. 5. The stainless steel electric control cabinet can completely supervise the operation of equipment, and display data, such temperature and blending rotation speed etc. 6.The tank body is equipped with a jacketed insulation layer, and the insulation material is made of polyurethane foam, which has good insulation performance |
| 1 | Model | HWHM-200L |
| 2 | Working capacity | 200L |
| 3 | Heating method | Steam/electric |
| 4 | Mixer | Frame wall scraper mixing |
| 5 | Mixing motor power | 2.2KW |
| 6 | Mixing Speed | 0-65rpm |
| 7 | Homogenizer | Bottom homogenizer Internal and external circulation(option) |
| 8 | Homogenizer power | 4KW |
| 9 | Control method | Button control |
| 10 | Frequency inverter | Delta/Panasonic/Mitsubishi |
| 11 | Electrical components | Delixi |
| 12 | Tank materials | Inner layer 4mm/SUS316Middle layer 3mm/SUS304Outer layer 2mm/SUS304 |
| Capacity | Mixing power(KW) | Heating(KW) | Homogenizer(KW) | Size(mm) |
| 50L | 1.1 | 6/Steam | 2.2 | 1200*500*1600 |
| 100L | 1.5 | 9/Steam | 3 | 1300*600*1700 |
| 300L | 2.2 | 12/Steam | 4 | 2150*1450*1900 |
| 500L | 3 | 18/Steam | 5.5 | 2300*1600*2500 |
| 1000L | 5.5 | 27/Steam | 11 | 2700*1900*2700 |
| 2000L | 7.5 | 36/Steam | 15 | 2900*2800*3200 |
| 3000L | 11 | 48/Steam | 22 | 3000*3300*3700 |
| 5000L | 15 | Steam | 30 | 3400*3800*4100 |
| 10000L | 18.5 | Steam | 45 | 4200*4500*4800 |
| Control Panel |
| Simple and clear operation buttons, with notes in English or customized language required by customers. Contains voltage, current, functions switch, working indicator light, timer, speed regulator and emergency stop. |
| Frame Scraper Mixing |
| The frame-type scraper mixer can effectively mix the materials stuck on the wall. The powerful motor can mix the materials up and down. It is equipped with a frequency converter and a reducer. The stirring speed can be adjusted from 0 to 65 rpm. |
| Emulsifying Homogenizer |
| The high shear speed of 3000 rpm makes the material fully emulsified in the gap between the stator and the rotor, so that the oil phase and the water phase are fully mixed, and the Emulsifying Fineness <0.2um is obtained to obtain a stable emulsion. |
| Electrical box |
| Neat wiring helps reduce issues such as interference, crossovers, and short circuits between wires, improving the reliability and stability of the machine, and reducing the risk of circuit failures and safety incidents. It facilitates maintenance personnel in identifying and locating faults, enabling quick repairs and replacements. |
| Foldable lid |
| Foldable lid for easy feeding and cleaning |
| Universal wheels |
