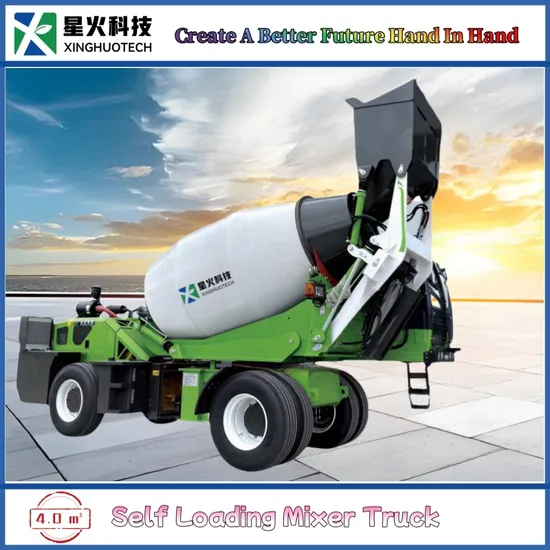

4.0 Cubic Efficient Self Loading Mobile Concrete Mixer for Construction Sites

Product Description

Product Description
The Efficient Self Loading Mobile Concrete Mixer is a marvel of modern engineering, equipped with a sophisticated hydraulic and electronic control system. It delivers an impressive level of automation, transforming the way concrete mixing operations are conducted.
The working principle of this groundbreaking device is centered around three pivotal components:
Firstly, it offers automatic loading, where the hydraulic system precisely orchestrates the hopper's movements to seamlessly introduce raw materials into the mixing drum.
Next is its highly efficient mixing, as the mixing drum not only rotates but also tilts, ensuring a complete and thorough blend of raw materials, guaranteeing top-tier concrete quality.
Finally, there is an automatic unloading. Upon reaching the optimal tilt angle, the drum precisely deposits the concrete at the intended location, ensuring accuracy and efficiency.
Application field
In the dynamic and challenging world of construction, our automatic feeding mixer trucks have proven their immense versatility and effectiveness. These innovative machines excel in a variety of settings, including construction sites, road engineering projects, water conservancy initiatives, tunnel construction endeavors, bridge construction projects, and rural development efforts.
1. The remarkable advantage of these self-loading mixer trucks is their advanced automation technology, significantly reducing the need for manual labor while enhancing overall productivity and operational efficiency;
2. Consistent and uniform mixing ensures superior concrete quality, while the flexibility of on-site preparation frees projects from relying on traditional mixing plants;
3. Additionally, the substantial savings on labor and equipment costs translate into major economic advantages for construction teams, amplifying their project budgets.
4. To conclude, as a cutting-edge and highly efficient concrete mixing solution, the automatic feeding mixer truck presents compelling application possibilities and merits substantial attention and advocacy within the industry.
Product Parameters

Equipment Model	XS-1.2	XS-1.8	XS-2.0C	XS-2.6C	XS-3.5C	XS-4.0D	XS-5.5
Discharge Capacity	1.2 m³/batch	1.8 m³/batch	2 m³/batch	2.6 m³/batch	3.5 m³/batch	4 m³/batch	5.5 m³/batch
Output Capacity	5~10m³/h	8~12 m³/h	10 m³/h	11~17 m³/h	14~18 m³/h	16~20 m³/h	22~25 m³/h
Mixing Drum Capacity	1700 L	2680 L	3500 L	3580 L	4740 L	6000 L	7800 L
Drum Rotate	0º	270º	270º	270º	270º	270º	270º
Engine Model	Yunnei 490 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4102 Turbo-charged	Yuchai 4105 Turbo-charged	Yuchai 4108 Turbo-charged	Yuchai 6105 Turbo-charged
Rated Power	55 KW	75 KW	75 KW	75 KW	85 KW	91 KW	92KW~132KW
Gearbox Model	ZL-265	ZL-265	ZL-265	ZL-280	ZL-280	ZL-315	ZL-428
Gearshift	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back	4 forward 4 back
Fuel Tank	63 L	63 L	75 L	120 L	120 L	120 L	160 L
Water Tank	400 L	400 L	500 L	500 L	920 L	750 L	850 L
Water Supply	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay
Overall dimensions (L*W*H) mm	7300*1800*3450	7300*2650*3750	6950*2720*3850	7100*2750*4100	7600*2800*4180	8450*3000*4500	8450*3100*4580
Curb Weight (kg)	4920	6000	6300	7800	8300	9700	11200

Our Advantages
Multi-functional Marvel: Eliminate the need for cumbersome concrete mixer trucks or additional loaders. Our self-loading mixer truck is a powerhouse of efficiency, seamlessly executing a multitude of tasks including loading, mixing, transporting, and unloading, all in one compact unit.
Effortless Solo Operation: With its innovative design, the cab and mixing drum swivel in harmony up to 270 degrees, offering bi-directional travel. This ensures the driver enjoys an exceptional panoramic view and the capability to manage nearly all operations solo, eliminating the need for ground crew coordination.
User-Friendly Design: Crafted with simplicity in mind, this mixer truck brings ease to your hands. No complex skills or extensive experience are required. Its strategic front-four and rear-two tire configuration offers smooth, agile steering, making it a breeze to maneuver.
Exceptional Versatility: Compact yet mighty, this mixer effortlessly navigates tight construction sites and challenging road conditions, adapting seamlessly to diverse construction landscapes.
Efficient Unloading: Designed for precision, the rotating tank directs concrete exactly where you need it, boosting unloading efficiency to new heights.
Broader Applicability: Engineered for versatility, it excels in large-scale construction sites, rural projects, and beyond, fully equipped to tackle extensive concrete construction demands.
Unwavering Stability: Fitted with premium imported hydraulic components, this mixer truck promises unwavering system stability and reliability, ensuring continuous top-tier performance.
Detailed Photos
1-Automatic hydraulic chute: Experience seamless operation with our mixer's robust automatic hydraulic chute. It ensures precision and efficiency, streamlining concrete pouring with its smooth, controlled action.
2-High efficiency bucket vibrator: Optimize your mixing process with our high efficiency bucket vibrator. Designed to enhance material flow, it guarantees a consistent and thorough mixing performance every time.
3-Wear resistant bucket: Built to withstand rigorous use, our wear resistant bucket offers unmatched durability. This ensures longevity, reducing downtime and maintenance costs on construction sites.
4-Four tugboats have good stability: The four tugboat design ensures exceptional stability and balance, providing a steadfast foundation for reliable performance on any terrain.
5-Helical mixing blade: Achieve perfect mixing consistency with the helical mixing blade, specifically engineered to deliver smooth, even blending of materials, enhancing the quality of your concrete mix.
6-Turbocharged engine: Power through any task with ease thanks to our turbocharged engine, which delivers high performance and efficiency, making our mixer an indispensable asset for any construction site.
7-Split weighted torque converter: Maximize power transfer and operational efficiency with our split weighted torque converter, ensuring your mixer can handle tough jobs with ease.
8-Heavy duty double brake reduction axle: Guarantee safety and reliability with a heavy duty double brake reduction axle, specifically designed to provide superior braking power and maneuverability.
9-High quality reducer: Enhance your machine's performance with a high quality reducer, delivering precision and reliability for seamless operation in any scenario.
10-Imported hydraulic motor: Harness the power of an imported hydraulic motor, which provides unmatched efficiency and durability, powering the mixer through demanding jobs with ease.
11-Worm gear Fully sealed rotary table: Our fully sealed rotary table with worm gear technology ensures smooth, precise rotations, lowering maintenance needs while improving productivity.
12-Luxury and Comfortable Cab: Drive in style and comfort with our luxury cab, designed to offer superior comfort and an ergonomic environment, reducing operator fatigue during long hours of work.
13-Comfortable car seats: Our car seats are crafted for comfort, providing ergonomic support to ensure that operators remain comfortable and alert throughout the workday.
14-Dual tire high load-bearing design: The dual tire design offers high load-bearing capacity, ensuring stability and safety even under heavy loads, making it ideal for demanding construction environments.
15-Automatic metering of water supply: Precision is paramount with our automatic water supply metering feature, ensuring the perfect water-to-cement ratio every time for optimal concrete quality.
Company Profile
1-Adopting advanced laser cutting equipment for sheet cutting: Our state-of-the-art laser cutting technology ensures precision and efficiency, promising superior quality and performance in every cut. This cutting-edge equipment revolutionizes the way we handle sheet metal, offering unparalleled accuracy and speed.
2-Adopting advanced robot automatic welding equipment: Embrace the future of construction manufacturing with our advanced robotic welding systems. These automated wonders ensure precise, consistent welds every time, enhancing structural integrity and reducing production time, while setting new standards for manufacturing excellence.
3-The frame anti-corrosion adopts electrophoretic technology: Protecting your investment with the finest in anti-corrosion technology, our electrophoretic process ensures durability and longevity. This advanced method provides a strong, protective layer, safeguarding the framework against the toughest environmental conditions.
4-The appearance parts adopt electrostatic powder coating technology: Experience the unmatched finish and durability of our parts, thanks to cutting-edge electrostatic powder coating. This process not only enhances aesthetic appeal but also offers robust protection against wear and tear, ensuring a lasting, vibrant finish.
5-Using high-precision CNC machine tools for boring machining: Achieve flawless precision with our high-precision CNC machine tools. This technology guarantees exacting standards in boring machining, ensuring that every component meets our rigorous quality criteria for superior performance.
6-Assembly using AGV assembly line: Witness the epitome of modern assembly with our AGV assembly line. This revolutionary approach to production maximizes efficiency and accuracy, streamlining the assembly process while maintaining the highest quality standards for our products.
Packaging & Shipping
FAQ
Q: What value-added services can your company provide?
A:(1)After receiving your message, our project consultant will contact you within two hours to understand your project requirements.We have professional technical managers who can provide 2-3 sets ofsolutions for you according to your project with pictures, videos, parameters, configurations.Our engineers can provide different configurations according to your needs. (2)During normal technical and business communication, we can also provide free updates on equipment progress, free production supervision, and offer the most cost-effective packaging and shipping solution.
Q: How to ensure product quality?
A: Our company has obtained management system certifications such as ISO9001, ISO45001, ISO14001, etc. All machines are carefully inspected and quality controlled in strict accordance with Chinese national standards and international standards. Before shipment, we will test and inspect the equipment again to ensure that every machine we deliver to our customers has good performance.
Q: How to install, operate, and use the equipment?
A: Our company can provide free installation and operation videos. We have a professional after-sales service team, and our after-sales engineers provide installation and debugging training guidance to ensure that you have no worries when purchasing and using the machine.
Q: What after-sales services can you provide?
A: Our after-sales engineers can provide online technical guidance remotely at any time; (2) Due to non-human factors, the warranty period is 12 months after leaving the factory. If the spare parts are damaged due to product quality issues during the warranty period, we provide free spare parts and provide remote technical guidance; (3) Provide paid accessory supply beyond the warranty period.
