Surface Finishing Ra 0.4 CNC Machining Wire Cutting EDM Machine

Product Description

Product Features

1.Multi-cutting function 2.Best roughness Ra<0.4um 3.Max.cutting speed hit 300mm2/min 4.With advanced and particular pluse power, gets lower loss.The diameter of wire wore 0.005mm in 200000mm2 cutting. 5.Professional high-quality industry computer and international brand parts makes the products good performance. 6.X/Y/U/V adopt Japanese Mitsubishi AC servo driver and motor,which have stable and reliable performance 7.High precision ball screw and linear guide-way improve the positioning precision of the machine tool and realize the function of pitch compensation 8.High-strength resin castings ensure the machine body having enough rigidity and strength 9.Handy control

Product Parameters

Machine type	HB400X
Worktable dimension(L×W)	580×460mm
Worktable travel(X×Y)	400×300mm
Max.part weight	500kg
Max.workpiece thickness	300mm
Max.taper angle/height	±10°/100mm
Max.machining speed	300mm2/min
Max. machining currents	12A
Best roughness	Ra≤0.4µm
Diameter of wire	0.13~0.25mm
Machine tool dimensions(W×D× H)	2010mm×1650mm×2100mm
Machine weight	1500Kg

Our Advantages
No dream, no future! Suzhou Sanguang Scence & Technology has beendevoted to realizing the dream of sclence & technology. It keeps pushingforward improvement of technologles and quality in electromachiningindustry of China. Sanguang wll continue to transform the concept oftechnological innovation into industry standard. We will continuouslydevelop new technologies and more advanced products to help you torealize your dreams and witness the bright future.

Innovative Framework
Four axes(X,Y,U,V) AC Servo combined with four axes imported ball screw and liner guideway,which guarantee the accurate.
Independent Layout
Independent Layout of X axis and Y axis, With UV…. to ensurance the high accurate. Thick-walled castings with Stiffener configuration avoids the body deformations.

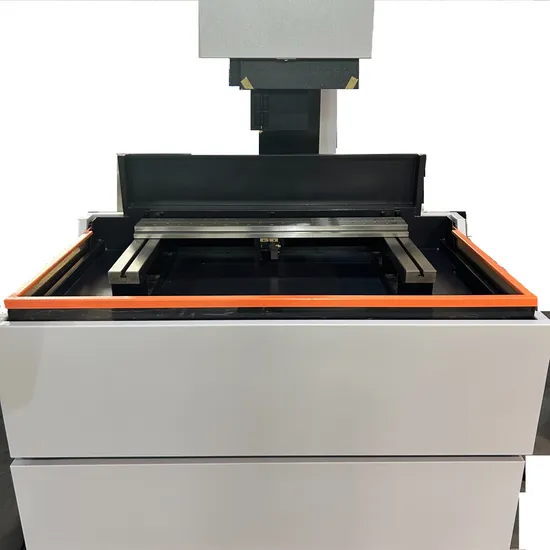

Protect Environment
Frame-shaped water-retaining structure prevents leakage of the cutting fluid in the machining area. The brand-new elevating manager make it more convenient to set work-pieces and greatly saving the space.

LED light
LED light with working indicator light, so you can check the equipment's running state at any time.
Two ways of wire threading
It meet different machining needs, and helps to change the guider much easier.
Centralized lubrication
Centralized Lubrication for screw of guide rails keeps workshop clean and tidy.
Comprehensively meet the latest national standard for medium-speed wirecutting EDM(JB/T11999.1-2014)
Four-axis (X, Y, U and V) AC servo integrating low-speed wire cutting technologyand combined with four-axis ball screw and linear guide brings unprecedentedaccuracy guarantee and substantially improves taper machining performance.
Nonelectrolyte power supply technology
High speed nonelectrolyte power to inhibit electrolytic corrosion, to prevent the formation of "softening layer" and improve the surface quality .

Four axes(X,Y,U,V) AC servo control
Imported AC servo system helps cutting speed faster and precision higher
Human-machine interactive system
Copyrighted Windows Platform
Hight-resolution 15in' large screen display
Technological parameter database



Detailed Photos

Maching Features
Checking Instrument and equipment

Packaging & Shipping

Company Profile

Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.
Company History
1966 :Suzhou No.3 Optical InstrumentFactory
1968 :Started to research Molybdenum wirecut EDM machines with photoelectric tracing
1969 : Developed and produced GDX-1model
1982 : Developed and produced SSX-3molybdenum wire cut EDM machine based on Single-board machine controller
1984 :DK7725D machine won the NationalSliver Medal
1989 : The company entered into partnershipwith COSMOS international MachineryCo.,Ltd Hongkong to set up a joint venturecalled Suzhou Sanguang Electric MachineryCo.,Ltd
1994 : Sodick Co.Ltd Japan entered intopartnership and the name of the companywas changed into Suzhou Sodick-SanguangElectric Machinery Co.,Ltd
1995 : Started to research and producedDK7632 Brass wire cut EDM machine
2008:Relocated at No.145 SongshanRoadSND China, plant area 38060m²
2010 :Multi-cutting molybdenum wire cutmachine, HA series were released
2012 :The latest Brass wire cut machine, LAseries were released
2014 :Became a public company ,stockcode :430414
2016 : Developed and produced HB400,whichwon IF award of 2017
2018 :Released the latest Linear Motor machine HB400L
