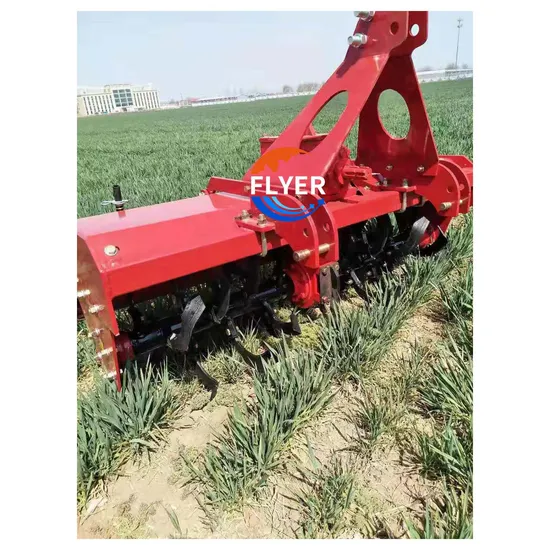

1500mm Working Width MID-Mounted Rotary Tiller for Tractor

1500mm Working Width MID-Mounted Rotary Tiller for Tractor

US$503.00
1-9 Pieces
US$487.00
10-99 Pieces
US$480.00
100+ Pieces

Basic Info.

Model NO.
1GQN-150
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Fixed Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Red
Warranty
1 Years
Working Width(mm)
1500
Working Depth(mm)
120-180
Pto Speed(R/Min)
540-720
Blade Quantity
34
Blade Model
1t225
Weight(Kg)
219
Match Power(HP)
30-55
Transport Package
Steel Frame Package
Specification
150cm
Trademark
Flyeragro
Origin
China
HS Code
8432290000
Production Capacity
5000 Sets / Year

Packaging & Delivery

Package Size
175.00cm * 90.00cm * 70.00cm
Package Gross Weight
219.000kg

Product Description

Product Description
Rotary tiller is a tillage machine that is matched with tractor to complete tillage and harrow operations. It has strong soil crushing ability. It can make the soil finely crushed in one operation, the soil and fertilizer are evenly mixed, and the ground is level. It meets the requirements of dry land sowing or paddy field planting, which is conducive to fighting for farming time, improving work efficiency, and making full use of the power of the tractor. It has the functions of breaking the plow bottom, restoring the structure of the soil plow layer, improving the ability of soil to store water and retaining walls, eliminating some weeds, reducing diseases and insect pests, leveling the ground, and improving the standards of agricultural mechanization operations.
Product Parameters
Model / 1GQN-120 1GQN-125 1GQN-140 1GQN-150 1GQN-160
Working width mm 1200 1250 1400 1500 1600
Working mm 120-180 120-180 120-180 120-180 120-180
PTO speed R/min 540-720 540-720 540-720 540-720 540-720
Blade quantity / 24 26 30 34 38
Blade model / 1T225 1T225 1T225 1T225 1T225
Weight kg 200 207 214 219 255
Match power HP 20-30 20-40 25-50 30-55 40-60
One unit Package size mm 1450*900*700 1550*900*700 1650*900*700 1750*900*700 1850*900*700
Five unit Package size mm 1450*900*700 1370*600*2500 1510*600*2500 1610*600*2500 1710*600*2500

Model / 1GQN-180 1GQN-200 1GQN-220 1GQN-240 1GQN-300
Working
width		 mm 1800 2000 2200 2500 3000
Working mm 120-180 120-180 120-180 120-180 120-180
PTO speed R/min 540-720 540-720 540-720 540-720 540-720
Blade
quantity		 / 50 58 62 70
Blade model / 1T245 1T245 1T245 1T245 1T245
Weight kg 358 395 422 458
Match power HP 55-75 65-100 75-120 90-130 100-150
One unit
Package
size
mm
2050*900*700
2250*900*700
2450*900*700
2650*900*700
Five unit
Package
size
mm
2010*750*2500
2210*750*2500
2410*750*2500
2610*750*2500

Model / 1SGQN-120 1SGQN-125 1SGQN-140 1SGQN-150 1SGQN-160
Working
width		 mm 1200 1250 1400 1500 1600
Working mm 120-180 120-180 120-180 120-180 120-180
PTO
speed		 R/min 540-720 540-720 540-720 540-720 540-720
Blade
quantity		 / 28 30 36 42 42
Blade
model		 / 1T225 1T225 1T225 1T225 1T225
Weight kg 255 267 284 310 322
Match
power		 HP 20-30 20-40 25-50 30-55 40-60
One unit
Package
size
mm
1350*900*700
1550*900*700
1650*900*700
1750*900*700
1850*900*700
Five unit
Package
size
mm
1450*900*700
1370*600*2500
1510*600*2500
1610*600*2500
1710*600*2500

Model / 1GQN-180 1GQN-200 1GQN-220 1GQN-240 1GQN-300
Working
width		 mm 1800 2000 2200 2500 3000
Working mm 120-180 120-180 120-180 120-180 120-180
PTO speed R/min 540-720 540-720 540-720 540-720 540-720
Blade
quantity		 / 48 54 60 70
Blade model / 1T245 1T245 1T245 1T245 1T245
Weight kg 351 380 420 465
Match power HP 55-75 65-100 75-120 90-130 100-150
One unit
Package
size
mm
2050*900*700
2250*900*700
2450*900*700
2650*900*700
Five unit
Package
size
mm
2010*750*2500
2210*750*2500
2410*750*2500
2610*750*2500

FAO
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time?
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
