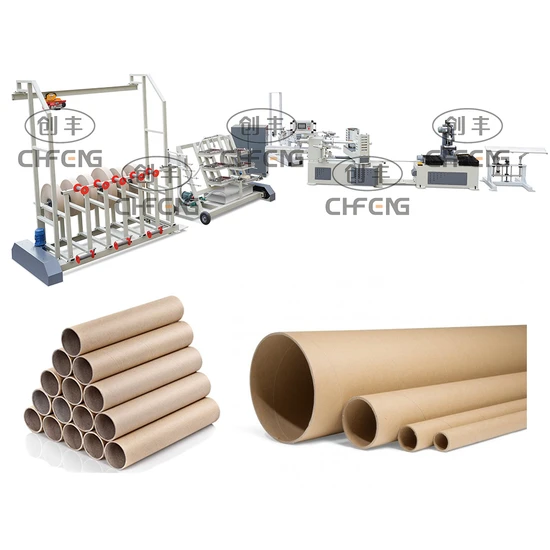

Multi Knives Heavy Duty Paper Tube Core Making Machine Winding Machine Cfjg-30 4 Heads Restaurant Box Making Machine
| US$10,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
CFJG-30
Paper Core Usage
Industry
Certification
CE
Condition
New
Processing Type
Winding Machine
Dimension(L*W*H)
5600*2250*2170mm
Showroom Location
Egypt, Canada, United Kingdom, Viet Nam
Weight
3200 Kg
Warranty of Core Components
1 Year
Video Outgoing-Inspection
Provided
Applicable Industries
Hotels, Manufacturing Plant
Marketing Type
Ordinary Product
Core Components
PLC, Motor
Product Type
Paper Core Machine
Voltage
380V / 3phase / 50Hz (Can Be Customized)
Application
Paper Tube Core Production
Power
3kw X3
Machinery Test Report
Provided
Transport Package
Seaworthy Packing (Wooden Case / Pallet)
Trademark
Chuangfeng
Origin
Zhejiang, China
Production Capacity
30 Set/Sets Per Month, 1-30m/Min.
Product Description
Product Description CFJG-30 Multi-cutter tube & core making machine equipped with Numerical and Multi-blades Cutting System. Suitable for toilet paper core; preservative film etc.--Synchronous cutting system controlled by servo motor -- it means the cutting part moves together with paper tube and cutting in a high precision.
-- Adopt with MULTI CUTTERS and inline cutting length reaches to 70-1400mm. Paper tubes can be finished in one time.
Technical Parameters
| Technical Parameter | Control System | ||
| Paper Layer | 12 layers | PLC | Xinjie |
| Inner Diameter | 25-100mm | Man-machine Interface | Touch Screen (Xinjie) |
| Wall Thickness | 1-5mm | Inverter | 7.5KW Delta (Taiwan) |
| Winding Speed | 0-20 meters/min | Execute Components | CHNT |
| Winding Nose | Two noses single belt | Signal Components | Hugong |
| Shaft Fixing Way | Flange | Pneumatic Components | Jingwei |
| Cutting System | Numerical Multi-blades (standard 5 pcs) | Electric Components | CHNT |
| Synchronism tracking cutting system | Servo motor synchronism | Bearing | Haerbin |
| Servo Motor | 1.3kw Yaskawa (Japan) | ||
| Gluing Way | Single / Double (can be chose) | Screw Rod | ABBA |
| Length fixing | Encoder | Slider | ABBA |
| Operator | 2-3 persons | Configuration | |
| Speed Control | By Inverter | Paper Reel Stand | 10 Layers Integral Type |
| Power Supply | 380V/3Phase/50Hz (can be customized) | Gluing System | 10 Layers Spraying Type |
| Size | Inner Paper Shelf | 1 Set | |
| Mainframe(two parts) | 5600*1600*1750mm | Surface Paper Shelf | 1 Set |
| Mandrel Shaft | 1 Piece (Size to be provide by buyer) | ||
| Working Space | 10000*6000mm | ||
| Weight | 3200kgs | Belt | 2 Pieces |
| Driving System | Belt Adjusting | Manual | |
| Main Motor | 5.5KW Wannan | Adjusting of paper reel stand & gluing shelf | Automatic |
| Motor Rotating Speed | 1400r/min | Automatically Gluing | Gluing Pump 1.5kw |
| Nose Rotating Speed | 48r/min | Lubricating Oil for Paper Tape | Automatically Supply |
| Nose Output Strength | 1000N.m | Enclosed Spare Parts | |
| Reduction Box | WPO135 | Mandrel Shaft | 1 Piece |
| Gear Box | WPO135 | Useful Tool | 1 Set |
| Driving Chain | 16A*2 | | |
Multi-knives Online Cutting System (cutting length 100-1200mm; controlled by servo motor)
Double Heads / Single Belt Spiral Winding
Equipped with 10 Layers Integral Type of Paper Reel Stand
Equipped with 10 Layers Soaking Type of Glue Stand
Machines in Cutomers' Facility
Finished Products
