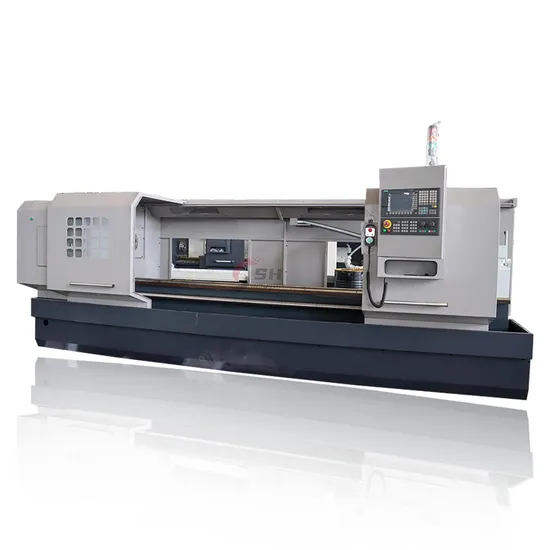

Ck6160 High Performance Metal Cutting CNC Lathe Machines

Product Description

Product Description
Ck6160 High Performance Metal Cutting CNC Lathe Machines
Product Parameters
CK series CNC Lathe machine is an economical, practical type machine tools with high quality.It has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirements.Features :Big torque ,high precision spindleHydraulic shift ,easy operateZ axis feed is directly connected which has high transmission accuracy and high positioning accuracyVertical 4 position electric toolpost with high positioning accuracyStandard configuration:GSK control systemGuideway width 400mmManual chuckManual tailstockOptional Configuration :Siemens or Fanuc systemHydraulic chuckHydraulic tailstockElectric turret /Hydraulic turretAutomatic chip conveyorApplication :CAK series CNC lathe machine is an economical ,practical type machine tools iwth good quality .The machine has a very wide use which is suitable or internal and external turning ,tapering,circular arc ,thread ,boring ,reaming of axle and disk workpiece .It also can achieve non-circular curve machining ,You can choose the CNC system and optional accessories according to your requirement .

SPECIFICATIONS	SPECIFICATIONS	Units	CK6160
	Swing over bed	mm	600
	Swing over cross slide	mm	350
	Distance between centers	mm	750/1000/1500/2000
	Spindle bore	mm	52(Optional 80)
	Spindle bore taper	-	MT6
	Spindle nose type	-	C6
	Spindle speed steps	-	Manual 2 steps
	Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)
	Turret/tool post	-	Electric 4 position
	Tool size	mm	25 x 25
	X axis travel	mm	320
	Z axis travel	mm	750/1000/1500/2000
	X axis rapid traverse	mm/min	6000
	Z axis rapid traverse	mm/min	8000
	Tailstock quill diameter	mm	65
	Tailstock quill taper	-	MT5
	Tailstock quill travel	mm	130
	Main spindle motor	kw	5.5
	Coolant pump motor	kw	0.125
	Weight for 750	kg	1900
	Weight for 1000	kg	2000
	Weight for 1500	kg	2100
	Weight for 2000	kg	2200
	Dimension for 750	mm	2200x1750x1800
	Dimension for 1000	mm	2500x1750x1800
	Dimension for 1500	mm	3000x1750x1800
	Dimension for 2000	mm	3500x1750x1800

Realistic photos
CK series CNC Lathe Machine is an economical, practical type machine tools with good quality.
C The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc,
thread, boring, reaming of axle and disk workpiece.It also can achieve non- -circular curve machining. You
can choose the CNC system and optional accessories according to your requirement.
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
