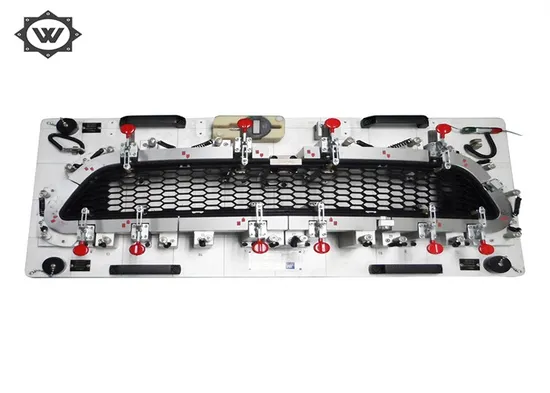

Checking/Test Fixture Auto Gauge for Auto Parts

Product Description

Checking/test fixture auto Gauge for Auto Parts

Plastic Injection Molding Description:

Cavity Material	1.2738,1.2343, 1.2344, S7, H13, P20HH, GS738H, LKM738H, 718, 8407, S136, Calmax 635 NAK80, SKD-61,NIMAX, 45#, 50#, Aluminum for prototype mold etc.
Runner	Cold runner or Hot runner :YUDO/ HUSKY/MOLD-MASTER/SYNVENTIRE/INCO/ MASTIP/ HASCO/ DME
Gate	Submarine gate, tunnel gate, side/edge gate, direct gate, pin point gate, sprue gate, diaphragm gate, fan gate, cashew gate, hook gate, hot tip, hot drop, valve gate etc.
Plastic material for parts	PS, SAN, PA, POM, ABS, PP, PET, PC, PE, HDPE, PA66+GF, PVC, TPE, TPU, TPV etc
Process	CNC, high speed carve, EDM ,wiring-cutting, drill, polish etc
Lead Time	10-30 work days depends on the structure and size of products
Package	Wooden Case Package or according to customer requirement
Price Term	EX Works, FOB Shenzhen, FOB Hong Kong, China, CFR, CIF, DDU, DDP

Product Process:
1. Mold Design Control
2. Mold Steel Hardness Inspection
3. Mold Electrodes Inspection
4. Mold Core and Cavity Steel Dimension Inspection
5. Mold Pre-Assembly Inspection
6. Mold Trial Report and Samples Inspection
7. Pre-Shipment Final Inspection
8. Export Product Package Inspection
Similar Products:
Our Company:
Win Win Mold was founded in 2006. With many years of development, it has grown up to an enterprise providing a full "turn key" services to the customers, starting with product design, prototype parts making, mold design, mold making and molding production, automotive checking fixture etc. Moreover, we are specialized in plastic injection mold designing and manufacturing. Win Win Mold builds a wide variety of Plastic Injection Molds, ranging in size from small M. U. D. Inserts to molds of 15 tons; Single cavity to multiple cavity; Proto-type to high production class 101; Standard runner/gates to hot manifolds with valve gates.
We provide molds and products to customers from a diverse range of industries including Automotive, Household electrical appliances, Electronics, Medical, Packaging, Telecommunications and Industrial tools. Win Win Mold is a full service Plastic Injection Molding manufacturer in custom manufacturing. With our experienced tool makers and setters we can achieve optimum product output in a minimum of time. Your product is molded to your specifications and put through our quality inspection department to guarantee accuracy and quality at all times.

FAQ:
1.Q: I have an idea for a new product, but I don't know if it can be manufactured. Can you help?
A:Yes! We are always happy to work with potential customers to evaluate the technical feasibility of your idea o r design and we can advise on materials, tooling and likely set-up costs.
2.Q:What are the advantages to have my parts manufactured locally?
A:Win Win Mold can offer quick reaction times to any changes in specification, batch size or material. We can ship small or large quantities anywhere in North America, Europe overnight to accommodate unforeseen changes in demand.
3.Q: My components have already been developed on CAD. Can you use the drawings?
A: Yes! DWG, DXF, IGES, Solid works and STP, X_T files can all be used to generate quotes, models and mould tools - this can save time and money in producing
your parts.
4.Q: Can I test my idea/component before committing to mould tool manufacture?
A:Yes, we can use CAD drawings to make Prototype models for design and functional evaluations or market test.
5.Q:What type of plastic is best for my design/component?
A: Materials selection depends on the application of your design and the environment in which it will function. W e will be happy to discuss the alternatives and suggest the best material.

6.Q:What type of mould tool do I need?
A:Mould tools can be either single cavity (one part at a time) or multi-cavity (2,4, 8 or 16 parts at a time). Single cavity tools are generally used for small quantities, up to 10,000 parts per year whereas multi-cavity tools are for larger quantities. We can look at your projected annual requirements and recommend the
best tooling option for you.

7.Q:Ok, I've decided to go ahead with my project. How long will it take to get my parts?
A: It can take 3 to 6 weeks to have the mould tool manufactured depending on the part's complexity, size and the number of impressions/ cavities (single or multiple). After we receive your final approval on the tool preliminary design, you can expect delivery of T1 parts within 3-6 weeks. And during mold building process, mold build Weekly Update will be provided to you every week for your better understanding of the manufacturing progress in our work shop.
