Versatile Universal Grinding Machine for Efficient Metal Surface Grinding

Product Description

Product Description

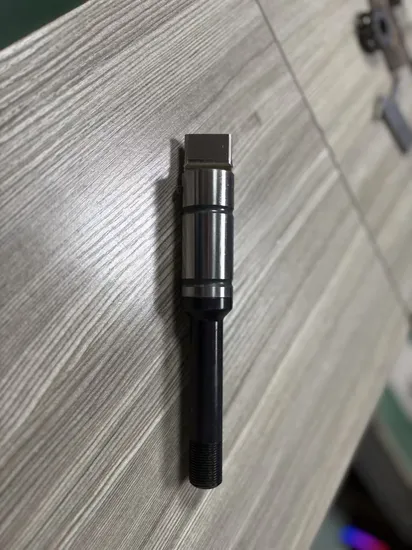

Introducing the state-of-the-art CYMT CNC Profile Grinding Machines and Punching Bar Grinding Machines, designed to deliver unparalleled precision and adaptability.
CYMT-CNC: Revolutionizing the ease of operational procedures.
Experience enhanced control and optimized performance with our cutting-edge CNC grinding machines.
User-friendly, intuitive, and easy to master for swift proficiency.

	parameter		520CNC	730CNC
Travel	Table size (x*y)	mm	200×450	300×650
	X axis travel	mm	450	650
	Y axis travel	mm	200	300
	Max center of wheel to table	mm	400	400
	Maximum load	kg	100	200
Table	Table T cell specification	mm×N	12×3	12×5
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.0001	0.0001
	Single feed		0.0001~10	0.0001~10
	Fast moving speed	mm/min	0~5000	0~5000
Z axis	Minimum feed	mm	0.0001	0.0001
	Fast moving speed	mm/min	0~5000	0~5000
grinding	grinding wheel size max	mm	Φ180×Φ31.75×20	Φ180×Φ31.75×20
	grinding wheel speed	R.P.M	0~4500	0~4500
motor	spindle motor	W	3700	5500
	the Z axis motor	W	1700	1700
	the Y axis motor	W	750	1100
	the X axis motor	W	750	1100
	cooling motor	W	90	90
	Roller dresser motor (optional)	W	750	750
	Fourth axis motor	W	750	1100
Size	height of machine	m	1.8*1.8*1.9	2.2*2.0*2.0
	floor space	m	2.1*2.3*2.1	2.5*2.5*2.2
	weight(about)	kg	≈1600	≈2800

general picture	Maximum clamping diameter	mm	25	45
	Maximum perforation diameter of indexing head	mm	25	45
	Positioning and Repeat Positioning Accuracy≤	mm	0.003	0.003
	Transverse machining length (standard installation)	mm	150	300
	Vertical processing length (standard installation)	mm	60	160

Controller Functions and Features
CYMT-CNC Control System
The Cheng Yu CYMT-CNC controller is packed with advanced features and capabilities. Boasting robust computing power and an advanced HMI function, it eliminates the need for programming knowledge with capabilities to execute extensive and intricate machining and grinding tasks. Operators can seamlessly adjust processing parameters mid-operation without restarting from the beginning, working directly from the current slot to enhance processing efficiency.
Features
1. Effortlessly bring any shape to life with a simplistic program by simply editing a tooth shape, complemented by a graphical display function for clarity.
2. Harness the grinding wheel array to restore multiple repetitive shapes on a single grinding wheel for efficient cyclic use.
3. Benefit from the automatic tool setting function which allows for easy punching bar diameter specification and YZ reference processing—data is immediately visible.
4. Handwheel simulation trial processing function mitigates risks for beginners, preventing crashes due to setup errors.
5. Additional grinding and processing complementary functions ensure that processing tolerances are effortlessly manageable.
6. Embrace the scheduled grinding function, enabling self-programmed multi-processing for streamlined operations.
7. Choose from pre-configured processing types for seamless programming. For example, simply inputting dimensions will complete waist circle processing, easily achieving complex functions like eccentricity follow-through.
8. Leverage the grinding wheel memory function, allowing previously used grinding wheels to be utilized without a knife, enhancing operational efficiency.
9. The flexibility to alter processing technologies at will opens up a world of possibilities for maximizing efficiency.
Company Profile
Cheng Yu Machinery Technology Co., Ltd., proudly rooted in Dongguan City, Guangdong Province, draws from an impressive 30-year legacy of grinding machine manufacturing experience from Taiwan. Our team consists of highly skilled technical personnel who embody this rich tradition of expertise and innovation.
As CNC machine tools continue to evolve rapidly, we are at the forefront of this dynamic industry. Embracing trends such as high-speed, precision, composite functionalities, intelligent design, open architecture, parallel drive, networking, and eco-friendly processes, we are dedicated to steering the direction of CNC machine tool development. Dongguan Chengyu Machinery Technology Co., Ltd. excels in the production and processing of machine tools and accessories, all while maintaining our steadfast commitment to our business philosophy of 'technology, innovation, reliable.' We adhere to a 'meticulous' quality policy, aiming to provide outstanding products and unrivaled customer service. Our journey starts with understanding our customers' processes, technologies, production types, and quality requirements. By leveraging our design and production technology prowess, we continually enhance the applicability of our innovative products, expanding the horizons of the numerical control industry. Our product positioning achieves high automation, precision, and quality, supported by a complete and scientific quality management system, first-class equipment, and exceptional technology. In line with market demands, Chengyu Machinery specializes in crafting high-precision CNC surface grinding machines, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. Our expertise extends to the design and manufacture of industrial robots and automated production lines, offering integrated applications. Here's a brief overview of our CNC grinding machine series: I. HS series 618 / 250 / 3060 / 4080 / 40100 (servo type / hydraulic type) Processing capacity: Capable of surface grinding and grooving with finesse. Equipped with our patented hydraulic control system (hydraulic type) for advanced performance. Function: Comes with a versatile grinding program for flat surfaces and groove cutting. Feed mode: Offers selectable front, back, left, and right feed modes with memory capability for each grinding program. Features automated grinding wheel overload protection with automatic shutdown. II. (servo type / hydraulic type) Processing capacity: Expertly handles surface grinding, grooving, and combined scheduling. Utilizes our innovative patented hydraulic control system (hydraulic type). Function: Equipped with diverse grinding programs, including surface grinding, groove cutting, sole grinding, side grinding, and unequal distance/depth displacement grinding. Grinding wheel dressing: Offers bottom plane dressing with automated rough/fine grinding dressing times and amounts during the grinding cycle, including automatic dressing and compensation. Feed mode: Has selectable front, back, left, and right feed modes with memory capability for each grinding program. Performs both equidistant and non-equidistant grooving with precision. 3. Our four-axis CNC grinding machines are available in horizontal and vertical configurations. Processing types: Capable of arbitrary equal division and skipping tooth processing. Handles waist circles with entry for AB size specifications. Manages triangle fillets with inputs for inscribed circle size B and fillet size R. Processes quadrilateral fillets with inputs for side lengths A, B, and fillet size R. Versatile in processing eccentric circles by entering eccentricity and starting/ending diameters. Handles circles by entering starting and ending diameters. Capable of processing arcs with inputs for arc size and rotation angle. Accommodates step differences, rotation profiles, and more with ease. Processing schedules can be conveniently saved as files, ensuring effortless future access.
FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Shenzhen/Guangzhou.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you can compare the
price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to
quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.
