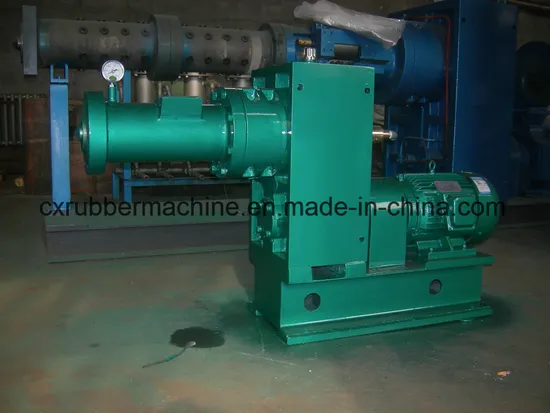

Silicone Rubber Extruder Machine/Rubber Extrusion Machine/Rubber Extruding Machine

Product Description

silicone rubber extruder/rubber extruding machine/rubber extrusion machine
1. SGS, ISO9001: 2008, CE certification
3. Low noise, high safety and convenient
5. Competitive price
6. Customizable
7. Delivery within 30 days.
8. Sell to 126 countries on 6 continents.
Rubber Extruder Machine with Frequency Converter
structural features:
1. The extruder can be equipped with head, clients also self-equipped according to clients needs.
2. The extruder body with spiral water vapor channel, with good results thermostat and thermometer with thermocouple and body temperature, feeding mouth is equipped with feed roller to enhance feeding effect.
3. Screws and bushings are made of nitrided steel and after nitriding treatment, with sufficient strength and wear resistance.
4. The Rubber extruder Reducer with ZLYJ (hard-tooth) series reducer or ZQ (ordinary) series reducer. ZLYJ (hard-tooth) series reducer, gear for the six precision, carburizing and grinding of cylindrical gears, low noise, long life, to withstand force; ZQ (ordinary) series reducer relatively hard-tooth reducer, noise, life is shorter.
5. This machine adopts frequency conversion motor drive can be specified speed range control, easy to operate.
6. The pipeline can pass steam and cooling water, the body and the screw for heating and cooling.
7. We can design and manufacture all kinds of non-standard rubber machinery according to the requirements of the customers.
Technical Parameters:

Type and spec.	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia.(mm)	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
Screw rotational speed(r/min)	20.27 35.47	27.40 53.72	20~60	27~81	22.4~67.2	19.7~59.1
Motor power(kw)	7.5	17	30	15.3~55	33.3~100	33.3~100
Overall dimension L×W×H(mm)	1600×675×1053	2050×735×1275	2770×665×1300	3585×814×1470	4549×1140×1750	4950×1150×1483
Capacity (kg/h)	50~80	62~270	100~350	800	1500~2200	3500
Total weight(t)	1.5	2.6	3.3	4.5	7.21	9

FQA-Problems for customer concern:
About machine performance quality
1. Q: How to guarantee the quality of outsourcing parts?
A: First choice more than 4 suppler by tender, There are strict system and process for inspecting outsourcing parts. And there are outsourcing inspectors, after inspection, qualified goods, labeling and storage. Not qualified, return.
2. Q: Which brand of electric part?
A: Use world famous brands, Siemens, Omron, Toshiba, Schneider, ABB Customer can specify the brand.
3. Q: Which PLC:
A: Siemens, Omron, Mitsubishi
4. Q: How to control the quality?
A: There are inspectors for inspecting equipment quality and performance, after a ssembly, machine run continuously for at least 12 hours at one time, Total running time should be not less than 48 hours.
About installation
1. Q: When the guide engineer arrive at customer's factory?
A: If need installation on site, engineer will arrive at factory within one week after machine arrived at factory.
About after-sales service
1. Q: What is the warranty time?
A: 5 years after machine arrived at factory
2. Q: How to solve the problem?
A: Within half an hour after getting customer' problem, inform the solution way, there are three ways for different conditions. 1, Which can be solved by phone or Email, it will be solved in two hours. 2. Which can be solved by Remote Control, it will be solved within four hours(machine is equipped by Remote Network Control Problem). 3. Which need solve it on site, engineer arrive at factory within one week(in the two years warranty date, engineer has the visa any time of the country where the machine.
