Basic Info.
Certification
CE, ISO 9001:2000
Application
Paper, Plastic, Leather, Fabric, Gasket
Name
Digital Cutting Machine
Max. Cutting Speed
1200mm/S
Multifunctional Head Cutting Tools
Oscillating Knife,Driven Rotary Cuttting Tool
Cutting Thickness
0.1-20mm
Transmission Interface
Ethernet
Motor
Panasonic Servo Motor
Transmission System
Smtycc Linear Rail and Rack
Rated Power
11kw or Others
Operation Properties
Online
Safety Device
Infrared Blocking Device,etc
Cutting Materials
Fabric, Leather, PVC and Other Flexible Materials
Transport Package
Wooden Cases.
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
250.00cm * 160.00cm * 90.00cm
Package Gross Weight
1000.000kg
Product Description
Yuchon Machine Advantages:
1. Equipped with Yuchen intelligent cutting head, the cutter can be changed according to the need, all kinds of gaskets can be effectively cut, and the practicability is strong.
2. Equipped with automatic feeding device, which can realize continuous feeding, large-span cutting, unlimited theoretical cutting length, improve production efficiency, and high degree of automation.
3. Yuchen CNC machine tools have high cutting accuracy and small errors.
4. Vibrating knife cutting, the cutting surface is smooth and round, without secondary processing, can be used directly, reducing production procedures and improving production efficiency.

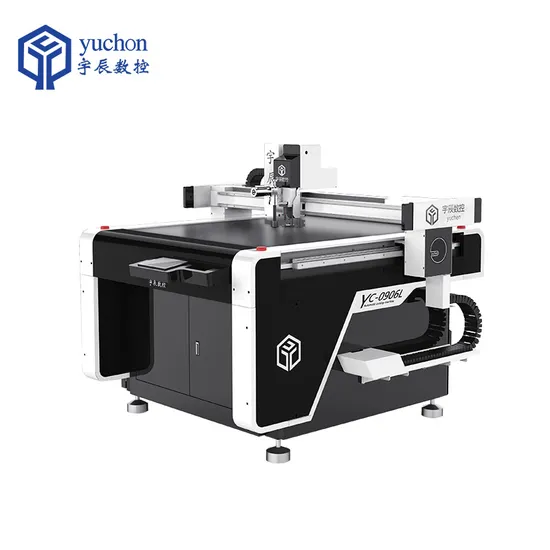

Brand: Yuchon
Model: YC-0906L(size can be customized)
Work Size: 900*600mm
Applicable cutting materials: asbestos gasket, graphite gasket, rubber gasket, etc
cutting tool: Pneumatic knife , Oscillating knife
Product Parameters
Model | YC-1625L YC-1625A | YC-1630L YC-1630A | YC-1830L YC-1830A | Other sizes are customizable |
Working area | 2500×1600mm | 3000×1600mm | 3000×1800mm |
Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime |
Safety device | Infrared blocking device,Emergency stop button switch, Intelligent anti-collision device. sensitive response; safe and reliable |
Max. cutting speed | 1200mm/s |
No-load speed | 1500mm/s |
Multifunctional head cutting tools | Oscillating knife cutting tool, Driven rotary cutting tool,Pneumatic cutting tool, Milling tool, Kiss cutting tool,V-cutting tool, Creasing wheel, Punching tool, Drawing pen etc. |
Cutting thickness | 0.1-20mm ; 0.1-60mm0.1-20mm (subject to material) ; 0.1-60mm(Optional) |
Cutting accuracy | ±0.1mm |
Transmission interface | Ethernet |
Transmission system | Panasonic Servo Motor/SMTYCC Linear rail and rack |
Fixed mode | Vacuum absorb |
Supply voltage | AC 220V 380V±10%,50HZ |
Rated power | 11KW or others |
After Sales Service
FAQ 1.payment terms:
L/C,Western Union,T/T,Paypal
2.Delivery time:
Standard machine:7-15 days
Customized machine:10-25 days
3.Packing:
plastic film inside and plywood case for outside packing
4.Transportation fee
Ship by sea or airplane, railway. Actual cost reimbursement
5.instal
We offer video teaching,and we have professional technicians who will help you to install, guide and train
6.After sales service
1).3 year free warranty
2).Life time free maintenance service.
3).24 hours online service, free technical support with different languages.
4).Door to door technical support when needed
