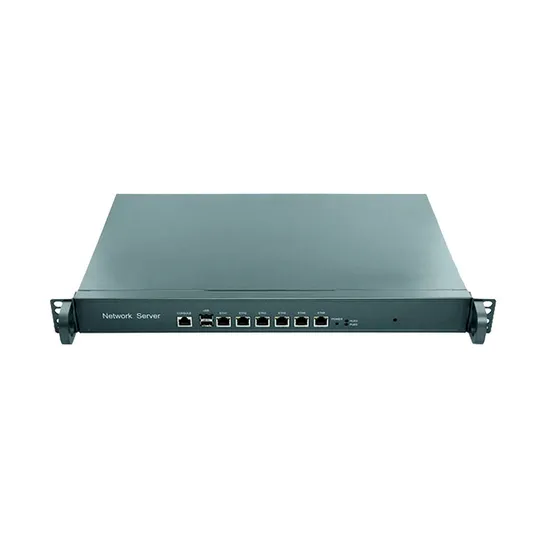

X86 6 LAN Network Appliance, Network Firewall
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
R01-UL6B
Transfer Rate
10/100/1000Mbps
Firewall
Firewall
Ports
6
Port Structure
Modular
Application
Enterprise
Network
Gigabit LAN Ports
Performance
Line-Rate Router
Architecture
1u Rackmount
Processor
LGA1155 2th/3th Intel Core I3/I5/I7 CPU
RAM
2*DDR3 SODIMM Slot, Support Dual Channel 1333/1066
LAN
Intel 82583V, 1000/100/10Mbps,6X LAN (Bypass Custo
Installation
1u Rackmount
Product Name
Server 1u
Transport Package
Netrual Carton Box
Specification
430mm(W)*281mm(D)*45mm(H)
Origin
Shenzhen
HS Code
8471504090
Production Capacity
50000PCS/Year
Product Description
1U Rackmount Metal EnclosureLGA1155 2th/3th Intel® Core™ i3/i5/i7 CPU
2*DDR3 SODIMM slot, support dual channel 1333/1066MHz memory, up to 16GB
Intel 82583V, 1000/100/10Mbps,6x LAN (Bypass custom optional)
1U 6 Gigabit LAN 2th/3th Intel® Core™ i3/i5/i7 CPU Rackmount Network Appliance
| Chassis | Color | Light silver black |
| Dimensions | 430mm(W)*281mm(D)*45mm(H) | |
| Structure | 1U Rackmount Metal Enclosure | |
| Material | Galvanized steel sheet | |
| Motherboard | Model No. | H67SL |
| Processor | Support LGA1155 2th/3th Intel® Core™ i3/i5/i7 CPU | |
| BIOS | AMI 32MB Flash ROM | |
| Memory | Provide 2*DDR3 SODIMM slot, support dual channel 1333/1066MHz memory, up to 16GB | |
| Storage | 2.5'HDD | 2*2.5" or 1*3.5" HDD extension |
| CF | 1* CF card socket (CF and MSATA optional) | |
| SSD | 1* MSATA slot , support Intel protocol SSD, transmission rate up to 6Gbps | |
| System Feature | Ethernet | Intel 82583V, 1000/100/10Mbps,6x LAN (Bypass custom optional) |
| USB | 2* USB2.0 | |
| Serial Port | 1* CISCO COM (COM1 and USB4 optional) | |
| Display | 1* VGA | |
| Audio | N/A | |
| Expansion Interface | 2* MINIPCIE(1 is MSATA,1 is for WIFI /3G Model) | |
| Indicator | Power Indicator Light,HDD Indicator Light | |
| System Control | System Switch and AC power connector | |
| Wireless | N/A | |
| Power | Power | 220W |
| Reliability | Installation | 1U Rackmount |
| Operating T | -10°C~60°C | |
| Storage T | -20°C~70°C | |
| Relative humidity | 5%-95%, no condensing | |
| Vibration | 0.5g rms/5-500HZ/random/operating |
