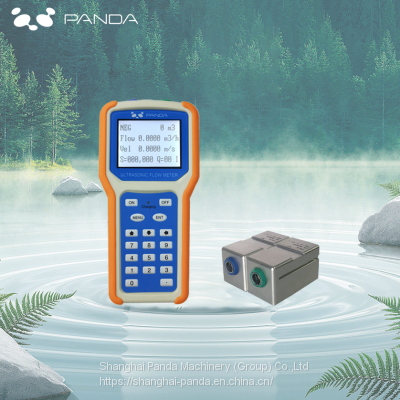

Digital Water Flow Meter Price Handheld Flow Meter Ultrasonic With Data Logger
Product Details
Product Details
Product Description
Product DescriptionProduct Description
Features
lSmall Size, Easy To Carry And Simple Installation
lBuilt-in Chargeable Lithium Battery Can Continuously Work 14 Hours
l4 Lines Display Velocity, Flow Rate, Volume And Meter Status
lClamp-on Mounted, Unnecessary Pipe Cutting Or Processing Interruption
lFluid Temperature Range -40℃~260℃
lBuilt-in Data Storage Is Optional
lSuitable For DN20-DN6000 Flow Measurement By Selecting Different Size Transducers
lBi-directional Measurement, Flow Range From 0.01m/s To 12m/s
Specification
Transmitter
| Measuring Principle | Transit-time |
| Velocity | 0.01 - 12 m/s, Bi-directional Measurement |
| Resolution | 0.25mm/s |
| Repeatability | 0.10% |
| Accuracy | ±1.0% R |
| Response Time | 0.5s |
| Sensitivity | 0.003m/s |
| Damping | 0-99s (settable by user ) |
| Suitable Fluid | Clean or tiny amounts of solids, air bubbles liquid , Turbidity<10000 ppm |
| Power Supply | AC: 85-265V, built-in chargeable lithium battery can continuously work 14 hours |
| Protection Class | IP65 |
| Operating Temperature | -40℃ ~ 75℃ |
| Enclosure Material | ABS |
| Display | 4X8 Chinese Or 4X16 English,Backlit |
| Measuring Unit | meter,ft,m³,liter,ft³ ,gallon,barrel etc. |
| Communication Output | Data Logger |
| Security | Keypad Lockout, System Lockout |
| Size | 212*100*36mm |
| Weight | 0.5kg |
Transducer
| Protection Class | IP67 |
| Fluid Temperature | Std. transducer: -40℃~85℃(Max.120℃) |
| High Temp: -40℃~260℃ | |
| Pipe Size | 20mm~6000mm |
| Transducer Size | S 20mm~50mm |
| M 40mm~1000mm | |
| L 1000mm~6000mm | |
| Transducer Material | Std. Aluminum alloy, High Temp.(PEEK) |
| Cable Length | Std. 5m (customized) |
