environmental stress cracking resistance tester comply with ASTM D1693

Product Description

Product Description

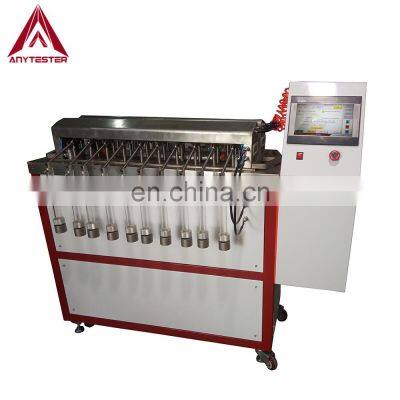

Product DescriptionProduct Application.AT415 environmental stress cracking resistance tester is used to evaluate the stress crack resistance of notched plastic sheet under constant tensile load. It is mainly applicable to the geomembranes used on the landfill site. Dumbbell shaped notched test specimens from a polyolefin sheet are subjected to a constant tensile load in the present of a surface-active agent and at an elevated temperature. The time to failure of test specimens is recorded and the results of a series of such tests conducted at different stress levels are presented by plotting stress level against failure time for each stress level on a log-log axis.STANDARDSASTM D5397Note: This environmental stress cracking resistance tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.SPECIFICATIONS FOR AT415 NOTCHED CONSTANT TENSILE LOAD TESTERNo. of test unit 6 or customizeWorking position 5pcs per test unitLoad range 200~1370gTube weight196±3gTube bearing weight600gTiming range 1s~9999h59min59sTiming accuracy 1sTiming deviation1minVolume of bath125LTemperature control range RT~80℃Display resolution0.1℃Temperature accuracy ±0.5℃Clamp axis diameter Φ6Operation temperature 10~35℃Heating power3.0kwPower supply Single phase, (187~242) VAC, 50Hz, 4.5kwDetails & FeaturesTouch Screen Control> Large LCD display > Touch screen control make the operate simple> Modularization desigmake after sale service easy Modularization Design> English and Chinese language changeable> Remote control for software update anytime> Historical date date query and print available> Test report can be output and store on PCHigh efficient performance> 6 test units can work separately> 5 working positions per test unit> test 30 specimens at the same timeHigh quality material> High quality stainless steel make the machine long life> Good machinery technology perform nice appearancePacking & DeliveryPackagingSize85 (L) * 51 (W) * 94 (D)Weight60KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one container
