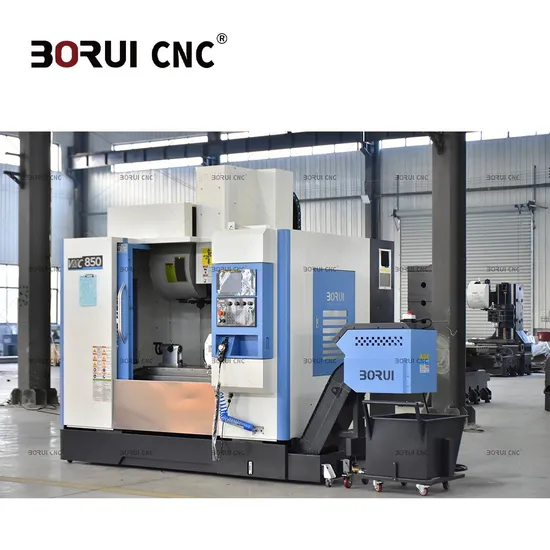

Vmc850 Low Cost CNC 3axis 4axis Small Vertical Machine Center Specification Price

Vmc850 Low Cost CNC 3axis 4axis Small Vertical Machine Center Specification Price

US$19,999.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
vmc850
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Spindle Taper
Bt40
Product Name
3-Axis Vertical CNC Machining Center
Cutting Feed Speed
10m/Min
Processing
Maching Center
Spindle Speed
8000rpm
Control System
Siemens GSK Fanuc (Optional)
Table Size
1000*500mm
Max. Table Load
400kg
Tool Changer Type
Disc Type
Atc
16
Transport Package
Plywood Case Overall Dimension
Specification
2780*2450*2700mm
Trademark
BORUI
Origin
Shandong China
HS Code
8457101000
Production Capacity
500 Pieces/Year

Packaging & Delivery

Package Size
230.00cm * 260.00cm * 280.00cm
Package Gross Weight
5600.000kg

Product Description

Vmc850 Low Cost CNC 3axis 4axis Small Vertical Machine Center Specification Price
Product Description
1. Adopting the world advanced numerical control system, the M60S series are servo-driven, ensuring the stability of the control system is high, the speed is fast, and the surface is smooth.
The advantages of high precision, the ability to make moulds, is the best choice for mold production.
2. All M60S series controllers are marked with RISC64 bit CPU.
3. Coordinate display value conversion can be freely switched (program value display or manual insertion quantity display switching)
4. Standard internal carrier profile function, working position coordinates and central point measurement functions.
5. Buffer correction function extension: can correspond to IC card/computer link B/DNC/MDI mode.
6. Edit the edit mode in the edit screen, and switch to edit or edit the whole page.
7. Graphical display function improvement: can contain the prop path information to fully display the work coordinates and the actual location of the props compensation
Product Parameters

Specifications
Units
VMC850
Table size
mm
1000x500
X axis travel
mm
800
Y axis travel
mm
500
Z axis travel
mm
500
Max. worktable load
kg
500
T slot(number-width-pitch)

3-18*130
Max. spindle speed
rpm
8000(Optional:10000/12000 )
Spindle taper
mm
BT40
Main motor power
kw
7.5/11
X/Y/Z rapid traverse speed
m/min
24/24/20
Cutting feed speed
mm/min
1-8000
Guide rail type

Linear rail
Distance from spindle axis to column surface
mm
590
Distance between spindle nose and worktable surface
mm
140-640
Positioning accuracy
mm
±0.008
Repeat positioning accuracy
mm
±0.005
Tool magazine

Arm 24 (disc type)
Max. tool diameter
mm
φ78 (Adjacent)/ φ120(Apart)
Max.tool weight
kg
8
Machine weight
kg
5600
Overall dimension
mm
2600X2300X2800

Standard Accessories:.
Armless type tool magazine
Automatic lubrication system
Cooling system
Heat Exchanger
Pneumatic system Spindle center coolant
Full Cover machine enclosure Higher speed of Spindle
Air system/ Air gun Air conditioner
Optional Accessories
System:FANUC,Siemens,GS etc Arm type ATC
4axis or 5axis
Automatic chip conveyor
Detailed Photos

Company Profile
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online on ******, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal on ****** online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
