Gasbag Type Pressurized Double-Sided Grinding Machine with Diamond Grinding Plate

Product Description

Description

KIZI provides the most efficient and reliable solutions for flat grinding and polishing of components utilized in medical, mechanical seals, ceramic,automotive optical, photonic, MEMS, wafer and compound semi-conductor applications and other industrial markets.

Products Show

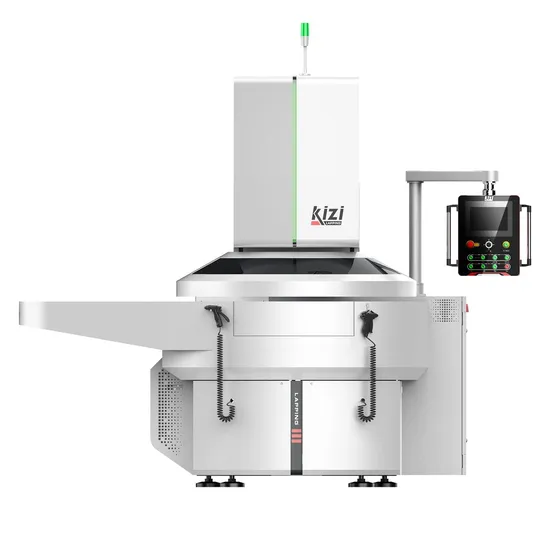

KS700YQ Gasbag Type Pressurized Double Sided Grinding Machine
Usage: Major in precise grinding valve plate, valve piece, friction plate, rigidity seal ring, air cylinder piston ring, oil pump vane etc precision hardware or metal and non-metal hard material's dual-plane grinding .

Product Details

Machine Processing Principle
Through the simultaneous rotation of the upper and lower grinding plates and the central gear in the middle, the workpiece in the fixture is driven to do planetary wheel movement, thus realizing the surface grinding and polishing. The parallelism, flatness up to 1um, and the best surface roughness can reach 0.2um.
Semi automatic feeding table
Upper plate rocker arm device with matching feeding working table improved the Pick & Place convenience

Applications

Features

1. Use touch screen human-machine interface, Schneider (PLC + touch screen) programme control system;
2. Use Japanese "NSK" shaft system ensures precision, durability, stability and safety of the machine;
3. Use precision contact Japanese "SONY" online monitoring, the thickness tolerance and flatness tolerance of the processed products can be controlled at ± 0.002mm;
4. Upper plate rocker arm device with matching feeding working table improved the Pick & Place convenience;
5.The operation of the whole machine uses an independent frequency conversion drive motor, so that the upper plate, lower plate, centre wheel, speed to achieve the best ratio, the carrier to achieve forward and reverse rotation, to meet the needs of the repair process of the plate;
6. Segmented pressure control: Use Japanese "SMC" pneumatic components, segmented precision pressure control, suitable for rough grinding, medium grinding, fine grinding, polishing and other process needs;
7.Use the gasbag process, with SMC electrical proportional valve control, precise control of pressure;
8. To meet different material machining requirement, develop customize diamond grinding plate with different formula;
9. Precise magnetism and paper tape filtration system;
10. Semi-automatic loading and unloading operation with optional loading table, saving loading and unloading operation time.

Processing Case

Our Service

1. Factory with competative price,high quality and stability
2. R&D Dep. with 20 technicians, 5 of them in decades experience
3. Free charge of customer sample making
4. Completed After sales service and expertise support from Taiwan

Our Company

Dongguan Kizi Precision Lapping Mechanical Manufacturing Co., Ltd. is an affiliated company of Fushan Industrial Group, which mainly develops, manufactures and sells high precision surface grinding machines, precision surface polishing machines and other CNC equipments and their supporting consumables. Our products are widely used in metal, non-metal (including ceramics, sapphire) parts lapping and polishing process, the workpiece can obtain the best 0.2um flatness and 0.02um roughness. Kizi's mission is "to provide the best lapping and polishing solutions for our partners", and with more than 20 years of rich lapping and polishing technology from Taiwan, kizi's R&D team has been constantly making technical innovations, breaking through the technical difficulties of new projects such as sapphire and ceramic lapping and polishing, and obtaining many patents. The matching lapping powder and lapping liquid all meet the environmental protection requirements and obtain SGS certificate; the company successfully introduced ISO9001 quality certification system to ensure that all product quality is in line with the standards.
Workshop & Lab
Exhibition
Patent

Packing & Delivery

Packing Details : Packing, 1 pcs/carton
Delivery Details : Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity

FAQ

Q1. Are you the manufacturer ? Yes, we are the manufacturer with more than 10 years' experiences in the valve grinding machine & Testing equipments design & development and manufacture. Q2: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity. Our delivery time depends on the machine model, please contact us when inquiry for detailed information.
Q3. What is your mininal order qty? We are manufacture the machines for the industry, the mininal order is one.Q4. Do you provide samples ? is it free or extra ?
A:No, we could not offer the machine sample for free charge but can provide free proofing for the customer.
