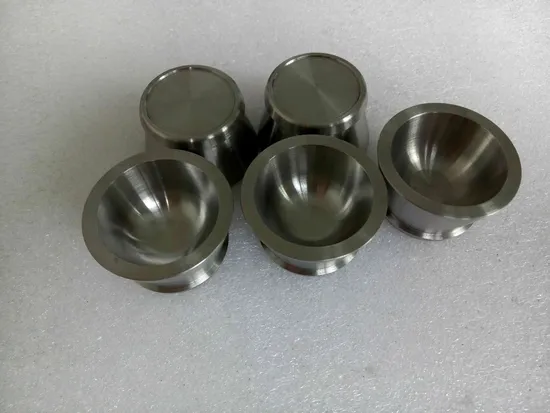

99.95% Purity of Tungsten Crucible Boat Target
| US$50.00-200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
tungsten
Alloy
Tungsten
Shape
Square
Type
Tungsten Sheets
Delivery Time
10 Days
Transport Package
Wooden Case
Specification
According drawing
Trademark
szzzyj
Origin
China
Production Capacity
100000000pieces/Year
Product Description
Product Description Product Description (1) Sintering tungsten crucible:Density: 18.0~18.5g/cm3
Working Temperature: 1800~2600DC
(2) Forging Tungsten Crucible:
Density: 18.5~19.0g/cm3
Woring Temperature: 1800~2600DC
| Description | Purity | Density | HardnessHV(reference) | Dimension |
| W crucible | ≥99.95 | ≥17.8g/cm3 | ≥200 | accordig drawing |
| Product Name | Tungsten Sputtering Target |
| Material | Tungsten |
| Color | Silvery white |
| Other Name | W sputtering target , w target |
| Purity | 99.95% |
| Brade | MDL |
| Shape | Planar ,tablet, rotatable ,rod |
| Density | 19.35 g/cm3 |
| Item Name | High purity W Sputtering Target Tungsten target 99.95% |
| Purity | 99.95% |
| Shape | Flat/rotary target, according to your request |
| Available size | Round: dia 25~300mm, Thickness:3~10mm Rectangular: Length up to 1500mm Customization is available |
| Certificates | ISO9001:2008, SGS, The third test report |
| Technics | Hot isostatic pressing |
| Application | Widely used in coating processing industries A: Electronic and Semiconductor Application. B: Decoration and Coating Application. etc. |
| Detailed information | Tungsten is silver-white metal with similar appearance to steel. Tungsten has high melting point and low vapor pressure, the evaporation rate is also small. The main applications are manufacture filament and high-speed cutting alloy steel, super-hard molds and optical instruments, chemical apparatus. Tungsten Rods application: l Suitable for producing ion implantation parts l For producing electric light source parts and electric vacuum components l For producing heating elements and refractory parts in high temperature furnaces l Used as electrodes in the field of rare earth metal industry |
| Quality Standard (99.95% W) | |||
| Element | Value (<ppm) | Element | Value (<ppm) |
| Fe | 5 | Mo | 10 |
| Ni | 3 | P | 1 |
| Al | 2 | C | 5 |
| Si | 3 | O | 3 |
| Ca | 3 | N | 3 |
| Mg | 2 | | |
(1) Sintering tungsten crucible:
Density: 18.0~18.5g/cm3
Working Temperature: 1800~2600DC
(2) Forging Tungsten Crucible:
Density: 18.5~19.0g/cm3
Woring Temperature: 1800~2600DC
| Description | Purity | Density | HardnessHV(reference) | Dimension |
| W crucible | ≥99.95 | ≥17.8g/cm3 | ≥200 | accordig drawing |
