Finger Jointing Machine Cutter Mxb3518, Smallness Woodblock Process Equipment/ Finger Joint Production Process with Double Blades

Product Description

1, Application:
This machine used for waste wood recycling, will have an ear on construction sites and other regions, waste wood to open after the tooth comb, the glue wood machine pressure, can be achieved using length, this process of regeneration, wood can be used as a new wood, for the world to save energy and cost savings for the enterprise.
2,Technical parameters

Technical Parameters	Figer jointer	Figer shaper MXB3518A-B	Figer shaper MXB3518C-C	Belt conveyor
Max working length	5000mm/6200mm	150mm-900mm	150mm-900mm	900mm
Effective working width	30mm-150mm	590mm	590mm	590mm
Effective working length	12mm-70mm	18mm-150mm	18mm-150mm	18mm-150mm
Cutting saw rotary	2840r/min	4150rpm	4150rpm
Fret saw motor		2840rpm	2840rpm
rotary speed
Shaper spindle diameter		50mm	50mm
Shaper spindle		6750rpm	6750rpm
rotary speed
Shaper motor power		11kw	11kw
Cutting saw motor	2.2kw	4kw	4kw
Fret saw motor		0.75kw	0.75kw×2pcs
Feeding motor power		0.55kw	0.55kw×2pcs	0.55kw×1pcs
Oil station motor power	4kw	2.2kw	2.2kw
Working speed	70m/min
Working air pressure	0.8Mpa
Max oil pressure	130kgs/c m²
Oil station motor power	4kw
Frequency motor power		1.1kw	1.1kw	Frequency control
Machine dimension	(6100×1250 ×1600) mm (7300×1250 ×1600) mm	(2800×1650 ×1450)mm	(3300×1900 ×1450)mm	(1700×730 ×980)mm

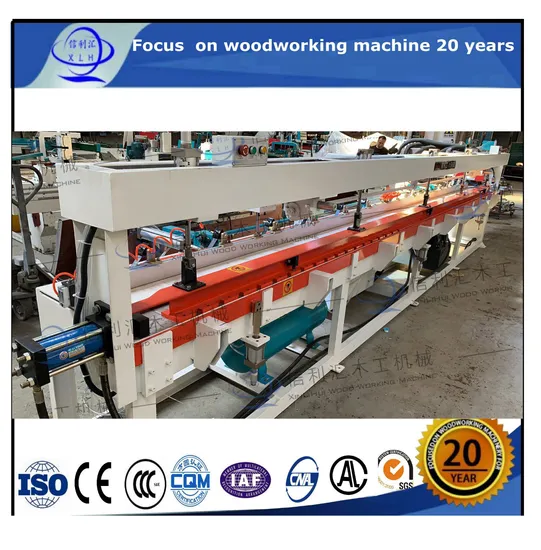

3,Some pictures of machine for you:
4, Main Features:
1.Guide rail of finger joint shaper's conveyor is japan precision linear guide rail to gurantee the shaping accuracy .
2.The design for finger joint shaper is double blades+tooth-tenon knife assembly to provide high precision.
3.The conveyor table of finger joint shaper adopts German pneumatic hydraulic conveyor system to control bakc and forth ,smoothly,low maintenance,high quality .
4.The second push part of finger joint assembler adopts long+short double pushing board design,
by this kind of structure ,it can assemble very short workpiece to reduce the cost .
5.Whole machine is conveniently operated by PLC Central integrated programmable controller. 5, Advantage:
1.Save wood and material cost
2. Semi-automatic production line greatly improves the working efficiency of workers and saves labor costs
3.Two people of the complete set of machinery can complete the operation, with low safety risk and low accident rate of work-related injury. In addition, the safety protection measures of the wood receiving machine are in place, making the whole operation safe and reliable.
