Phase Converter 10kVA Single Phase 220V to Three Phase 380V with Neutral Line

Product Description

Product DescriptionOverview
The principle of single-phase 220V to three-phase 380V converter is that the inverter power supply that has undergone AC→DC →AC conversion is called single-phase to three-phase power supply, which is different from the variable frequency speed control controller used for motor speed regulation. The main function of single-phase to three-phase power supply is to convert 220vsingle-phase of existing AC power grid into three-phase 380V sine wave power supply. The ideal AC power supply is characterized by stable frequency, stable voltage, zero internal resistance and pure sine wave (no distortion) voltage waveform.The inverter power supply is very close to the ideal AC power supply. Therefore, it can completely replace remote areas or are as that cannot apply for three-phase power supply.
However, the output power of single-phase to three-phase power supply is determined by the 220V current of the municipal power supply. Single-phase to three-phase power supply, with microprocessor as the core, is made in MPWM mode, designed with active component IGBT module, and adopts digital frequency division, D/A conversion, instantaneous value feedback, sine pulse width modulation and other technologies to make the capacity of a single machine up to 300KA. The output of isolation transformer is used to increase the stability of the whole machine. It has the characteristics of strong load adaptability, good output waveform quality, simple operation, small size. light weight, short circuit over current, overload, overheating and other protection functions to ensure reliable operation of the power supply.
Characteristic
1.The 220V input of ordinary mains electricity eliminates the tedious formalities and costs of applying for three-phase electricity.The output uses three-phase 380V power for industrial use, which is charged according to single-phase power.
2.The core components are all imported devices with stable performance and long service life.t is safe and reliable, and the input single-phase electricity is completely electrically isolated from the output three-phase electricity.
3.Wide input voltage range design, suitable for various low voltage environments. Output overvoltage, overload, over temperature, short circuit protection and other protection functions.
4.The power supply also has the function of filtering the mains interference. It is a stable voltage stabilizing power supply with stable performance, providing a safe and stable power supply environment for back-end equipment.

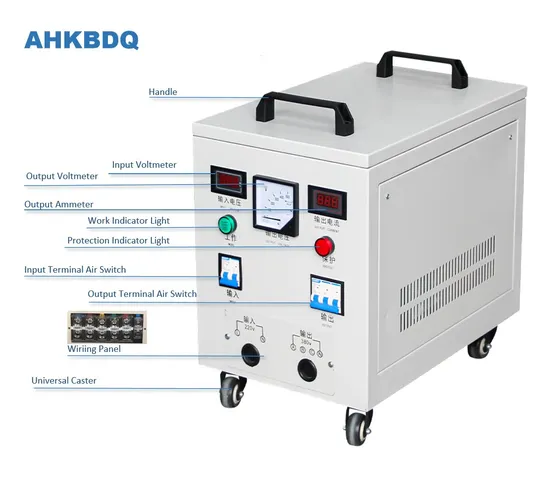

Detailed Photos Product Parameters

Model	AHK
Brand	AHKBDQ
Type	IGBT Model
Phase	Single/Two Phase to Three Phase
Input Voltage	Single/Two Phase 220V or Customized
Output Voltage	Three phase 380V or Customized
Output Waveform	Pure Sine Wave
Certification	ISO/CE
Cooling Mode	AN/AF
Outgoing Row	Terminal Block
Customized Services	LOGO

Application ScenariosApplication Scenarios
Industrial equipment: Many industrial equipment and machinery require three-phase power to operate properly. For example, three-phase motors and some large industrial equipment rely on three-phase power sources to achieve higher efficiency and smoother operation.
Commercial premises: Some commercial facilities, such as large-scale kitchen equipment, air conditioning systems, and HVAC equipment, may also require three-phase power.
Motor drive: In situations where high-power motors need to be driven, such as water pumps, compressors, and fans, three-phase power supply is essential. The conversion of single-phase electricity to three-phase electricity can provide necessary power for these devices.
Residential renovation: Some residential users may wish to introduce three-phase power during renovation to meet new electrical needs or improve electricity efficiency.
Advantages of outputting sine waves:
1) Reduce harmonic distortion,
2) Improve equipment efficiency
3) Reduce electromagnetic interference
4) Ensure proper operation of equipmentCompany Profile
