1. Precision 7 Axis Dual Spindles CNC Turning Center Lathe

Product Description

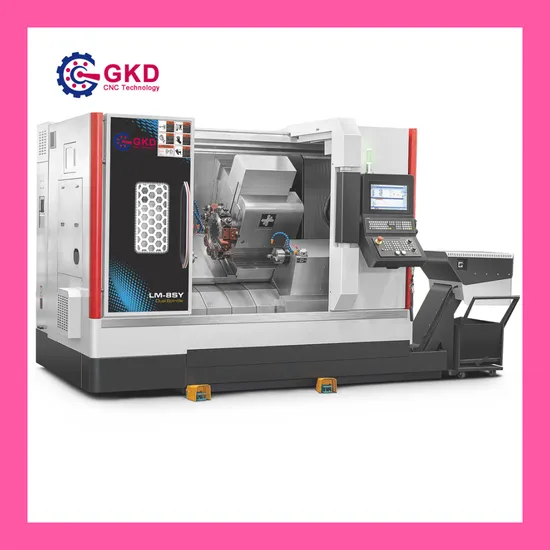

High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center
CNC turning lathes, such as the High Precision Double Dual Spindles Slant Bed CNC Lathe CNC Turning Center from Anhui Mingju Intelligent Equipment Co., Ltd., have revolutionized the manufacturing industry. These lathes provide precision and efficiency in the production process, capable of performing operations like drilling, tapping, turning, and boring. They are widely used in industries such as automotive, aerospace, medical, and electronics to produce complex and high-precision components.
Explore the components of this CNC turning lathe, its working principle, and its applications to see how it can enhance your manufacturing processes.
Product Parameters

Model	LM-6SY
Double spindle/single power turret
Number of axis	7 Axis(X+Z+Z1+C1+C2+Y+TD)
Max turning diameter on the bed	Ф600mm
Max processing length	500mm
Max processing diameter	Ф500mm
Main spindle nose	A2-5
Main spindle hole	Ф56mm
Bar hole diameter	Ф46mm
Main spindle speed	0-6000rpm
Main spindle Chuck size	6"(Hydraulic chuck)
Sub-spindle nose	A2-4
Sub-spindle hole	Ф46mm
Bar hole diameter	Ф36mm
Sub-spindle speed	0-6000rpm
Sub-spindle chuck size	5"(Hydraulic chuck)
Main Spindle power	7.5KW
Sub-spindle power	5.5KW
X1 axis power	3.1KW
Y1 axis power	3.1KW
Z1/Z2 axis power	3.1KW
TD axis power	3.1KW
Hydraulic pump motor power	3.1KW
Cooling pump motor power	1.5KW
Tool turret position	12pcs
Turret model	BMT55
Outer diameter shank	25mm
Inside diameter shank	Ф32mm
Living tools milling speed	0-4000rpm
X1/Y1/Z1/Z2 axis rapid speed	25m/min
X1 axis travel	600mm
Y1 axis travel	140mm(±70mm)
Z1/Z2 axis travel	500mm
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
X/Y/Z/Z1 axis repeatability position accuracy	0.002mm
X/Y/Z/Z1 axis position accuracy	0.003mm
Oil tank capacity	72L
Cooling tank capacity	180L
Machine weight	5480KG
Machine size	3800*2300*2300mm
Controller	Simens 828D

Company Profile
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
For years, Anhui Mingju has been dedicated to providing top-quality CNC machining centers to customers worldwide. Our products include vertical machining centers, high-speed gantry machining centers, horizontal machining centers, CNC lathes, and more, catering to various industries like aerospace, automotive, and engineering machinery.
With 5 production bases across China and a strategic European headquarters in Italy, Anhui Mingju offers a complete range of high-end CNC machine tools. We prioritize high-speed, high-precision, and high-efficiency intelligent equipment to meet our customers' needs effectively.
Count on Anhui Mingju for superior products, comprehensive solutions, and exceptional after-sales service. Join our global network of satisfied customers and experience the excellence of our CNC metal cutting machine tools.
Choose Anhui Mingju for quality, innovation, and reliability in CNC machining. Contact us today for all your machining needs!
Our Advantages
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Discover our top-notch CNC machines with professional service and Italy and Taiwanese technical expertise. Benefit from our superior manufacturing ability, various payment terms, high-quality materials, competitive prices, and small order options. Experience quick responses, safe transport, and OEM designs tailored to all customers' needs.
Certifications
Packaging & Shipping
After Sales Service
Product Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Product Warranty and Support Information:
1) Our products come with a 12-month quality warranty starting from the arrival date at the destination port. We offer free fittings during the warranty period, excluding physical damage. Customers are responsible for returning damaged fittings at their own cost before receiving replacement parts. After the warranty period, repair or replacement costs will be incurred by the customer.
2) To provide efficient support, we offer online assistance via email, MSN/Skype, camera, video, telephone, and fax for any installation, operation, adjustment, or maintenance issues.
3) In cases where online support is insufficient, we offer Door to Door service. Customers requiring on-site assistance from our engineers must arrange visa formalities, prepay travel expenses, provide accommodation, and arrange for a translator during the service period. Alternatively, customers can send their engineers for free technical training at our factory.
FAQ
Product Description
Welcome to Anhui Mingju Intelligent Equipment Co., Ltd.
Our company offers high-quality machinery with the following specifications:
Minimum Order Quantity: 1 set
Warranty: 1 year
Bearing Brand: NSK from Japan
Delivery Time: 15-30 days after payment
During the warranty period, we provide free maintenance for product quality issues. Parts replacement is also free. If the problem is not related to our machine quality, we offer repair services at a reasonable cost.
Our company can send technical personnel to your location for installation. The buyer covers accommodation and daily expenses, and we assist with visa arrangements and installation preparations.
Contact us today for reliable and efficient machinery solutions!
