Biomass Sawdust Rice Husk Straw Cheap Factory Fuel Burning Sawdust Pellet Machine Wood Pellet Mill

Product Description

Product Description

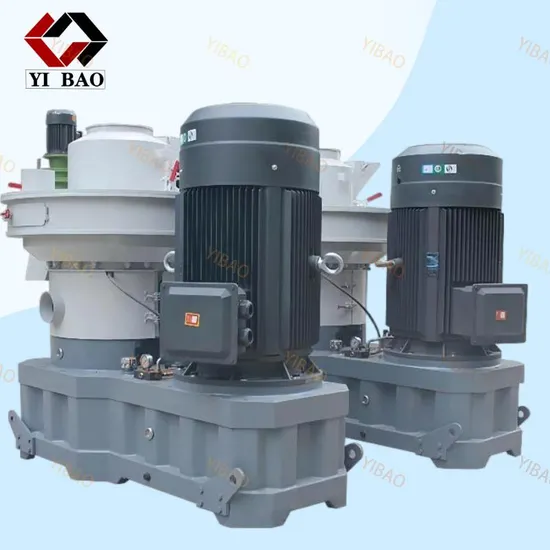

Pellet Mill is a kind of biomass energy pretreatment equipment. It mainly uses agricultural and forestry processing
waste such as wood chips, straw, rice husk, bark and other biomass as raw materials, and solidifies it into high-density
pellet fuel through pretreatment and processing.
Production Line
Wood chipper:Process logs into small chips within 20mm
Hammer mill:Processing of wood chips into sawdust less than 5 mm in size
Rotary dryer:Sawdust with a moisture content of no more than 18%
Wood pellet machine:Make dry sawdust into pellets
Cooler:Cools the pellets from70-90 ºC to room temperature
Packing machine:Pack the pellets into a plastic bag
Product Parameters

Model	YB-450	YB-550	YB-750	YB-900
Power(KW)	45	55	75	90
Spindle Speed(r/min)	1450	1450	1450	1450
Die diameter(MM)	400	450	500	550
Output Size(MM)	4-12	4-12	4-12	4-12
Granulation Temperature(ºC)	80-100	80-100	80-100	80-100
Raw material moisture(%)	15-25%	15-25%	15-25%	15-25%
Voltage(V)	380	380	380	380
Capacity(t/h)	0.6	0.8	1-1.2	1.2-1.5
Size(mm)	1400*750*1550	2600*1300*2300	3500*1600*3200	4600*2300*3800
Weight(T)	2.9	3.6	5.6	6.8

Finished Product
Factory Tour



Our Team
Customer Feedback
Certifications
Henan YiBao Machinery was founded in 2018,located in Zhengzhou, Henan Province, with convenient transportation, such as free ways,high-speed railways, airports, etc.
We mainly produce Wood Pellet Mill machine, biomass granulator, sawdust pellet machine, Feed Pellet processing Machine, wood crusher, wood chipper, dryer and other related supporting equipment. We have introduced advanced German production technology and cooperated with many domestic universities in research and development.
Now we have a research and development team of more than 20 persons to provide customers with customized various scale production lines. We have a professional sales team(35 persons). They can design and provide suitable equipment or production lines to meet the customers' actual needs. We also have young salesmen with fluent oral English to serve customers by online videos . In addition, we also have a dedicated after-sales service team(10 persons) to provide technical supports and guidance in 24 hours .
Our products have been approved CE,SGS,ISO9000 etc.And they have been currently exported to Europe and North America ,Southeast Asia, Africa and other regions and countries. The quality and after-sales service makes us a good reputation in the machinery industry.
We had,have,and will have been committed to protecting the environment and improving the ecosystem as our purpose and principle.!!!

FAQ
1.Are you a factory or a trading company?
We have our own factory. we have over 15 years of experience in the pellet line manufacturing. "Market our own products" reduces the cost of intermediate links. OEM available according to your raw materials and output.
2.Which raw materials can be made into biomass pellets? If any requirements?
Raw material ca be wood waste, logs, tree branch , straw, stalk, bamboo, etc including fiber.
But the material for directly making wood pellets is sawdust with a diameter of no more than 8mm and moisture content of 12%-20%.so if your material is not Sawdust and moisture is more than 20%, you need other machines, such as wood crusher,wood hammer mill and dryer etc
3.I know very little about charcoal making machine production line, how to choose the most suitable machine?
Do not worry. We have helped a lot of beginners. Just tell us your raw material, your capacity (t/h) and the size of the final
pellet product, we will choose the machine for you according to your specific situation.
4.Our workers don't know how to operate the sawdust briquette making machine, what should I do?
Our engineers will guide the field workers how to install the machine and arrange the workshop layout. Our engineers will then test run the live production line and train your workers how to operate it.
5. What payment term do you accept?
We support various payment methods, we can accept 20%-30% as a deposit. Customer pay the balance after the end of production and inspection. We have more than 1000 square meters of spot stock workshop. It takes 5-10 days for ready-made equipment to be shipped, and 20-30 days for customized equipment. We will do our best to deliver as soon as possible.
6.Where is the market for the product and where is the market advantage?
Our market covers the entire Middle East and European and American countries, and exports to more than 34 countries. In 2019, domestic sales exceeded RMB 23 million. The export value reached 12 million U.S. dollars. And the perfect CE certificate and reliable pre-sales and after-sales service are what we have been working hard to do.
