QB/T 2601.6.5.1 Office Chair Backrest Durability Test Machine

Product Description

Product Description

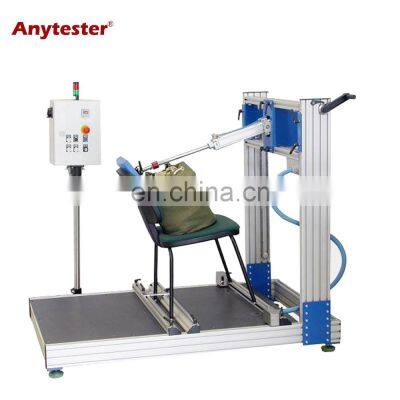

IntroductionHY5032 Office Chair Backrest Durability Test Machine is used to evaluate the quality through fixing the caster, pressing the seat and crash the back with given strength, direction, speed and times repeatedly.Standard QB/T 2601.6.5.1ANSI / BIFMA X5.1 Note: this Office Chair Backrest Durability Test Machine can conform to but not limit to all the standards above, for more standards conformance, please contact us. Features1. Adopts the aluminum frame.2. It is widely used in factory used in family, hotel, restaurantSpecification ModelHY5032Office Chair Backrest Durability Test MachineSeat surface load102 kg (225 lb.)Back of a chair loading force value334 n (75 lb.)/n (100 lb.) of 445Backrest height is greater than 452 mm406 mmBackrest height less than 452 mmload the top back of a chairBackrest loading force directionoutput direction and on the back Angle 90 plus or minus 10 °Test speed10 ~ 30 times/minTest times80000/120000 timeCounter0 ~ 999 999 times can be setForce value adjustment methodadjustment pressure size + power sensorMotor controlPLC control, text displayCylindercylinder diameter of 50 mm and 300 mmSupportindustrial high-strength aluminum, 80 mmx40mmPressure regulating valveSMCVolume (D * W * H) 120 * 100 * 130 cmSource6 KGF/cm ^ 2 or more stable air supplyPower supply1 Φ, AC220V, 3A.
