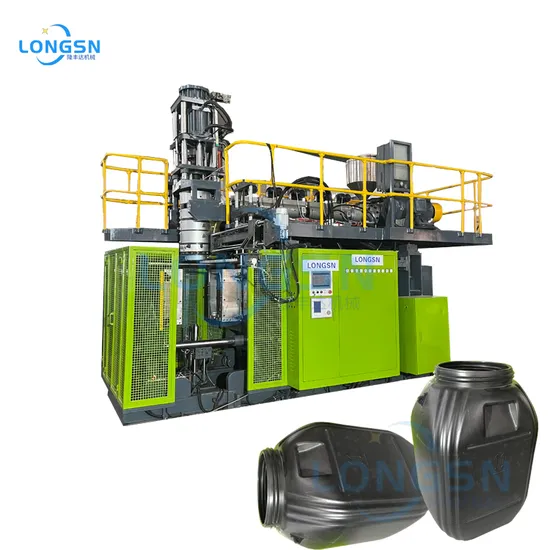

Factory Price High Quality Automatic Fast Plastic PP HDPE Bottle Blowiing Jerrycan Extrusion Blow Molding Machine

Product Description

Product Description
Fully Automatic 20L plastic Bottle Jerrycan Extrusion Blowing Moulding machinery 5 gallon water pc bottle Blow Molding MachineThe LSN series extrusion blow molding machine is used to produce all kinds of the hollow plastic containers for foods, toys, beverages, medicines, chemical products, pesticides, detergents etc with material of PE,PP,PVC from 5ml to 20L,such as water bottles,milk bottles,medical bottles,oil bottles,plastic balls,cosmetic bottles,lubricant bottles,plastic containers. The machines are low investment, high efficiency, quick and safe operation, easy for trouble shooting, maintenance and other benefit.
Detailed Photos
Product Parameters

Parameters	Units	LSN90S	LSN100D
Material		PE,PP,PV,PVC,PA	PE,PP,PV,PVC,PA
Number of die head	set	1,2,3,4	1,2,3,4
Max Container capacity		30L	30L
Screw diameter	mm	90	100
Screw L/D ratio	-	28	28
(50HZ)Screw rpm(50hz)	r/min	10-70	10-60
(PE)Extrusion capacity per hour	kg/h	160	200
Number of heaters	-	4	5
Opening stoke	mm	900	900
Platen size	mm	500*540	500*540
Clamping stoke	mm	450-950	450-950
Clamping force	KN	170	170
Dry cycle time	s	6	9
Cooling water pressure	Mpa	0.2-0.3	0.2-0.3
Cooling water consumption	L/min	40	60
Air pressure	Mpa	0.8	0.8
Compressed air comsumption	m3/min	4	6
Machine dimension(L*W*H)	mm	5000*2900*3950	5200*4700*4000
Machine net weight	T	9.5	16
Extruder heating power	kw	22	27
Power of die heating zone	kw	16	16
Hydraulic motor	kw	18.5	18.5
Total power	kw	106	121

Certifications
Company Profile
FAQ
Q1:Are you a trading company or a manufacturer ?
A1:We are the manufacturer ,we produce machines ourselves,we can assure the quality.Q2:What is your advantage?A2:Competitive price , Excellent technical support ,24h online serviceQ3:When can I get my machines after I paid?A3:We will arrange delivery on time,act according to the contract.Q4:What's your guarantee or the warranty of the quality if we buy your machines?A4:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 yearsQ5:How can I install my machine when it arrives?A5:We will provide 24 hours online service,if needed we will send our engineer to your side as soon as you get all your machines ready,for testing and teaching your technicians how to run the machines.
