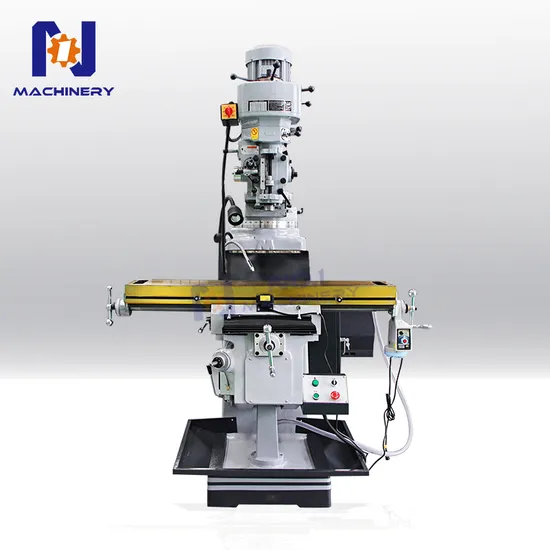

5h High Quality Taiwan Turret Milling Machine Universal Vertical and Horizontal Milling Machine

Product Description

Specification

item	value
Table Travel (X) (mm)	850
Number of Axes	3
Machining Capacity	Medium Duty
Table Travel (Y) (mm)	405
Table Travel (Z) (mm)	505
Spindle Taper	NT40
Range of Spindle Speed(r.p.m)	66r.p.m - 4540r.p.m
Condition	New
Place of Origin	China
	Shandong
Brand Name	NO.1 MACHINERY
Model Number	5H
Table Travel (mm)	850*405*505
Year	2024
Type	VERTICAL
Spindle Motor Power(kW)	3.75KW
Voltage	380V/50HZ/3-PHASE
Dimension(L*W*H)	1780*1650*2080mm
Weight (KG)	1850
Warranty	2 years
Key Selling Points	Competitive Price
Applicable Industries	Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location	Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Marketing Type	Ordinary Product
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	2 years
Core Components	Bearing, Motor, Gear
Product name	5H taiwan Turret Milling machine
Table size	1370x305mm
CNC or Not	Optional GANT
Spindle hole taper	NT40 or R8 or ISO40
Milling head left and right	90°
Milling head back and forth	45°
Standard configuration	X auto feeding
Optional	DRO/ Y axis Auto feeding
Drive type	Belt drive
Drive type sptional	Segmentless milling head

Product Description
Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile



Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.
