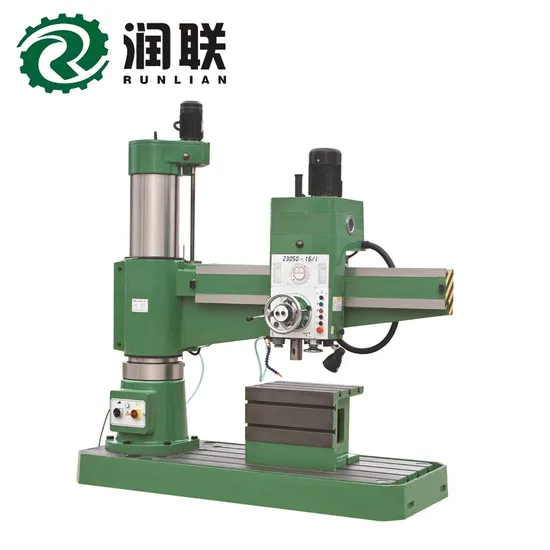

Radial Drilling Machine Large Hydraulic Rocker Drill Z3050X16/1

Radial Drilling Machine Large Hydraulic Rocker Drill Z3050X16/1

US$3,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
Z3050X16/1
Structure
Radial Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
5
Hole Diameter
>200mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Drilling Dia
+/-180degrees Max. Drilling
Machine Type
Manual for Radial Drilling Machine
Power (Kw)
7.5
Drilling Speed
0.04-3.2 mm/R
Voltage
380V/50Hz
Transport Package
Wooden Box
Specification
2500x1070x2840
Trademark
RL
Origin
China
HS Code
8207501000
Production Capacity
100 Units/Year

Packaging & Delivery

Package Size
2690.00cm * 1190.00cm * 2570.00cm
Package Gross Weight
3500.000kg

Product Description


Product Description
The main function (1) The radial arm drill is suitable for drilling, reaming, reaming, countersinking, and tapping on medium and large metal parts. The main functions of the hydraulic radial arm drill are the handles, buttons and other operating components that are concentrated in the headstock. superior. (2) The outer column drives the rocker arm to rotate around the inner column ±180º; (3) The rocker arm rises and falls along the outer column
Product Parameters
Project Unit Z3080X25 Z3050X16/1 Z3040X13/2 Z3032X10/1
Maximum drilling diameter mm 80 50 40 32
Distance from spindle centerline to column generatrix Maximum (mm) 2500 1600 1300 1000
Minimum (mm) 500 350 300 300
Distance from spindle end to base working surface Maximum (mm) 2000 1220 1120 1000
Minimum (mm) 550 320 300 220
Spindle travel mm 450 315 280 280
Spindle taper hole (Morse) No. 6# 5# 4# 4#
Spindle speed range r/min 16-1250 25-2000 32-2500 32-2500
Spindle speed level level 16 16 16 16
Spindle feed range mm 0.04-3.2 0.04-3.2 0.10-1.25 0.10-1.25
Spindle feed level level 16 16 8 8
Workbench size mm 1000x800x560 500x500x630 550x450x450 550x450x450
Horizontal moving distance of the spindle box (cross arm) mm 2000 1250 1000 700
Maximum allowable torque of the spindle Nm 35000 500 250 200
Spindle motor power kW 7.5 4 3 2.2
Rocker arm lifting distance mm 1000 580 540 500
Machine weight kg 11000 3500 2500 1600
Machine tool dimensions (length × width × height) mm 3730x1400x3790 2500x1070x2840 2100x900x2310 1760x800x2050
Machine tool packaging dimensions (length × width × height) mm 3820x1630x1700 2690x1190x2570 2320x1050x2550 1970x950x2280

Product Features
Radial drilling machine is a kind of general-purpose drilling equipment, which has the characteristics of wide range of use, flexible and convenient operation, etc. How does the radial drilling machine drill holes on general workpieces?1. Draw a line on the workpiece according to the requirements of the drawing, and punch the hole after inspection. The sample punching hole should be made larger so that the drill bit is not easy to deviate from the center.2. Adjust the required speed and feed rate, and prepare the required cutting fluid.3. According to the material characteristics and process requirements, sharpen the cutting angle of the drill bit.4. Align the drill tip with the center of the drill hole. When setting the knife, observe from two vertical directions.5. If the drilling is deviated, it must be corrected in time. The method of correction is: use oil groove chisel to chisel several grooves on the opposite side of the hole deviation for larger holes, and use sample punching for smaller holes. Drilling small holes can also be raised with horns in the direction of deflection. Then try drilling until the round dimple is corrected, remove the pad iron, and continue drilling.6. When drilling through holes, it is best to switch to manual feeding when drilling through quickly.7. If the hole cannot be drilled, the automatic feed stopper can be adjusted according to the hole depth before drilling.8. When drilling deep holes, when the hole depth reaches more than 3 times the diameter, the drill bit must be withdrawn several times to remove chips.9. When the drilling diameter is less than 35mm, it can be drilled at one time, and when it is larger than 35mm, it can be drilled twice. At this time, the diameter of the pre-drilled hole is 0.7 times the machining diameter.

Packaging & Shipping
After Sales Service
Certifications
Company Profile
Weifang Runlian Economic and Trade Co., Ltd. was established in 2011, Is a professional domestic high-end machine tool equipment And accessories import and export enterprise, metal cutting machine tools, metal cutting tools, Grinder abrasives, measuring tools, machine tool functional parts, numerical control devices, metal forming machine tools, lubricate grease and oil Machine function parts, numerical control devices (CNC), Metal forming machine, mechanical processing technology consulting business, adhering to the core value of "customer satisfaction is our purpose", With the core cultural concept of "team, responsibility, communication, tolerance", Take advantage of nearly 20 years of industry experience to provide global customers with the most suitable industry products to create the greatest value, to become a world-class industrial service provider.

FAQ
1:How can I choose the most suitable machines?
Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What are the main products of your company?
We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Sharper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client's specifications requirements,it would be a little longer.
4.Where is our factory located? How can I visit there?
Our factory is located in Weifang City, Shandong Province, 261071 China. You are warmly welcomed to visit us.
5. What are your trade terms?
FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
7: What's the MOQ?
1 set .(Only some low cost machines will be more than 1 set ).
