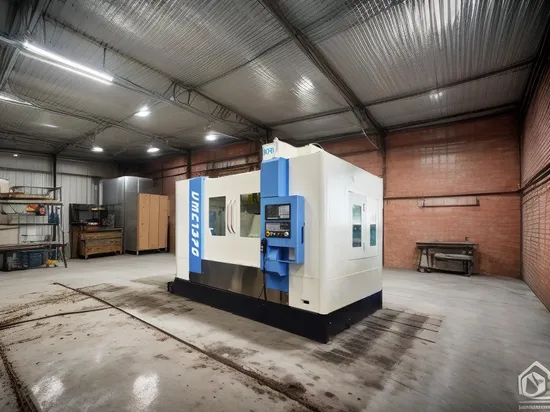

High-Speed Vmc1370 CNC Vertical Milling Machine for Precision Machining
| US$46,715.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
Vmc1370
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Product Name
Vertical Machining Center
Color
Welcome Customized
Table Size
1300*700
Spindle Speed
8000 Rpm
Spindle Taper
Bt50
Three Axis Travel
1300/700/650mm
Product Type
CNC 3 Axis Machine
Machine Type
Vmc1370
Control System
Siemens GSK Fanuc (Optional)
Transport Package
Free Fumigation Plywood Packaging Steel Base
Specification
3800*3000*2650mm
Trademark
BORUI
Origin
Shan Dong
HS Code
8457101000
Production Capacity
500
Product Description
Vmc1370 cnc vertical vmc milling machine 5 axis 4 axis 3 axis for high speed machiningProduct Description
Product main technical parameters:
| Processing | ||
| X axis travel | mm | 1300 |
| Y axis travel | mm | 700 |
| Z axis travel | mm | 700 |
| Spindle nose to table surface | mm | BT40- ∮ 150:100-800;BT50- ∮ 155:70-770 BT50- ∮ 190:120-820 |
| Spindle center to Column surface | mm | 773 |
| Worktable Size | ||
| Worktable Size(X-axis direction) | mm | 1400 |
| Worktable Size(Y-axis direction) | mm | 700 |
| T slot qty-width*distance | mm | 18x5x110 |
| Spindle specification | ||
| Spindle speed(Belt type) | rpm | 8000 |
| Main motor power | kW | 11/15 |
| Spindle taper | | BT40(BT50) |
| Feeding system | ||
| X/Y/Z axis rapid feed | m/min | 24/24/24 |
| Cutting rapid feed | mm/min | 1-10000 |
| Three-axis servo motor power | kW | 3 X 3 X 3.5 |
| Tool library system(OPT) | ||
| Tools capacity | pcs | Disc Type 24 |
| Machine size | ||
| Machine length | mm | 3200 |
| Machine width | mm | 2540 |
| Machine high | mm | 2600 |
| Machine weigth | kg | 8800 |
Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .2: What's your main products of your company?A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .3: Where is our factory located? How can I visit there?A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.4. What is your trade terms?A : FOB, CFR and CIF all acceptable.5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .6: What's the MOQ?A: 1 set .(Only some low cost machines will be more than 1 set )
