Fully Automatic Manufacturing Toilet Paper Tissue Production Machine for Sale Kitchen Towel Making Machinery Price

Fully Automatic Manufacturing Toilet Paper Tissue Production Machine for Sale Kitchen Towel Making Machinery Price

US$25,000.00-58,000.00 1 sets (MOQ)

Basic Info.

Model NO.
FJ-CD
Certification
CE
Condition
New
Control
Automatic
Embossing Type
Full-Embossing
Embossing Roller
Steel Roller
Toilet Paper Type
With Core
Function
Multi-Function
After-Sales Service Provided
Two Years
Dimension(L*W*H)
Depends on Model and Configuration
Warranty of Core Components
2 Years
Name
Hemp Toilet Paper Making Machine
Voltage
380V 50Hz
Machinery Test Report
Provided
Speed
200-240m/Min
Processing Type
Paper Embossing Machine
Motor
Three Phase Motor
Automatic Function
Embossing--Perforating--Tail Gluing--Edge Trimming
Showroom Location
None
Raw Material
Parent Roll/Virgin Pulp, 13-15.5GSM
Weight
2000 Kg
Video Outgoing-Inspection
Provided
Applicable Industries
Manufacturing Plant
Transport Package
Lifelong Service Paper Roll Rewinding Embossing Ma
Trademark
Meijing
Origin
Guangdong, China
Production Capacity
50 Set/Sets Per Year, 200-240PCS/Min

Packaging & Delivery

Package Size
120.00cm * 150.00cm * 230.00cm
Package Gross Weight
2680.000kg

Product Description

Foshan Manufacturer Rewinder Toilet Roll Manufacturing Machinery Embossing Paper Tissue Making Machine Product Description
How to produce paper tissue products? Toilet paper, kitchen towel, industrial roll ,cotton soft roll, which machines shall be need and related material?
To produce toilet paper rolls, there are different production solution like following ~
1. Full AutoToilet Paper/Kitchen Towel Rewinder 2. Auto Accumlator (optional machine)
3. Toilet Paper cutting machine
4. Toilet Paper Packing Machine


Machine Name Full Auto Toilet Paper Making Machine
Machine Model 1760 2200 2600 2800
Parent Paper Width 2000mm 2200mm 2600mm 2800mm
Parent Paper Dia 1500mm
Finished Products Dia 90-300mm
Finished paper core Dia 30-55mm
Back Stand 1-4 ply
Machine Speed 220-250m/min
Parameter Setting Siemens Brand PLC computer operating system
Perforation Distance 90-200mm (4 knife)160-300mm ( 2 knife)
Driving system Each station driving by individual motor and individual frequency converters
Machine Structure Wallboard type
Pneumatic System 3 horse air compressor,a minimum pressure of 5kg/cm2Pa
Machine Weight 6-12 tons
Certificates CE, ISO9001:2008, SGS
Equipped Device:
Embossing Unit steel to rubber, individual control and driving
Glue Lamination system dot by dot lamination, Deco embossing Lamination,

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1. The Full Automatic Toilet Paper Machines production chart:
Unwinding - Embossing -Glue Lamination-Perforating-Rewinding-Automatic core loading - Tail-gluing - Edge trimming.
2. Automatically change the paper core, also can produce toilet paper roll without roll core.
3. Automatic Tail-trimming, gluing, gluing at the same time
4.This is a great machine to make customized to produce industrial roll, kitchen towel, maxi roll and cotton soft towel on one machine.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

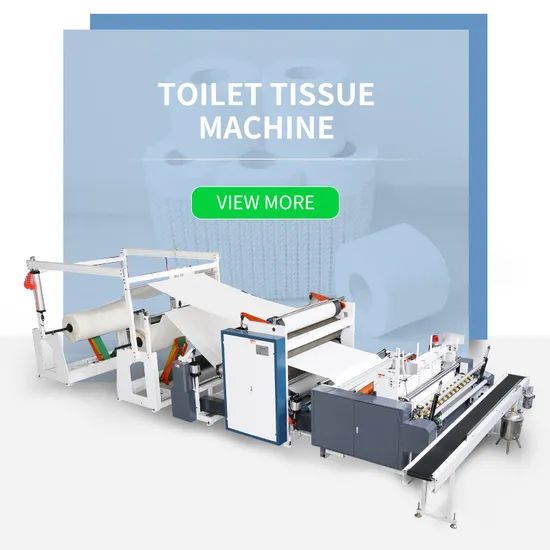

1. Full Auto Toilet Paper Making Machine

Machine Name Full Auto Toilet Paper Making Machine
Machine Model 1760 2200 2600 2800
Parent Paper Width 2000mm 2200mm 2600mm 2800mm
Parent Paper Dia 1500mm
Finished Products Dia 90-300mm
Finished paper core Dia 30-55mm
Back Stand 1-4 ply
Machine Speed 220-250m/min
Parameter Setting Siemens Brand PLC computer operating system
Perforation Distance 90-200mm (4 knife)160-300mm ( 2 knife)
Driving system Each station driving by individual motor and individual frequency converters
Machine Structure Wallboard type
Pneumatic System 3 horse air compressor,a minimum pressure of 5kg/cm2Pa
Machine Weight 6-12 tons
Certificates CE, ISO9001:2008, SGS
Equipped Device:
Embossing Unit steel to rubber, individual control and driving
Glue Lamination system dot by dot lamination, Deco embossing Lamination,

2. Full Auto Log Saw Machine
1. Full servo motor driven rotary knife to cut,reduce the deviation of materials;
2. The cutting surface is nice and neat;
3. 610mm cutting blade;
4.Mitsubishi PLC program controller;
6. Auto grinding knife cutting high precision, safe and reliable;
7. Equipped with pneumatic brake function, can prolong the service life of motor and make braking perfect;
8.Suction Device can absorb the waste produced by sharpening and discharge it out of the machine;
9.Equipped with photoelectric checking system and large diameter of spiral cutter, it can auto set the length and cut precisely;

Machine Name Full Auto Log Saw Machine
Feeding length 2850mm
Max. Roll cutting size 100-145mm; (other sizes can be ordered), one cutting mould for ± 5mm
Horizontal cutting length adjustable, Servo control.
Out put line 2 lines
Machine Speed 120 cuts/min * 2 rolls/cut
Function model Spiral rotating the round blade & Continued Paper Roll Marching
Driving system Servo motor driving
Knife grinding Pneumatic grinding wheel, time can be controlled on panel.
Round blade outer dia Φ610mm slitting blade (Germany brand)
Grinding wheel Carborundum grinding wheel
Clamping tool TWO sets of clamping tools
Frequency converter Mitsubishi Frequency converter
PLC Mitsubishi PLC
Motors Servo motor
Install Power 10kw, 380V 50HZ
Certificates CE, ISO9001:2008, SGS

3. Full Automatic Toilet Paper Bundling Packing Machine
1.This machine will used to pack toilet paper or kitchen towel into plastic bag;
2. The machine can be connected with automatic paper cutting machine to realize the automatic process of product counting, bag taking, bag filling, bag sealing and cutting;
3.The machine adopt 9 servo control, servo material sorting, servo push arm, servo pulling, servo forward, servo double lift, servo bag opening, servo sealing, servo belt, servo bag taking;
4.Adopt high-end sensor, photoelectric switch detection, fault automatic display, easy to track and maintain;
5.The machine has servo control system can go to the origin point automatically (slowly back to the origin point).
Machine Name Full Automatic Toilet Paper Packing Machine
Capacity 12-20bag/min
Single roll size 3 column : 90-140mm; 4 column : Ø 90-120mm
Bag size/Rolls per bag L300*W(180-480)*H(90-280) mm
Bundling bag mode pre-made bag with air-bleed hole Max bag length: 850mm
Bundling bag material PE, thickness::≥0.05mm
Bundling bag store 40mm, Two bag storage
Bundling bag storing quantity ≤300 pcs
Feeding mode Full automatic feeding system
Suitable for packing Horizontal paper tissue roll
Heating Power 1.4KW
Inlet pipe diameter 10-12mm
Air supply 0.6MPA(Supplied by user)
PLC Mitsubishi PLC
Power supply 380V 50HZ
Machine size L7500*W1850*H2200 mm
Certificates CE, ISO9001:2008, SGS

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
The Optional Device
Full Embossing Unit

1.The whole wallboard Structure: 50 mm steel plate;
2.Steel roll to steel roll or steel roll to rubber roll;
3.Independent motor driving, frequency converter control;
4.Embossing roll dia: 320 mm depends on machine width;
5.We will provide embossing pattern for free or design.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
High Level Glue Lamination System
1. Two plies of paper web, each one goes to embossing first (steel roller to rubber roller);
2.The glue will be caught on the bulge of embossing face, goes to the middle of two steel rollers ( there point point combined two plies into one, or nested combined two plies into one);
3. Make the paper web more absorbency and strong;
4.Lamination unit with glue capacity adjusting control, to control the glue capacity from the glue tank to the paper surface;
5. It adopts scraping glue system, also can adopt rolling glue, the cost is different, scraping glue on the glue is much more stable than rolling glue on the glue, and the glue speed is more faster, and the probability of sticking paper is much lower;
6.Independent motor control glue: when stop machines, this motor automatically stir glue to avoid glue dry hard to clean;

7.When paper broken, machine will stop automatically.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Finished Product


Why Choose Us
Foshan Meijing Machinery Manufacture Co., Ltd. established in 2005.We are well-known manufacture more 18 years experience, specializes in machinery for paper tissue in China, a professional manufacturer and specialized in household paper tissue converting machines and ancillary machinery
We are dedicated to the creation of high-quality and advantage design machines that remain to meet different market products demands. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.If you are interested in any of our products or would like to discuss a customized order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
Debugging equipment and technical personnel in the company under the guidance of theory and practice of the user's technical training.
Packaging & Shipping
Certifications
FAQ
Q1: What is the Warranty for the machine?
we have 2 years warranty.If any quality problems occurred under normal condition in this period ,we will take on the cost of maintenance and replacement and other related cost, After Warranty, it is our duty to keep after service and support your production at any time. Q2: How to operate and maintain the machine? First, we will provide a professional and detailed USER GUIDE to you with the machine; Second, we will debug the machine in the best status for you; At last, we also provide abroad technical training service Q3: What is the price of production line? 1. Please tell me what's the width of jumbo roll(raw paper) will you process? 2. Do you need embossing unit or lamination unit? 3. What's the daily capacity of machine do you need? We need to know the details of the machine ,then can give you the best price. Q4: Can i get the paper roll sample from you? We are very glad to send different paper products samples, to help you understand and find more better products position in your local market.
