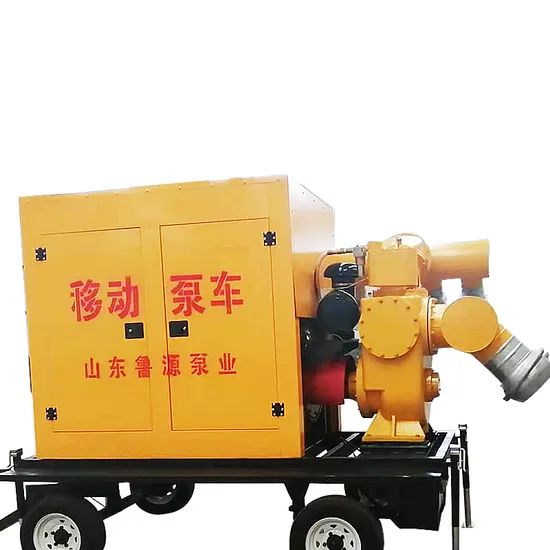

China Supplier Factory Price New Original Centrifugal Diesel 7.5HP Single/Double Suction Self Priming Water Pump for Agricultural Farmland Irrigation

Product Description

Product Description
Product Introduction

Basic Specification
Model	MCIS125-80-250A
Brand	Match Power
Lift	70 m
Capacity	150 m³/h ; 41.6 L/s
Power	45 kw
Power	Diesel
Pressure	High Pressure
Application	Cryogenic, Fire, Maritime, Metering, Sewage, Submersible
Structure	Single-stage Single-suction Centrifugal Pump
Color	As your request
Function	Axial Flow Pump, Centrifugal Pump, Chemical Pump, Electric Pump, Electromagnetic Pump, Gear Pump, Jet Pump, L Pump, Mixed-flow Pump, Oil Pump, Others, Pump, Roots Pump, Screw Pump, Sewage Pump, Slurry Pump, Steam Pump, Submersible Pump, Vane Pump, Vortex Pump

Main Features 1) Running smoothly: The absolute concentricity of the pump shaft, excellent dynamic and stastic balance of the impeller, ensure smooth operation, no vibration.
2) Leakproof: Hard alloy seall with different material to ensure the transportation of different media without leakage.
3) Low noise: Two low noise bearings under the pump, running smoothly, in addition to the motor weak sound, basically no noise.
4) Low failure rate: The structure is simple and seasonable, the key part of the use of word-class quality matching, the whole machine free time to work greatly improved.
5) Easy maintenance: Replacement of seals, bearings, simple and convenient.
6) Save space: The exit can be left, right, upward three directions, easy for pipe layout and installation, save space.
Product Parameters
Diesel Engine
Our diesel engines independently developed by itself as the power source. They are manufactured and tested according to ISO 8528 and GB/T2820 standarts, with a power range of 10-4300kw. Strictly in compliance with ISO9001 Quality Control System and European CE Safety Certification Standard.
The engines have advantages of impact structure, good appearance, big power, low fuel consumption, high cost performance, and reliable quality.

Specification of Diesel Engine
brand	Weichai	model number	TD226B-3D
rated power	45 kw	standby power	50 kw
rated speed	1500 rpm	governor	mechanical governor
cooling method	water cooling	start method	electric start
cylinders and cycles	3 cylinders, 4 stroke	bore x stroke	105x120mm
engine oil capacity	7.25 L	cooltant capacity	11 L

Water Pump The single stage centrifugal pump series is applicable to water supply and drainage for industry and city pressure increasing water supply for high building ,garden irrigation, pressure increasing for fire fighting, long distance transportation, heating and cooling circulation, cold and warm water circulation pressure increasing and matching equipment.

Specification of Pump
Head	76.1 m	material of case	cast iron
Flow	180 m³/h ; 49.9 L/s	material of axle	cast steel
inlet size	125 mm	material of blade	cast steel
outlet size	80 mm	sealing method	packing seal
speed	2900 rpm	suction	5.5 m

optional accessories 1.vaviable head
2.quick connector
3.suction pipe
4.hose
5.auto water suction device
6.batteryfly valve
7.foot valve
8.clutch Company Profile
About Us
Located in Weifang City, Shandong Province, Weifang Haichuan Power Co., Ltd. is a professional manufacturer and sales company of diesel engines, generator sets, diesel pumps and relevant parts .
The Company has established business relationship with thousands of customers, and with high quality and perfect after-sales services, its products have been well received by all customers from Russia, Saudi Arabia, India, Sri Lanka, Philippines, Bangladesh, Singapore, Indonesia, Malaysia, Angola, Nigeria, etc.
On the principles of "quality first, reputation first" , Haichuan Power looks forward to creating a better tomorrow together with customers at home and abroad.
After Sales Service
SERVICES
Pre-Sales Service * Inquiry and consulting support.
* View our Factory. After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Warranty Period: One year or 1200 hours use.
Packaging: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
