High-Performance Energy-Saving CNC Bending Machine for Lightweight Materials

Product Description

High-Performance Energy-Saving CNC Bending Machine for Lightweight Materials
Product Features

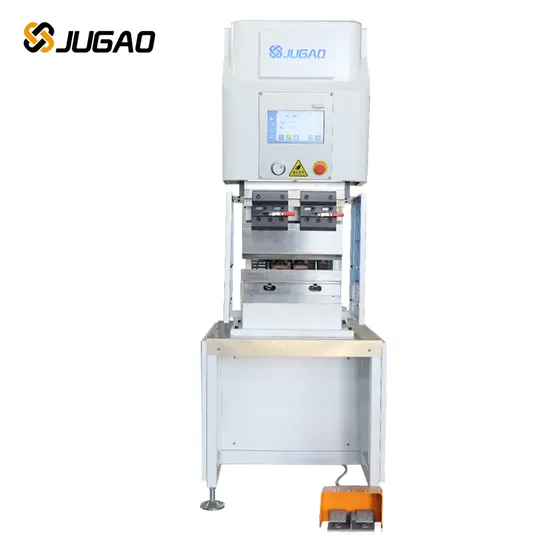

The EP series small electric press brake is a machine made by two sets of servo motors, each driving a heavy ball screw to drive the slider to move back and forth, and then driving the upper mold on the slider to apply force to the lower mold on the workbench, bending the metal plate according to the required shape and size.
The servo electric press brake is composed of a servo motor, screw transmission device, frame, slider, fixture mold, rear material, appearance, and control system. It is obvious that the servo electric press brake eliminates the hydraulic system compared to traditional hydraulic press brake, resulting in higher transmission efficiency and fewer factors affecting accuracy; It also reduces the waste oil generated by the hydraulic system, making it more environmentally friendly; The servo fully electric press brake power output is a servo system, which adjusts the output power according to load changes during operation, which will be more energy-saving.
The Mini Electric Press Brake will automatically output the proper power electrical energy according to the working conditions, so it is particularly power-saving. environment-friendly and environment protection: no need to use and replace the hydraulic pressing oil, make it free from the pollution of the environment by waste hydraulic pressing oil.
Product application scenarios
The equipment is widely used in the sheet metal, busbar, and hardware industries, and has certain advantages in small batch and sample production.
Technical parameters
Single cylinder series

Model	Pressurizing capacity(T)	Processing length(mm)	Bending stroke(mm)	Back gauge stroke(mm)	Number of axes	Spindle power (KW)	Fast return speed (mm/s)	Working speed (mm/s)	Opening height (mm)	Throat depth (mm)	Column spacing (mm)
EP03-02	3	230	120	150	2	2	200	<30	420	-	250
EP06-04	6	400	120	150	2	3	200	<30	420	150	370
EP12-06	12	600	120	150	2	5.5	200	<30	420	150	520
EP18-08	18	800	120	250	3	7.5	200	<30	420	250	770

Double cylinder series

Model	Pressurizing capacity(T)	Processing length(mm)	Bending stroke(mm)	Back gauge stroke(mm)	Number of axes	Spindle power (KW)	Fast return speed (mm/s)	Working speed (mm/s)	Opening height (mm)	Throat depth (mm)	Column spacing (mm)
EP12-06	12	600	120	150	3	8	200	<30	420	150	520
EP20-10	20	1050	120	300	4	11	200	<30	430	250	930
EP30-12	30	1250	150	500	4	13	300	<30	470	250	1150
EP35-12	35	1250	150	500	6	13	200	<20	470	250	1150
EP40-13	40	1300	150	500	6	15	200	<20	470	300	1200
EP40-16	40	1600	150	500	6	15	200	<20	470	300	1400
EP50-20	50	1600	150	500	7	30	250	<20	530	350	1400
EP60-25	60	2500	150	500	7	30	200	<20	530	350	2300

Main technical indicators and functions
1. Finite element analysis high rigidity design
The deformation and safety factor of the key mechanical parts of the machine tool are analyzed by finite element analysis to ensure the high rigidity requirements of the machine tool as a whole and the reliability of long-term use
2. ECO-10ES CNC system
The ECO-10ES CNC system is mainly used in the field of all-electric servo bending machines. It is a high-end CNC system tailored to market demand. It has powerful functions, rich built-in resources, and is a safe, efficient, energy-saving and green environmentally friendly product.
Product features of CNC system
Reliable performance
The CNC system ECO-10ES adopts a high-end CNC system development platform and advanced sheet metal bending special algorithms and motion control algorithms. The mainboard uses industrial-grade chips. The CNC system has passed EMC electromagnetic compatibility verification and high and low temperature environment adaptability testing.
High-speed and high-precision control
The CNC system adopts high-speed acceleration and deceleration algorithms and trajectory look-ahead algorithms. Before bending, the CNC system pre-plans the motion trajectory according to the speed and vector characteristics of the bending. While accelerating and decelerating at high speed, it ensures good bending accuracy and soft motion characteristics, so that high speed and high precision are effectively integrated!
High speed: The maximum fast forward speed of the Y axis is 200mm/s, and the maximum working speed is 30mm/s.
High precision: Repeat positioning accuracy is ±0.01mm.
Processing consistency: The influence of oil temperature changes on the consistency of the bending workpiece is avoided.
3. Energy saving and environmental protection
The CNC system ECO-10ES is mainly used in all-electric servo CNC bending machines, which is particularly energy-saving and green and environmentally friendly.
Especially energy-saving: The difference in electricity consumption between all-electric servo bending machines and electro-hydraulic servo bending machines is like the difference between variable frequency air conditioners and ordinary air conditioners. All-electric servo bending machines will automatically output appropriate power and electricity according to working conditions, so they are particularly energy-saving.
Green and environmentally friendly: There is no need to use and replace hydraulic oil, which stops the pollution of waste hydraulic oil to the environment.
4. Spindle power box
The spindle power box can transmit bending pressure, adopts heavy-duty ball screw and imported bearings, ultra-long life design, and sealed protection design to ensure that key components are not affected by external dust.
Main technical indicators and functions:
l Intelligent tool load monitoring ensures tool safety;
l Five-wire touch screen, high reliability, more than 10 million times of service life, simple and fast operation process;
l Automatic calculation function of sheet metal bending pressure, alarm prompt when exceeding the pressure limit range;
l "Direct" calculation function of back gauge position: According to the relevant size and plastic deformation of the sheet metal, the back gauge position is directly calculated according to the neutral layer;
l Continuous arc bending function;
Mold parameter library: Establish a mold parameter library for customers to facilitate customers to quickly call parameters for sheet metal bending;
