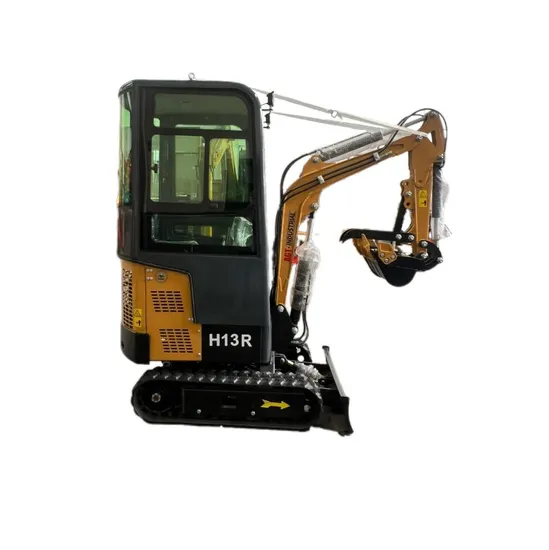

China Wholesale Cheap Thumb Bucket Crawler Hydraulic Small Excavator

Product Description

Product Description
Excavator Advantage
1,Small size, easy to transport, can be loaded onto light trucks or small trailers
2,Famous brand hydraulic system parts ensure stable quality.
3,Dynamic arm deflection design to meet the narrow working conditions, reinforced rubber tracks to protect the road, and extended hydraulic lines for various attachments.
4,Comfortable seat makes the operator easy to work.
5,It can be widely used in gardening, orchard, farming, basement remodeling, coal washing plant, paper mill and other waste material handling, can replace 4~5 manpower.

Product Parameters

Model Information Configuration Status √Standard, △Optional ,×None					H13R
Basic Performance Parameters
Working Weight(kg)				900
Bucket capacity(m³)				0.025
Travel speed low/high speed(Km/h)				0-1.8
Climbing ability(%)				30
A Maximum Digging Height(mm)				2550
B Maximum Unloading Height(mm)				1780
C Maximum Digging Depth(mm)				1644
E Max. digging radius(mm)				2960
Side Swing				×
Side Swing Angle (L/R)				×
undercarriage expansion				×
Equipment Body
J Overall Length(mm)				2240
K Overall Width(mm)				928
L Overall Height(mm)				2190
Bulldozer Width/Height				907/210
Engine
Engine Brand				Rato
Engine Model				R420D
Max. power(Kw)				8.6
Max. speed(rpm)				3600
Cylinders				1
Cooling method				Fan Cooling
Engine oil change quantity(L)				1.1
Fuel Type				Gasoline
Fuel Grade				92#
Theoretical fuel consumption(L/h)				0.5-1.2
Excavator tracks
△-Rubber (bandwidth*pitch*number of sections)				180*72*37
Configuration
Cab				√
Roof				×
Handrail				×
Thumb Clip				√
Counterweight				√
Tensioning Forms				Mechanical tensioning
Air Conditioning				×
Fuel tank
Fuel tank(L)				6.6
Hydraulic oil tan(L)				12

Packaging & Shipping

Package Size	2700*958*2400
Package Gross Weight	870

Company Profile

Our Advantages
FAQ
1. Are you a factory or trading company?
We are a factory. Our products are covered almost all farm machines and tractors parts, we can meet your any demands.
2.How can I get to your factory?
You can fly to Yancheng airport,we will pick you up.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.
4. Can you do the design for us?
Yes. We have a professional team having rich experience in design and manufacturing. Just tell us your ideas and we will help to carry out your ideas into perfect Rotary Tillers
5.Do you have stock for all items?
In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
6. What is your term of payment?
Usually T/T, L/C once place an order and sign contract, 70% balanced before shipping or against copy of bill of lading.
